2.7 Digital module EU5E-SWD-4DX
30 SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com
2.7.4 Installation

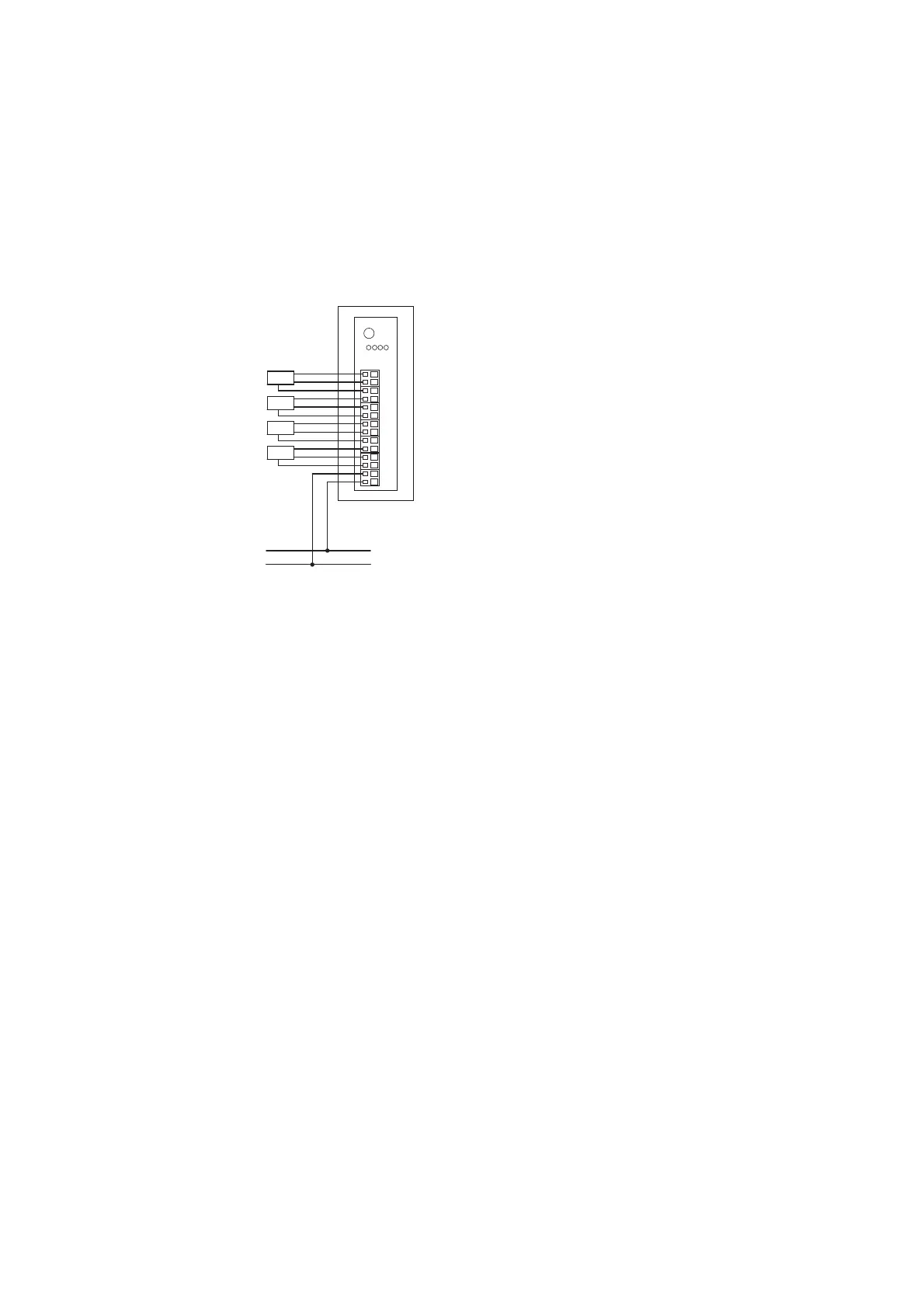

Figure 11: Connecting inputs and power supply
▶ Connect the sensors to the corresponding inputs I0 to I3. For the respec-
tive power supply, use terminals I- (0 V) and I+ (24 V).
▶ For a two-wire connection, connect the sensors to the corresponding
inputs I0 to I3 and I- (0 V).
▶ Connect the 24 V power supply for all modules.
2.7.5 Parameterization
Depending on the coordinator being used, the module's parameters will
need to be configured in the programming system or in the SWD-Assist plan-
ning and commissioning program.
2.7.6 Fieldbus-specific characteristics
Fieldbus EtherCAT
Please note the general information for configuring parameters
￫ Chapter 12 “Using SWD modules with the EtherCAT field bus”, page
247, particularly
￫ Section , „Device options“, page 247..
2.7.7 Programming
The module has two input bytes at its disposal.
￫
All 0 V connections (I
x
- ; x = 0, 1, 2, 3) are connected with each
other and with the module’s 0 V supply.
0 V
+
-
I0
24 V DC
+
-
I1
+
-
I2
+
-
I3
24 V
0 V
1
2 30I
I0–
I0+
I0
I1–
I1+
I1
I2–
I2+
I2
I3–
I3+
I3
