Eaton SmartWire-DT SWD Series User Manual

9 Interface module MCB-HK-SWD for circuit-breakers and residual current circuit-breakers
9.1 INTRODUCTION
SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com 213
9 Interface module MCB-HK-SWD for circuit-breakers and residual current
circuit-breakers
9.1 INTRODUCTION
MCB-HK-SWD interface modules are meant for use with miniature circuit-
breakers, residual current circuit-breakers, and residual current operated cir-
cuit-breakers with overcurrent protection. These modules are designed to
transmit the corresponding circuit-breaker's switch position indication (On,
Off, Tripped) via SmartWire-DT communication systems.
9.2 Surface mounting

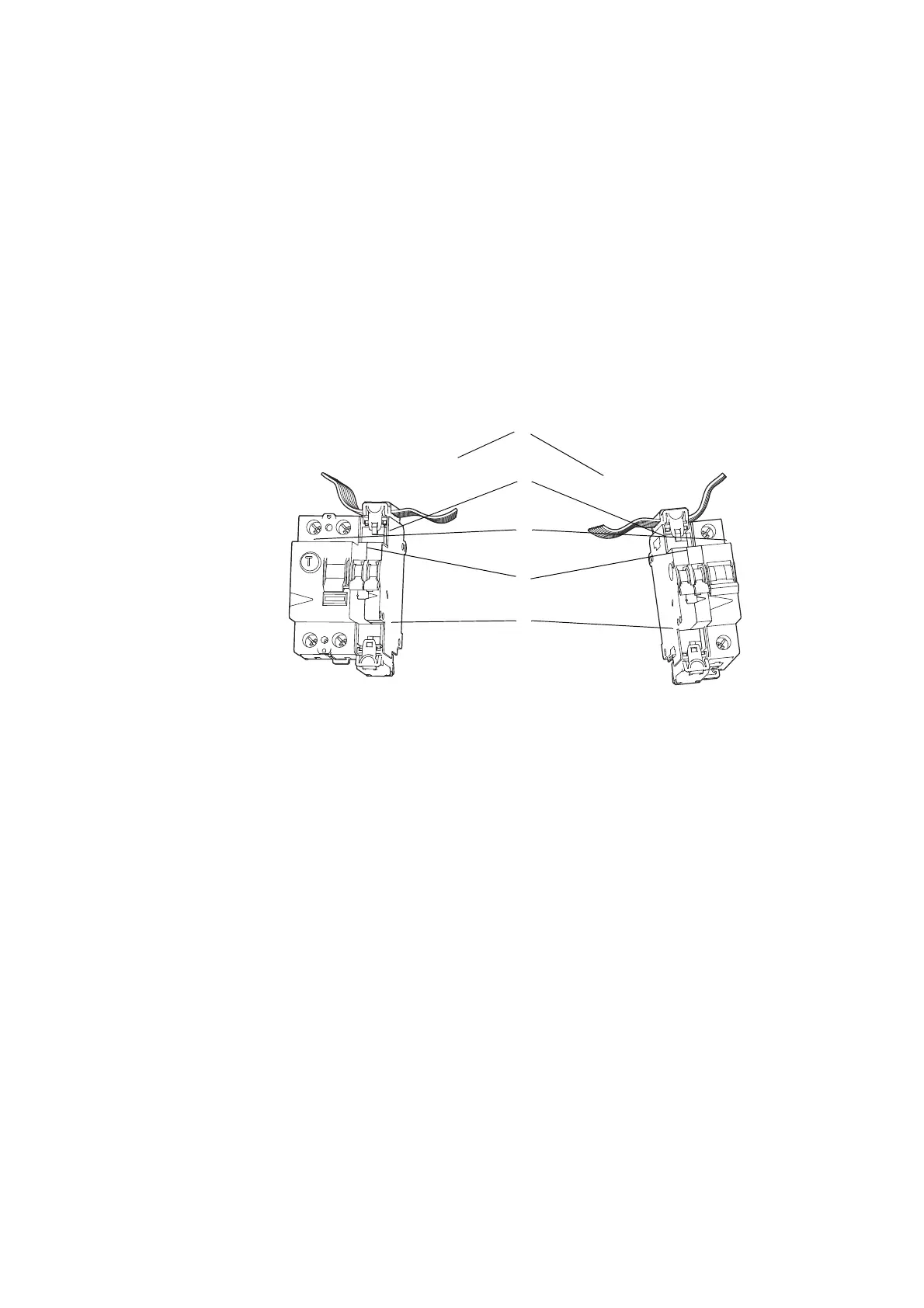

Figure 76: MCB-HK-SWD parts
a SmartWire-DT cable with external device plug
b SmartWire-DT interface module
c Residual current circuit-breaker (with left stop),
miniature circuit-breaker or residual current operated circuit-breaker with overcurrent protection (with right stop)
d SmartWire-DT diagnostics LED
e Covering cap
9.3 Engineering
MCB-HK-SWD interface modules are designed to be connected to miniature
circuit-breakers, residual current circuit-breakers, or residual current operated
circuit-breakers with overcurrent protection.
The connection to the SmartWire-DT ribbon cable is implemented via the
SWD device plug SWD4-8SF2-5. The connection can be established either to
the top or bottom of the interface module. The unused connector must be
covered with the included cap.
①
②
③
④
⑤
