7 Pilot devices M22-SWD…
7.3 M22-SWD base fixing
196 SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com
7.3.6 Device Status
The individual SmartWire-DT modules indicate their device status with the
aid of a diagnosis LED.

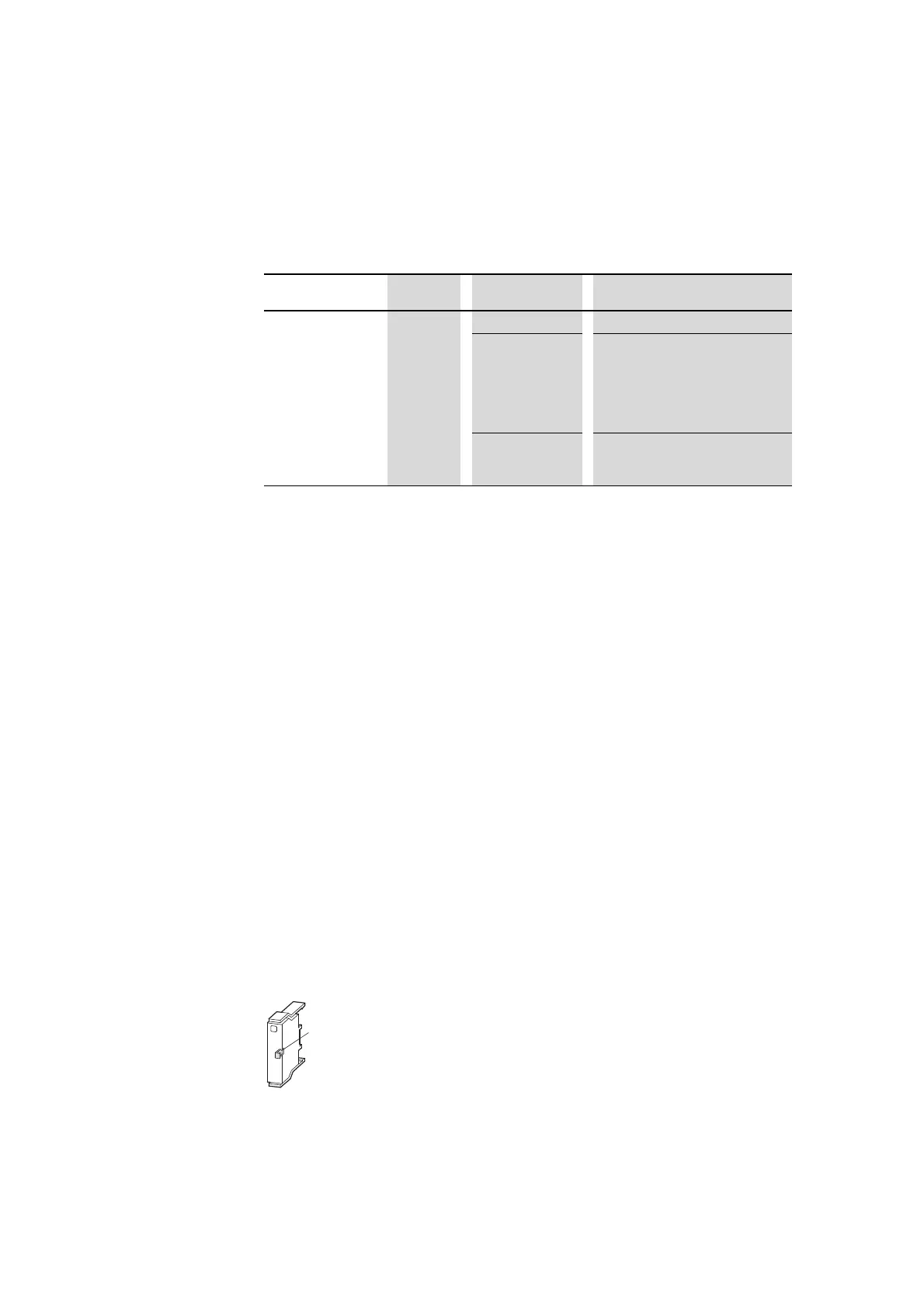

Table 54: Diagnostic messages of the SmartWire-DT status LED
7.3.7 Parameterization
Depending on the coordinator being used, the module's parameters will
need to be configured in the programming system or in the SWD-Assist plan-
ning and commissioning program.
7.3.8 Fieldbus-specific characteristics
Field bus Ethercat
Please note the general information for configuring parameters
￫ Chapter 12 “Using SWD modules with the EtherCAT field bus”, page
247.
7.3.9 Programming
The various function elements have specific input/output information that is
processed in the programming system. The meaning and scope are
described in the following.
7.3.9.1 M22-SWD-KC11
The function element has one input byte at its disposal.
Input points
Byte 0:
Designation Color State Message
SWD Green Continuous light Device is operating fault-free.
flashing (1 Hz) • addressing process in progress
• after gateway power On
• after actuation of the configuration
button on the gateway
• Module not in current configuration
• invalid type
flashing (3 Hz) Device reports a diagnostics.(￫ Section
"7.3.9 Programming", sub-point “Diagnos-
tics”.)
