2 I/O modules EU5E-SWD…
2.8 Digital module EU5E-SWD-4D4D
32 SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com
2.8 Digital module EU5E-SWD-4D4D
2.8.1 INTRODUCTION
The SmartWire-DT I/O module EU5E-SWD-4D4D provides four digital inputs
I0 to I3 and four digital outputs Q0 to Q3.
Diverse sensors can be integrated into the SmartWire-DT network via the
inputs.
The short-circuit proof outputs are used to drive actuators.
The inputs'/outputs' status is indicated with the help of LEDs.
The SmartWire-DT diagnostic LED is used to signal the network's/module's
status.
2.8.2 Surface mounting

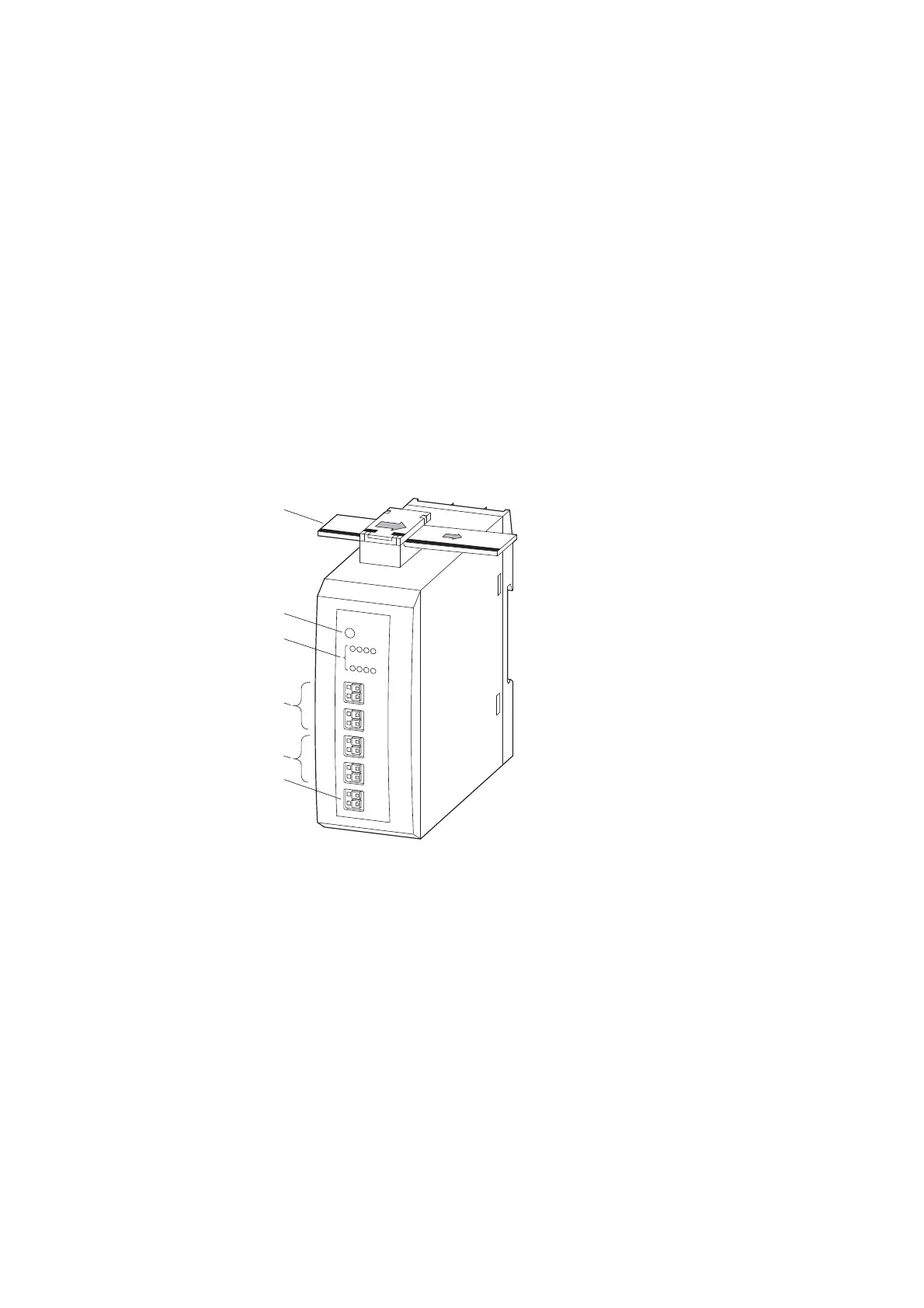

Figure 12: Connections of the modules EU5E-SWD-4D4D
2.8.3 Engineering
The maximum current draw for each output is 0.5 A. The outputs are short-
circuit proof. On short circuit the SmartWire-DT diagnostics LED flashes and
the diagnostic bit is set in the user program. When the short circuit is
removed, the supply voltage is automatically applied again.
a SmartWire-DT cable with external device plug
b SmartWire-DT diagnostics LED
c Status LEDs of the inputs and outputs
d I0 – I3 (inputs)
e Q0 – Q3 (outputs)
f 0-V-24-V connection
