10 SmartWire-DT universal module M22-SWD-NOP and M22-SWD-NOP-C
10.3 Engineering
SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com 221

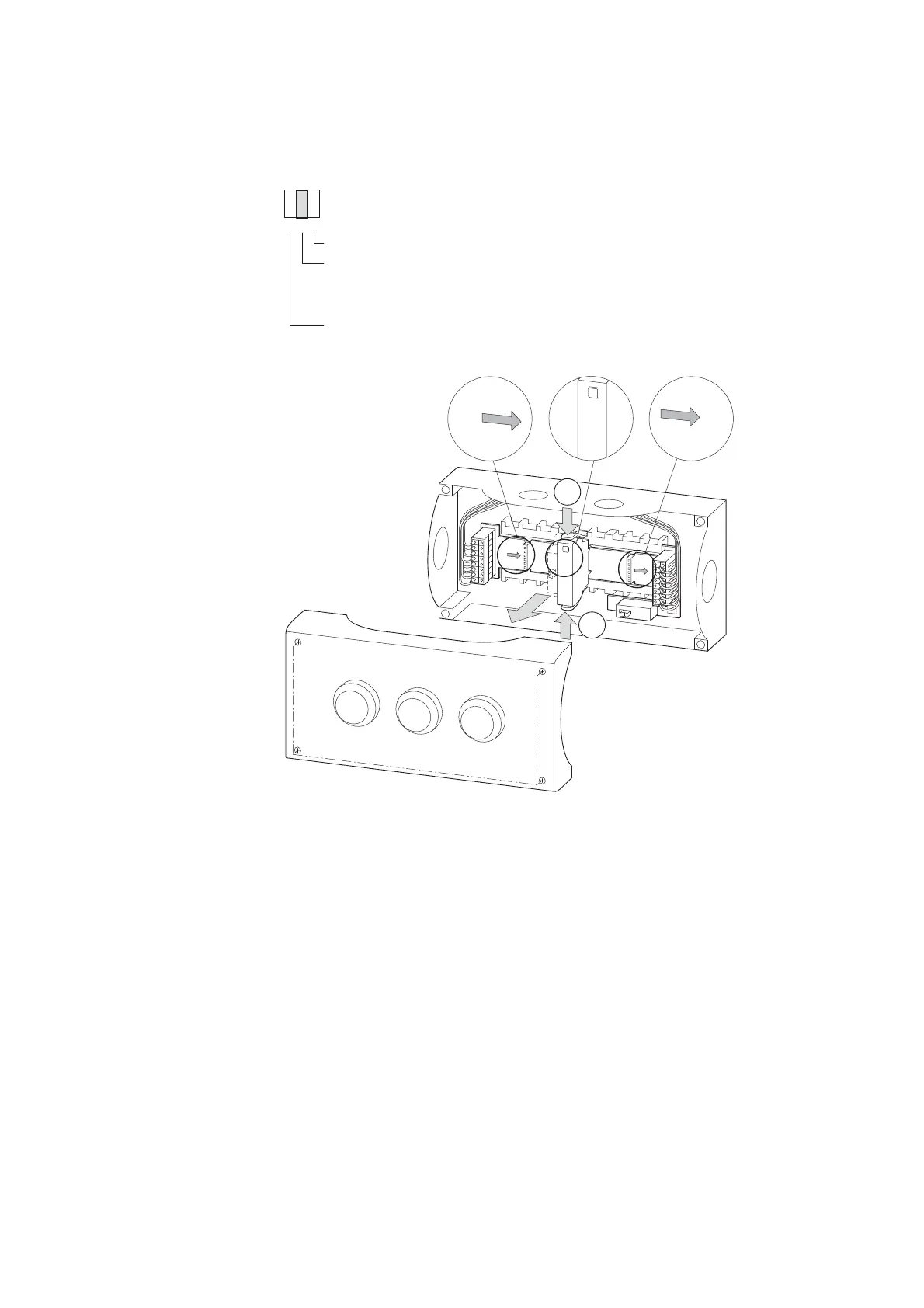

Figure 81: M22-SWD-NOPC in enclosure M22-I3
10.3 Engineering
In the PLC’s control configuration, program the SmartWire-DT modules that
will be required at a later date in addition to the ones that will be installed and
used immediately. For modules that are to be replaced with a universal mod-
ule, parameter “Replacement by universal module” must be set to
“allowed” in the Module Properties dialog In the control configuration. You
can then fit a universal module in place of this SmartWire-DT module in the
network.
In the user program scan whether the the configured SmartWire-DT module
or a universal module is fitted. Bit 7 (SUBST) in the first input byte is set if a
universal module is fitted in place of the software-configured module. The
program flow must be controlled according to this information.
M22-(C)K(C)...
M22-(C)K(C)...
M22-SWD-KC11
M22-SWD-LEDC...
M22-SWD-SEL-8-10
M22-SWD-NOPC
2 3 1
2 3 1
1
3
2
1
3
2
1
3
2
IN
OUT
OFF
ON
IN
OUT
PUSH!
PUSH!
