Eaton SmartWire-DT SWD Series User Manual

11 Interface for NZM compact circuit-breakers
11.2 Surface mounting
228 SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com

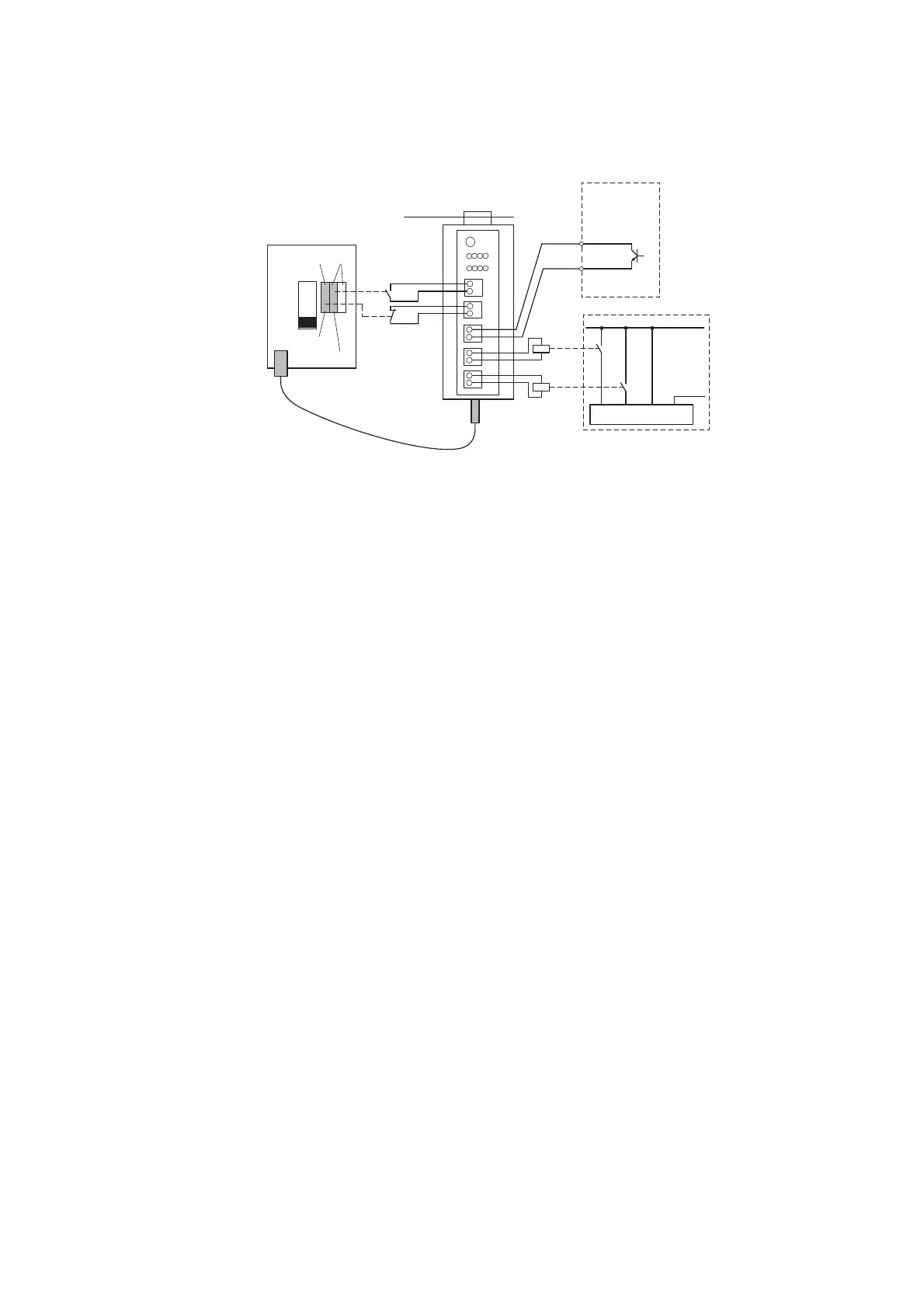

Figure 87: NZM-XSWD-704 connections to circuit-breaker
a SmartWire-DT connection
b Data cable NZM with NZM-XSWD-704
c Auxiliary contacts in NZM
d XMC energy metering device (external)
e Remote operator
The max. cable length of the inputs and outputs is 2 m.
The SmartWire-DT external device plug with an adapted SmartWire-DT con-
necting cable is connected to the NZM-XSWD-704 module via connection ①.
￫
For detailed instructions on how to connect the SmartWire-DT
external device plug (SWD4-8SF2-5) to the 8-pin SmartWire-DT
ribbon cable, refer to the "Installing SWD4-8SF2-5 external
device plugs" section in manual MN05006002Z-EN (previously
AWB2723-1617en).
OFF
ON
70 71 72 74
0 V, N
+, P
GND
24 V
I0
24 V
I1
S0+
S0-
Q0
0 V
Q1
0 V
③
①
④
②
⑤
≦ 200 mA
≦ 200 mA
NZM-XR(D)
NZM
HIA
HIN
M22-K01
M22-K10
