112 WaveRIDER
5.1.13 Print Options
The Print Options command is where additional Data Table statistics can be selected to
be printed along with the Data Graph. Additional documentation can also be selected
that will be printed on a second page.
To select print options:
1) Select the Print Options command from the File menu and the following dialog
box appears.

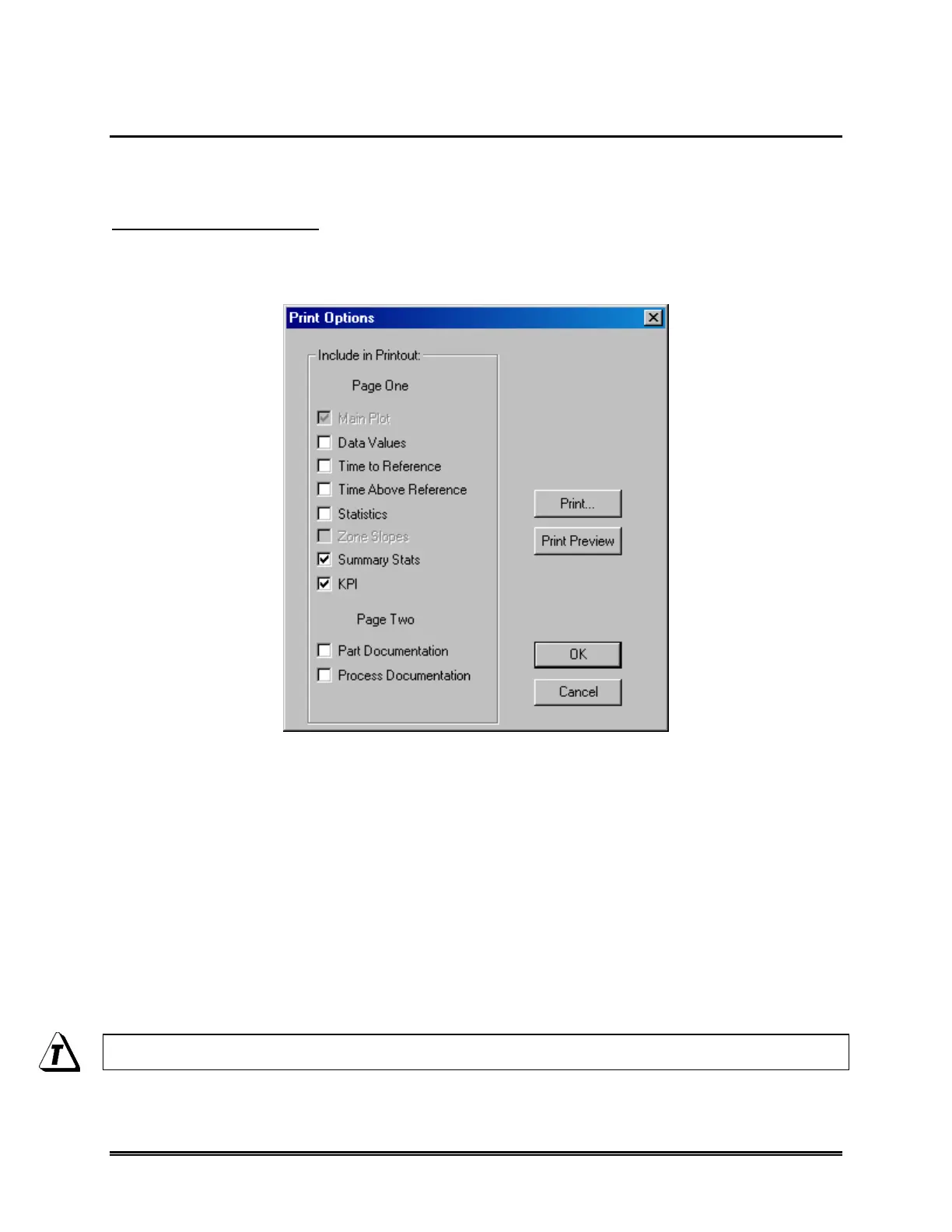

Figure 5- 21: Print Options Dialog Box
2) Click the check box beside desired Statistic(s) to be printed along with the Main
Plot.
3) Click the check box beside desired documentation to be printed on a second
page.
Click the Print command button to close the print options process and initiate
printing.
Click the Print Preview command button to view the report appearance.
4) Click the OK command button to accept or Cancel command button to leave the
print options command without making any changes.
Only five Statistic(s) can be printed at one time.
This command can also be used by pressing CTRL + I.
