4.4.2 M.O.L.E. Status
The M.O.L.E. STATUS box contains information about the status of the M.O.L.E. while it
collected the data the selected run.

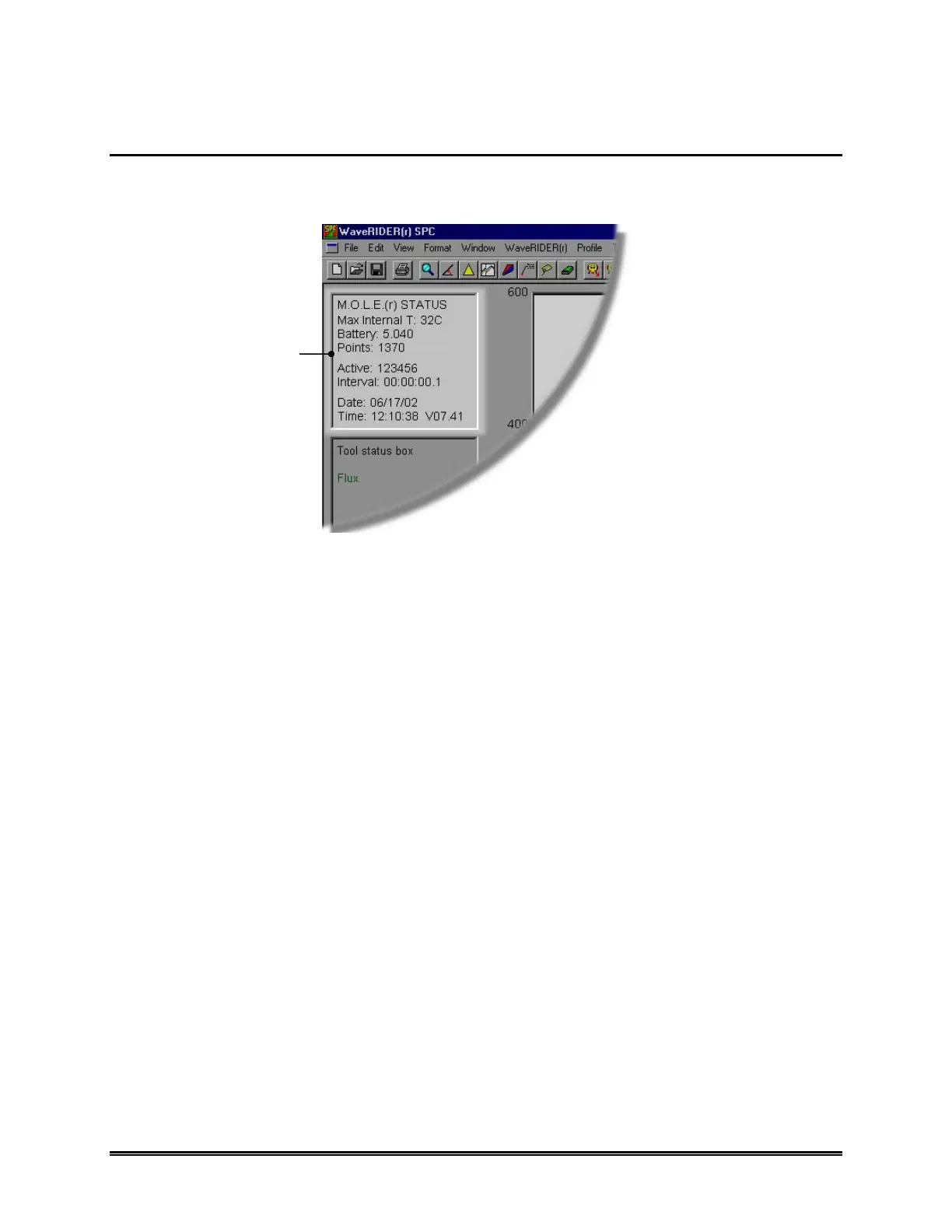

Figure 4- 19: M.O.L.E. Status Window
Max Internal T: This is the highest internal temperature logged during the displayed
profile and is displayed in degrees Celsius. If the highest temperature logged is in
the specified internal operating temperature range of is 0-54C, it appears in
BLACK. When the internal temperature is 55-64C, it appears in YELLOW
indicating that the M.O.L.E. has reached the Warning zone and is approaching
the maximum recommended operating temperature of 65C. If the internal
operating temperature is above 65C, it appears in RED indicating that the
maximum internal operating range has been reached.
Battery: The battery voltage measured during the upload of that run. The nominal
range for normal operation is 5.1 to 4.7V.
Points: The number of data samples recorded at the configured interval.
Active: Indicates which channels were active during the experiment. A number
means an active channel; a “O” is an inactive channel. An "X" means an open or
out of range T/C was detected on that channel during the data run.
Interval: Time between data shown in hours, minutes, seconds, and tenths of
seconds data points: hh:mm:ss.t.
Date: Date of last data point logged.
Time: Time of last data point logged.
V: Firmware Version displays the operating code of the M.O.L.E. (This is where
customer service will ask you to find the version number for the M.O.L.E.)
