APPENDIX D: WR SPC Parameter Definitions

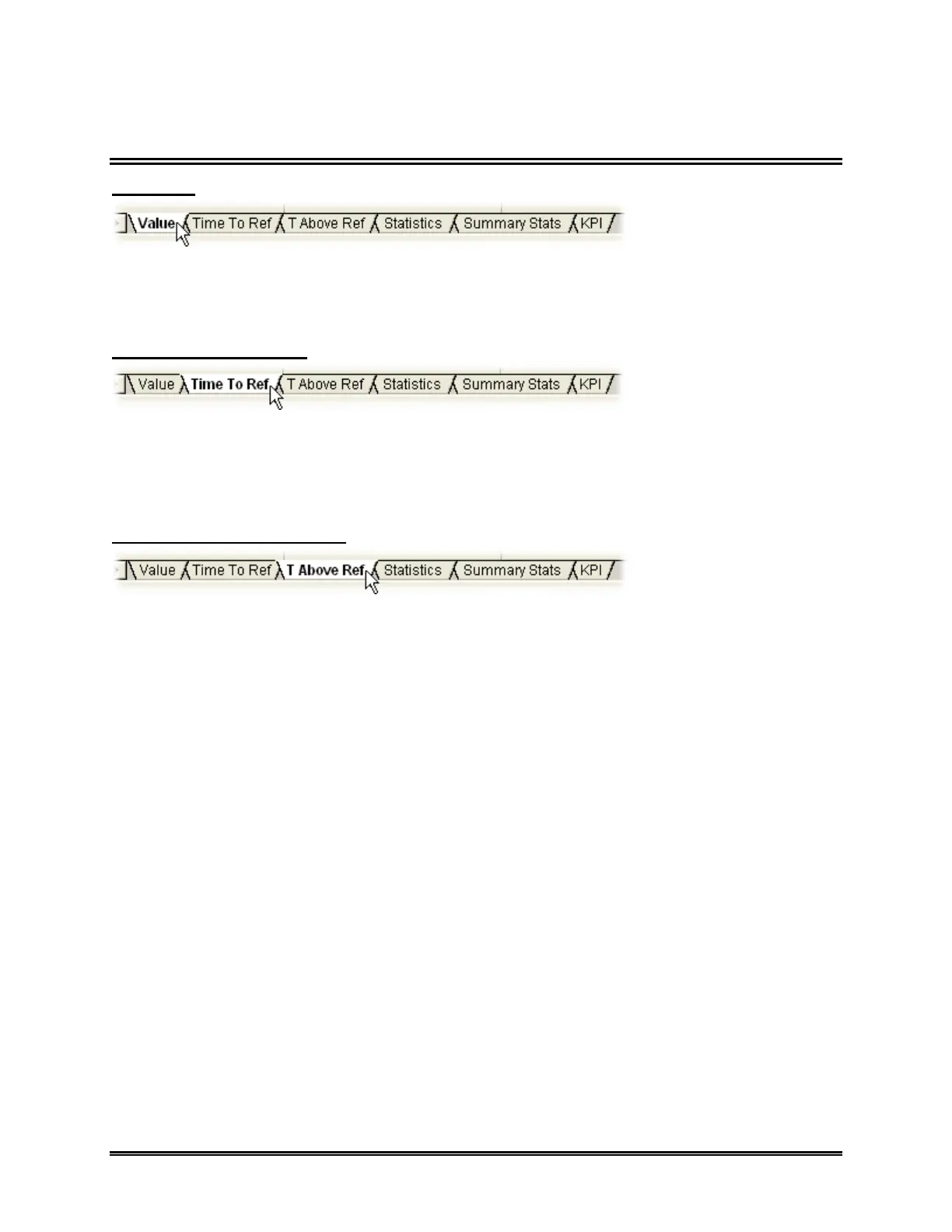

Value tab
C1, C2, C3, C4 indicate the point, time relative, time absolute, or distance (depending
on the Units setting) on the X axis where the vertical cursors are set, respectively. The
values below are the measured values for each channel at that position.
Time to Reference tab
Low, Medium, and Hi are the temperatures set in the Temp Ref Lines dialog, if set. The
values below these are the times in hours, minutes, and seconds (hh:mm:ss) that it
takes for each channel to reach the respective reference value starting from the process
origin.
Time Above Reference tab
Values shown in this tab are taken from the graph at it’s present level of magnification.
X-axis values outside of view are not included in the calculations. Y-axis values,
however are included regardless of magnification level.
Low, Medium, and Hi are the temperatures set in the Temp Ref Lines dialog, if set. The
values below these are the times in hours, minutes, and seconds (hh:mm:ss) that each
channel spent at or above the reference value, if at all. All time above the reference
values are accumulated in the total no matter where they occur.
