ECD WaveRIDER Series User Manual

56 WaveRIDER
4.4.6 Sensor Locations
The location for each sensor labeled in the Data Table. The color and description
indicates which Data Plot on the Data Graph it designates. The top three sensor
location descriptions are the Coupon Top, Coupon Solder, and Coupon Bottom sensors.
The bottom three are the A, B and C speed sensors.

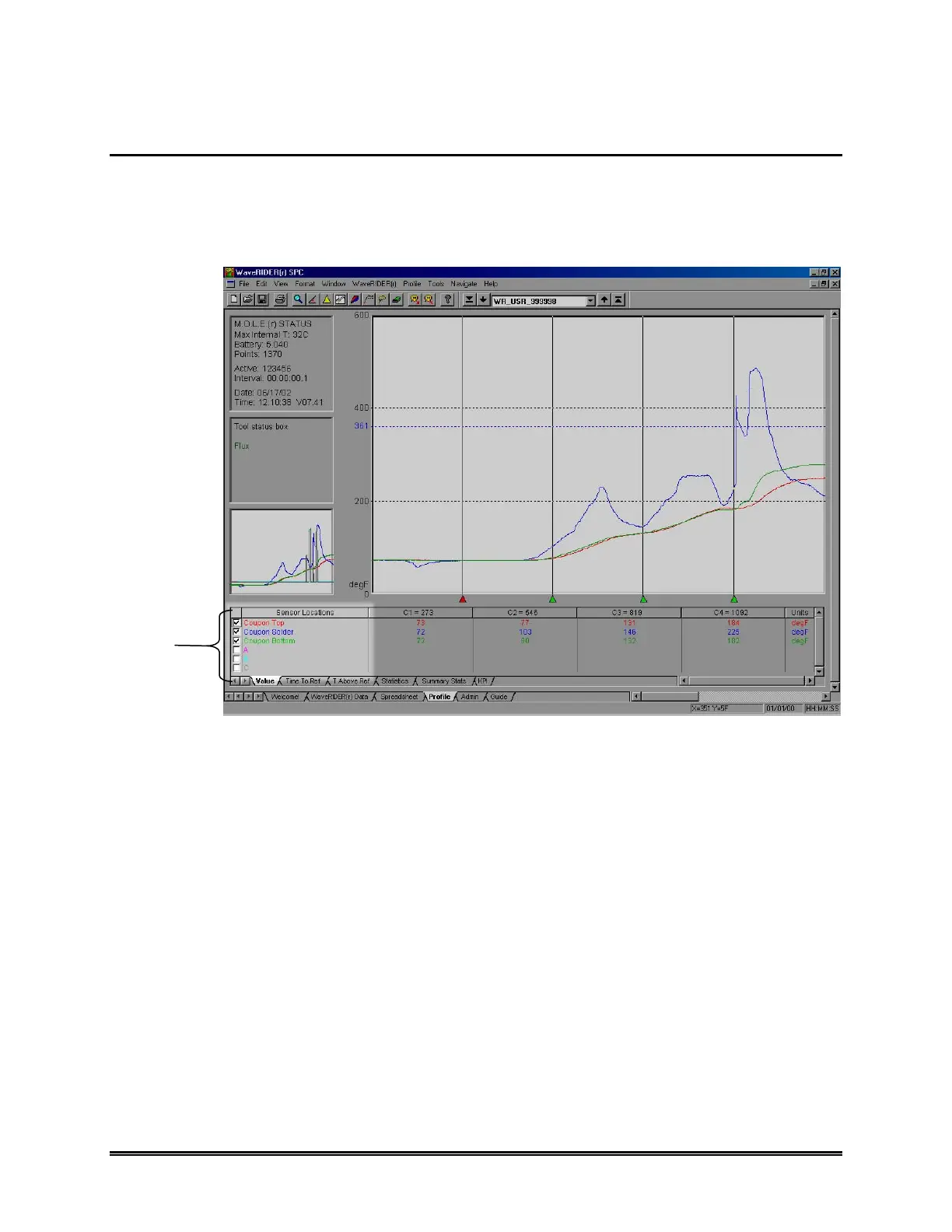

Figure 4- 27: Sensor Location Descriptions
SENSOR
DESCRIPTIONS
