4.5.4 Specification and Control Limit Cells
There are cells to the right of each parameter for specifying an LSL (lower specification
limit) and an USL (upper specification limit) for each parameter. The user can also
specify an LCL (upper control limit) and UCL (upper control limit) to be applied to a SPC
chart.
 LSL and USL Cells
These limits notify the user if the parameter is above or below the LSL or USL during a
data run. When a parameter is below the user specified LSL, it appears on the
WaveRIDER Data worksheet in blue and will be underlined. When a parameter is
above the user specified USL it appears on the WaveRIDER Data worksheet in red and
will be underlined.

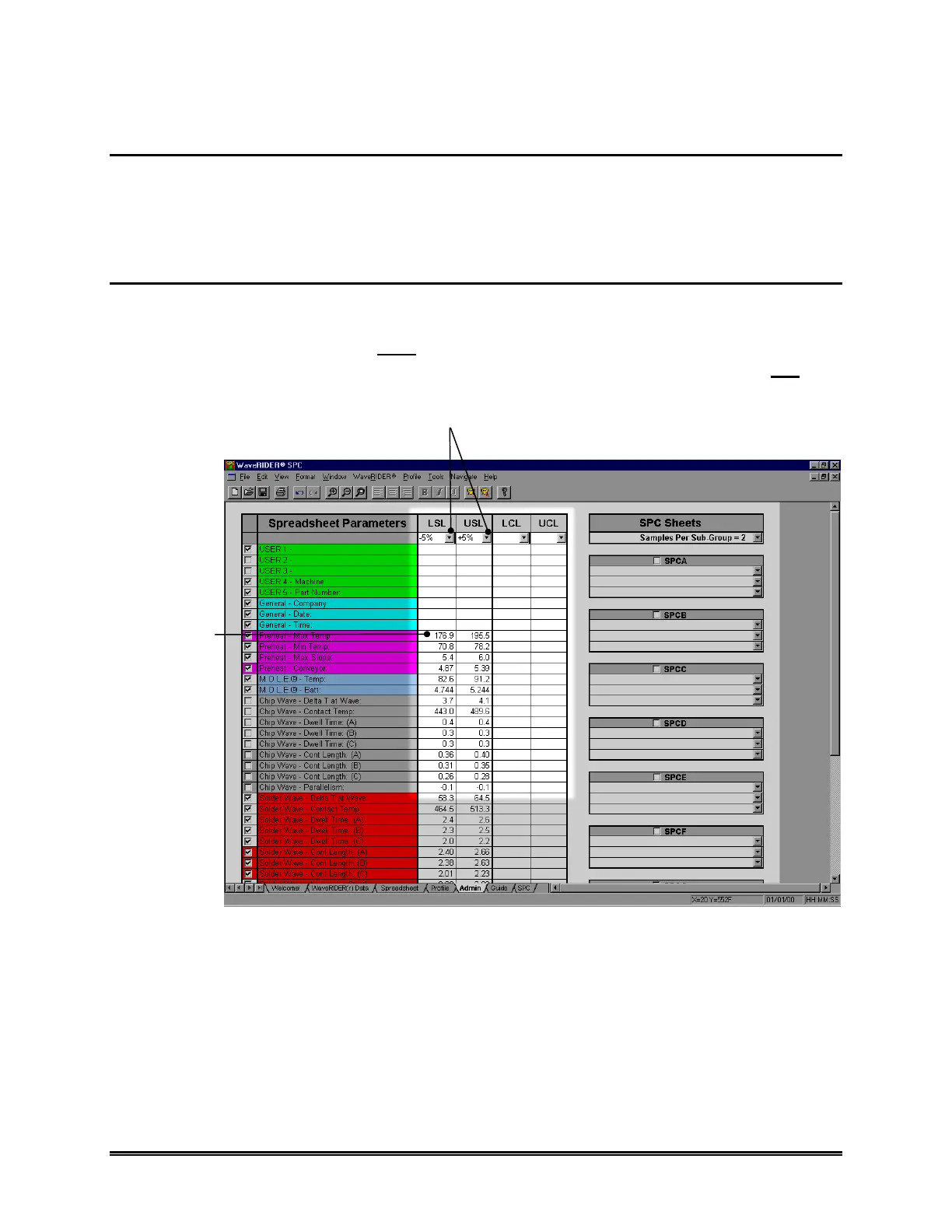

Figure 4- 45: User Specified Specification Limits
USER
CONTROLLED
LSL & USL
LSL & USL
CELLS
