WaveRIDER 141
5.8.4 Overlay Tool
The Overlay tool displays a second Data run profile for comparison with the currently
displayed Data run.
To compare two Data Plots:
1) Click the Overlay tool from the Tools menu. A list box of data files uploaded into
the opened workbook appears.
2) Select a data run file to overlay on the original by clicking it.
The data file will be inserted at the same process origin and automatically scaled to the
same Y-axis with the Overlaid file name displayed in the Tool status box. The original
Data Plot remains as solid lines while those added for comparison are dashed.
The dashed “Overlay” Data Plots are the same color as the original Data Plots.

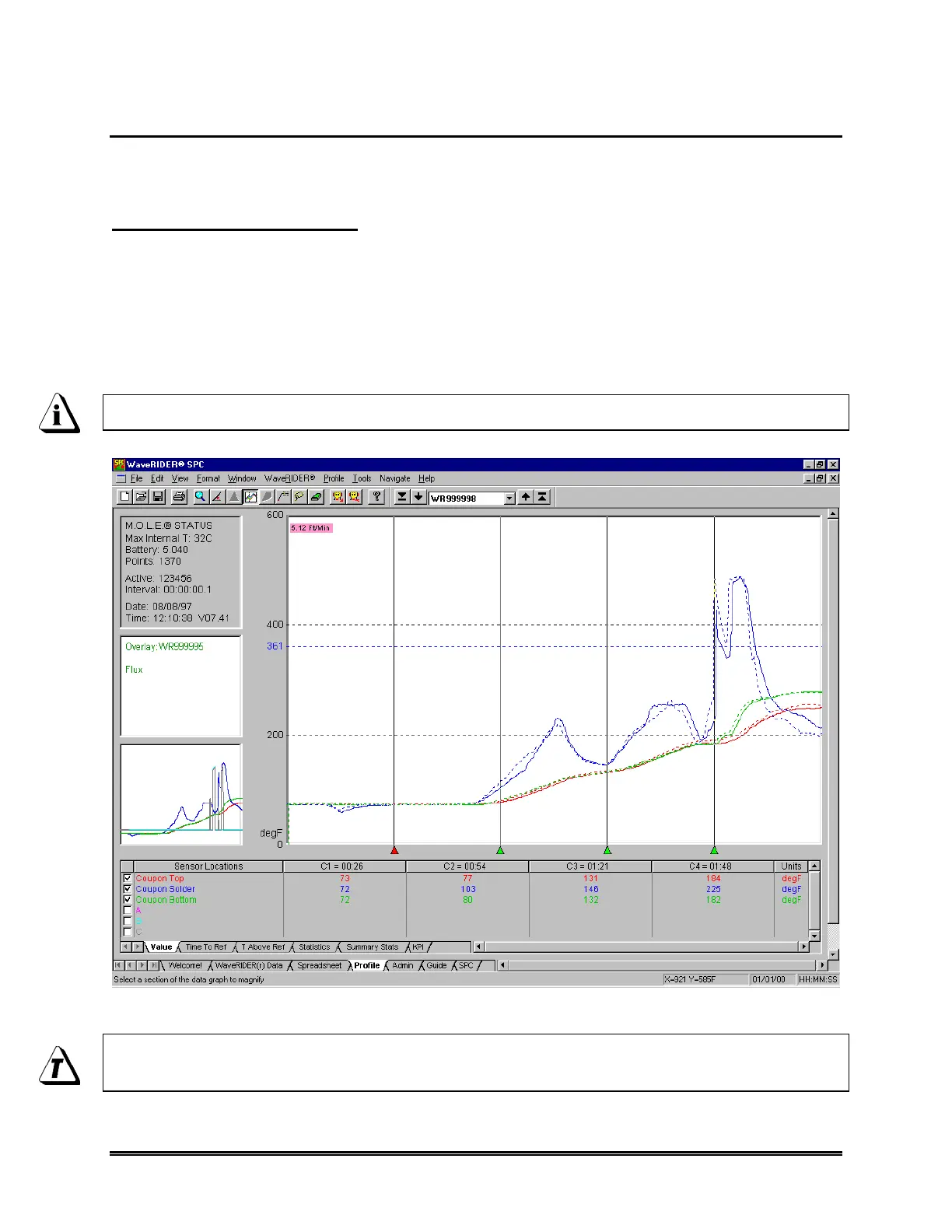

Figure 3-10: Overlay Tool
To remove the overlaid Data Graph from the original Data Graph select the
Overlay tool again or press the right mouse button.
