6.2 RIDER Coupon Replacement
To install a replacement RIDER coupon, the old or damaged coupon must first
removed. Use the following steps to remove and replace the coupon:
1) Unplug the Male Type “K” thermocouple connectors from the female connectors.
2) Loosen the coupon guides by unscrewing the four black screws.
It is recommended to clean the accumilation of flux that may have built up in the
coupon support groove.
3) Slide the replacement coupon assembly into the bottom coupon support grove.
4) Replace the coupon guides and align them with the coupon support holes.
5) Place the four screws in the holes and tighten them snugly.
6) Plug the three Type “K” male coupon thermocouple connectors into the three
Type “K” female coupon thermocouple connectors.

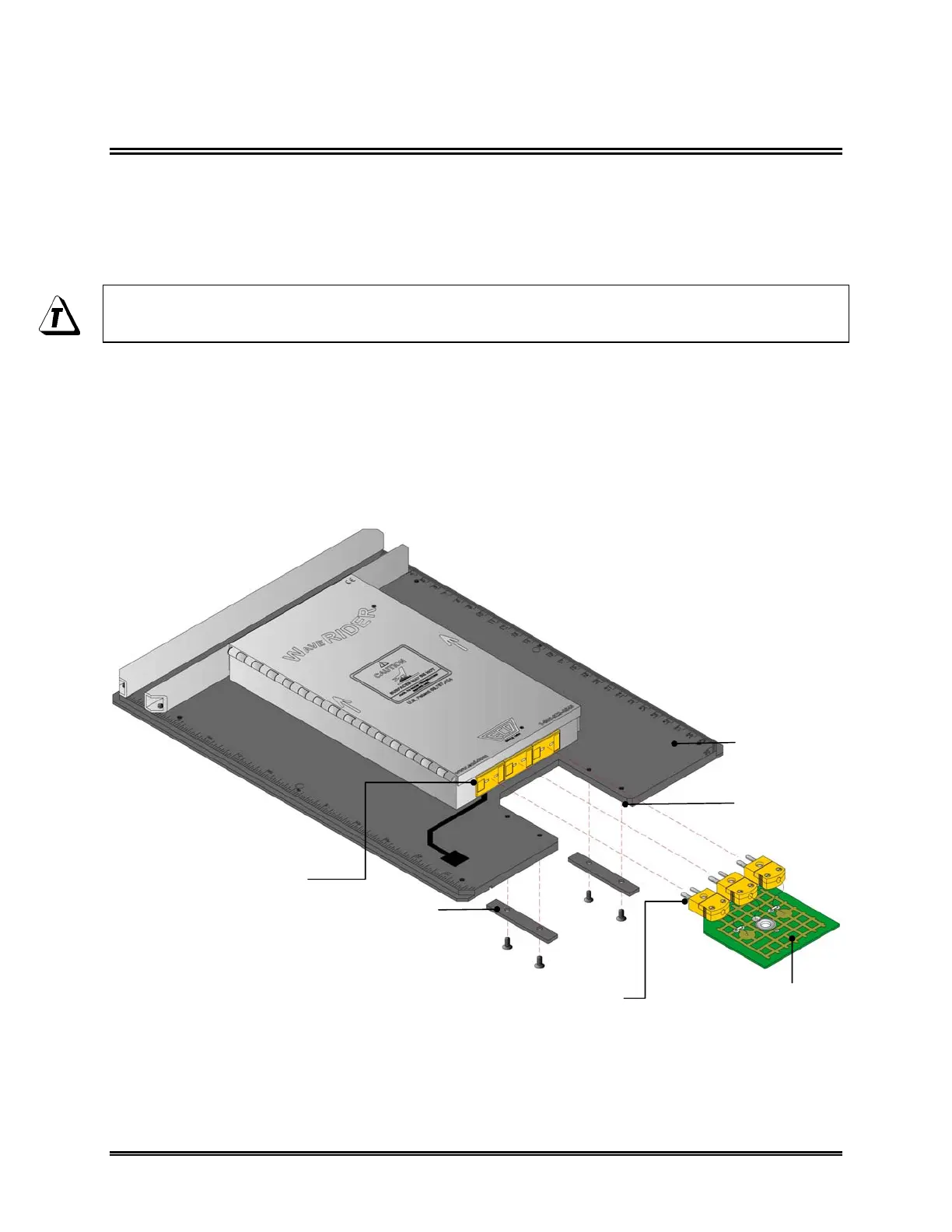

Figure 5-51: Coupon Replacement
RIDER
COUPON GUIDES
COUPON
COUPON
SUPPORT
GROOVE
TYPE “K” MALE COUPON
T/C CONNECTORS
TYPE “K” FEMALE COUPON
T/C CONNECTORS
