WaveRIDER 3

Internal Features:

 Connector bridge: This is where the M.O.L.E. plugs into the WaveRIDER so it

can collect data from the RIDER sensors.

 Extractor handle: This handle assists in the removal of the M.O.L.E..

 Configuration plug: This plug configures the M.O.L.E. to operate in

“WaveRIDER” mode.

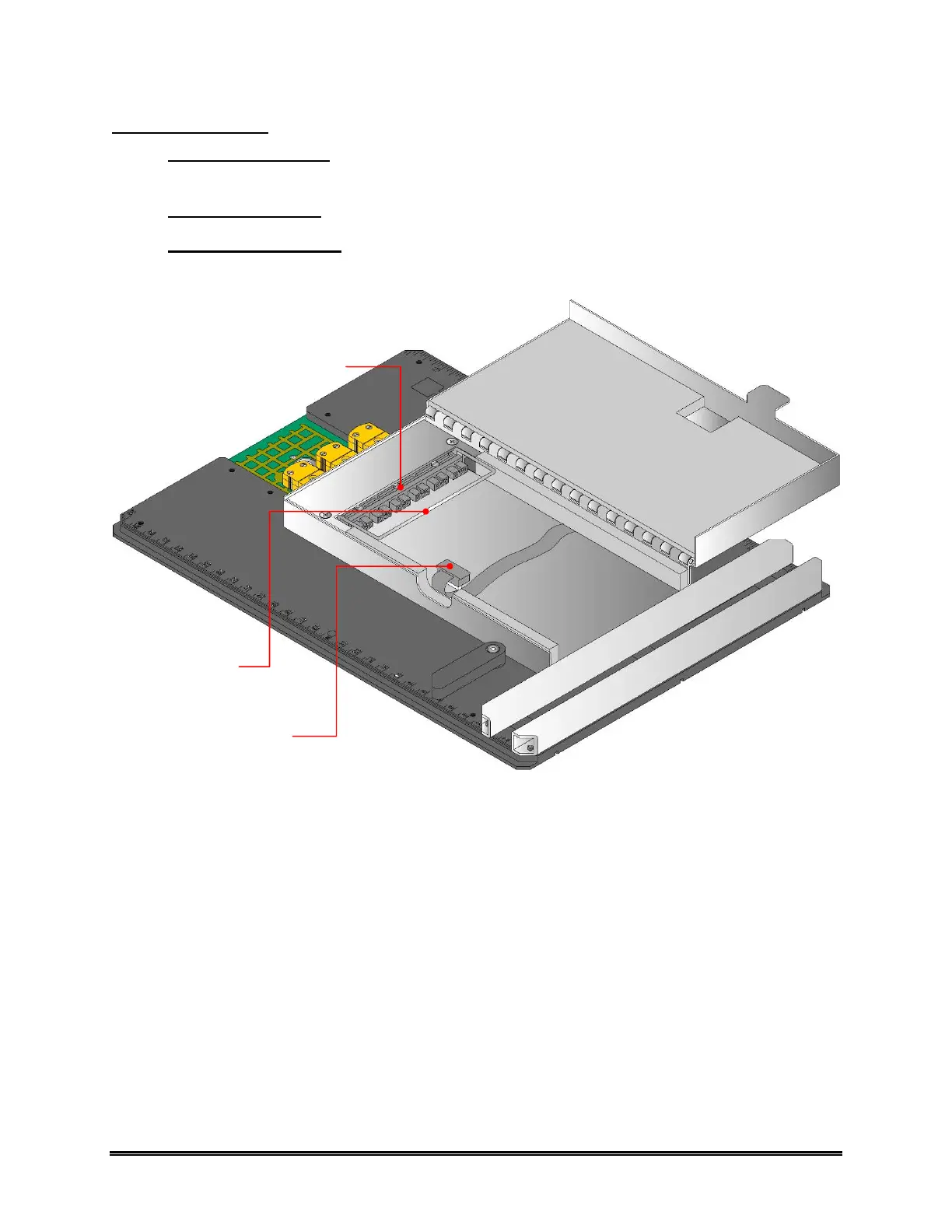

Figure 1- 3: WaveRIDER Internal Features

CONNECTOR BRIDGE

CONFIGURATION PLUG

EXTRACTOR HANDLE
