WaveRIDER
177
Time above Temperature / Peak Slope
is the Slope between the point where the
profile rise above the Temperature
and the Profiles Peak temperature.

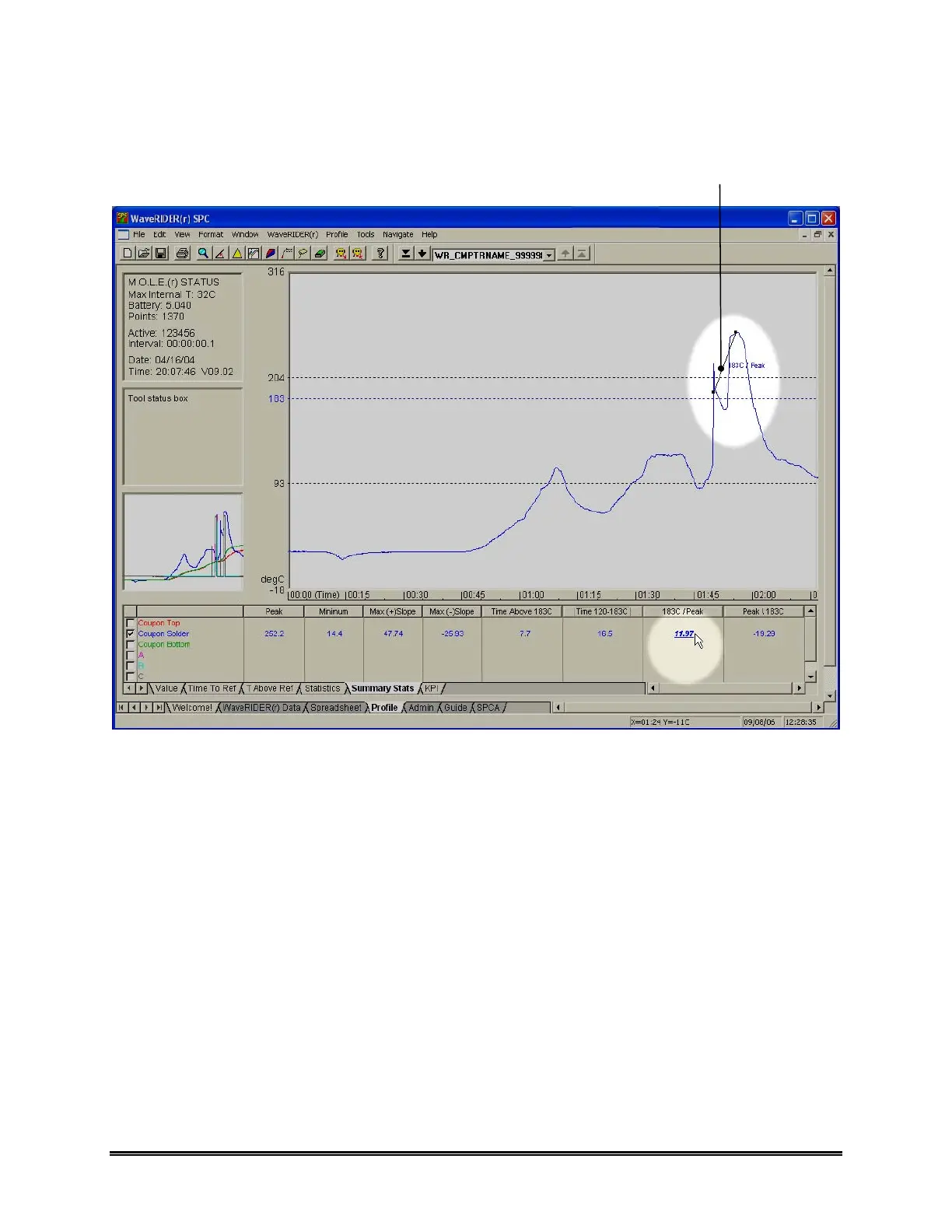

Figure B-2: Time Above Temp / Peak Slope
TIME ABOVE TEMP
/ PEAK SLOPE
187
189
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
8
Terms Used in this Manual
9
Fonts Used in this Manual
10
Computer Hardware Requirements
10
Operators Safety Information
11
1 System Description
12
Rider Description
13
Coupon Description
15
Software Description
16
WR SPC Workbook Features
16
Standard WR SPC Worksheet Functions
18
Worksheet Tabs
18
Selecting Worksheets
18
Split-Bar
18
Worksheet Tab Scroll Arrows
18
Scrollbars
19
2 Setup
20
Charging the Power Pack Battery
20
Software Installation
22
Starting the Software
22
Communications Setup
23
Installation
27
3 Operation
28
Data Collection
28
Transferring Data
33
Expert Matrix
34
Cleaning the Rider
38
Storing the RIDER
39
4 Worksheet Descriptions
40
The Welcome Worksheet
40
Welcome Worksheet Menus and Toolbar
41
Company/Report Name
42
Waverider Data Worksheet
43
Waverider Data Worksheet Menus and Toolbar Buttons
44
Interpreting the Waverider Data Sheet
45
Data Coloring and LSL / USL
46
Spreadsheet Worksheet
47
Spreadsheet Menus and Toolbar Buttons
48
Parameter Groups
49
Parameter Labels
51
Parameter Units
51
Data Run Rows
52
Selected Run
52
Filters
53
Statistics
56
Profile Worksheet
57
Profile Menus and Toolbar Buttons
58
Status
59
Tool Status Box
60
Magnify Map
61
The Data Table
62
Sensor Locations
67
Channel Check Boxes
68
Status Bar
69
Data Tabs
71
The Data Graph
79
Administration Worksheet
87
Administration Menus and Toolbar Buttons
88
Spreadsheet Parameters
89
Parameter Check Boxes
89
Specification and Control Limit Cells
90
SPC Sheet Boxes
94
Guide Worksheet
99
SPC Worksheet
100
Menus & Toolbar
101
X-Bar Chart
102
R Chart
103
Statistics Box
104
Renaming SPC Worksheets
105
5 Menu and Tool Commands
106
File Menu
106
New Workbook
106
Open Workbook
108
Close Workbook
108
Import
109
Save Workbook
110
Save Workbook as
110
Save as Text
111
Save as Text Archive
111
Load Text Archive
112
Configuration
113
Preferences
114
Page Setup
122
Print Options
123
Page Header / Footer
124
Print Preview
125
Print
126
Report Setup
127
Print Report
127
Send to Mail Recipients
128
Recent Files 1, 2, 3, Etc
129
Exit
129
Language
129
Edit Menu
130
Undo
130
Redo
130
Copy
130
Paste
130
Remove Row
131
Hide Row
131
View Menu
132
Zoom in
132
Zoom out
132
Data Table Tabs
132
Format Menu
133
Bold
133
Italic
133
Underline
133
Alignment (Left, Center, Right)
133
Window Menu
134
Cascade
134
Tile
135
Open File
135
Waverider Menu
136
Configuration Wizard
136
Set M.O.L.E. Clock
138
Waverider Settings
139
Read Waverider Data
140
Profile Menu
141
Process
142
Scaling
143
X-Axis Units
144
Temp Ref Lines (Temperature Reference Lines)
145
Profile Colors
146
Tools Menu
147
Magnify Tool
147
Slope Tool
149
Peak Difference Tool
151
Overlay Tool
152
3-D View
154
Measure Tool
156
Notes Tool
157
Erase Object(S)
158
Erase All
158
Navigate Menu
159
Help Menu
160
Help
160
ECD on the Web
160
About Waverider
160
6 Service and Calibration
161
Service Troubleshooting
161
RIDER Troubleshooting Steps
162
RIDER Coupon Replacement
163
Checking the Coupon Thermocouples
164
How to Get Additional Help
164
APPENDIX A: Specifications
165
APPENDIX B: Statistical Process Control (SPC) Background Information
166
APPENDIX C: Measurement Definitions
172
APPENDIX D: WR SPC Parameter Definitions
179
APPENDIX E: Waverider Accuracy and the Influencing Factors
192
APPENDIX F: Pull-Down Menus & Toolbar Buttons
199
APPENDIX G: Waverider Accessories
202
