▪ horizontally or verc
ally, with the high-vacuum ange on top and in any
orientaon in between or
▪ horizontally or vercally, with the high-vacuum ange on the boom and in any
orientaon in between (INV versions)

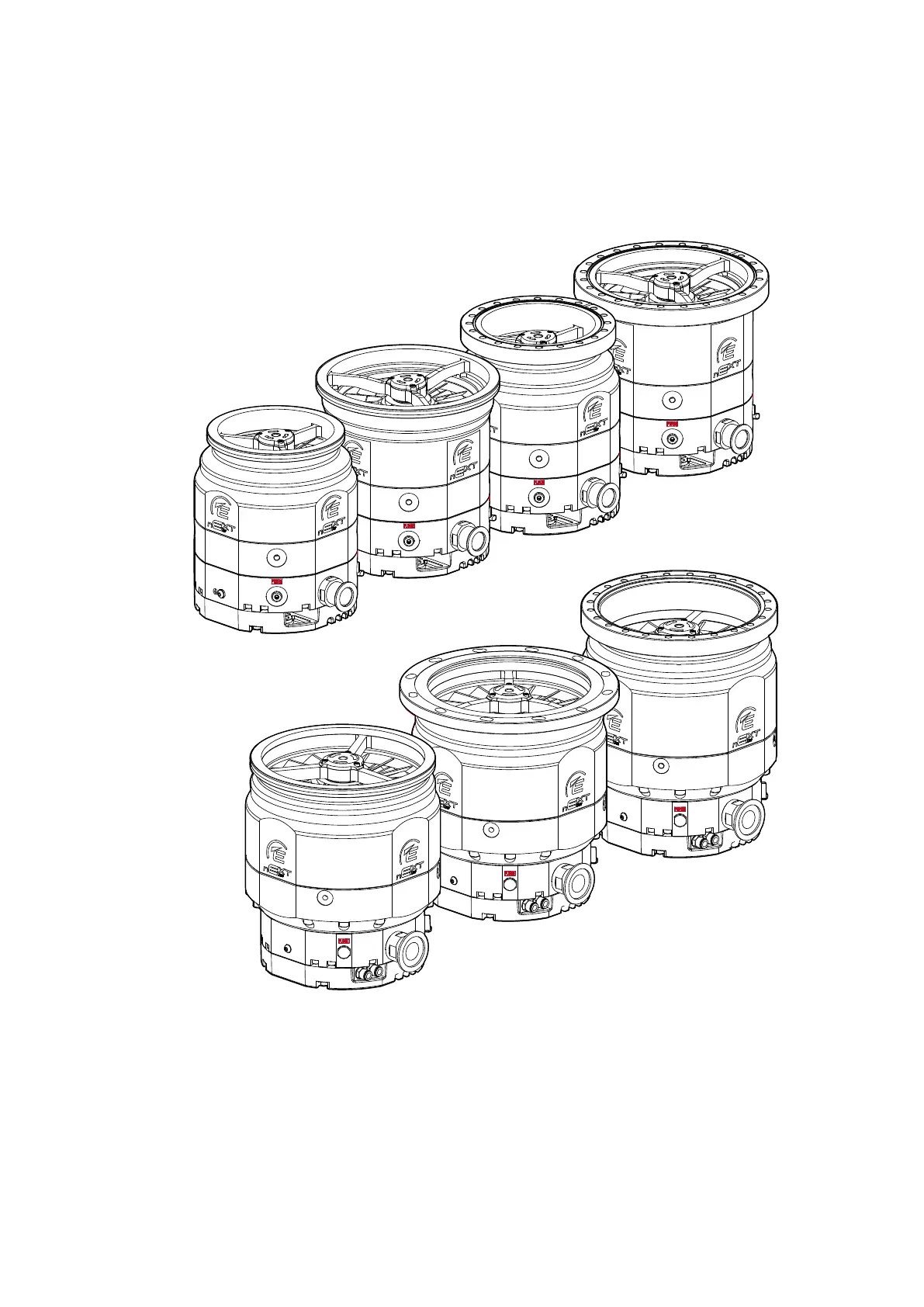

Figure 1 nEXT Model overview
nEXT930D DN 200 CF
nEXT730D DN 160 CF
nEXT930D DN 200 ISO-K
nEXT730D DN 160 ISO-K
BC-0031-B
nEXT1230H DN 200 CF
nEXT1230H DN 200 ISO-F
nEXT1230H DN 200 ISO-K
3.2 Motor controller
The motor c
ontroller contains the drive electronics that controls the pump operaon,
the TAV vent valve and the air cooler.
