Edwards nEXT730D User Manual

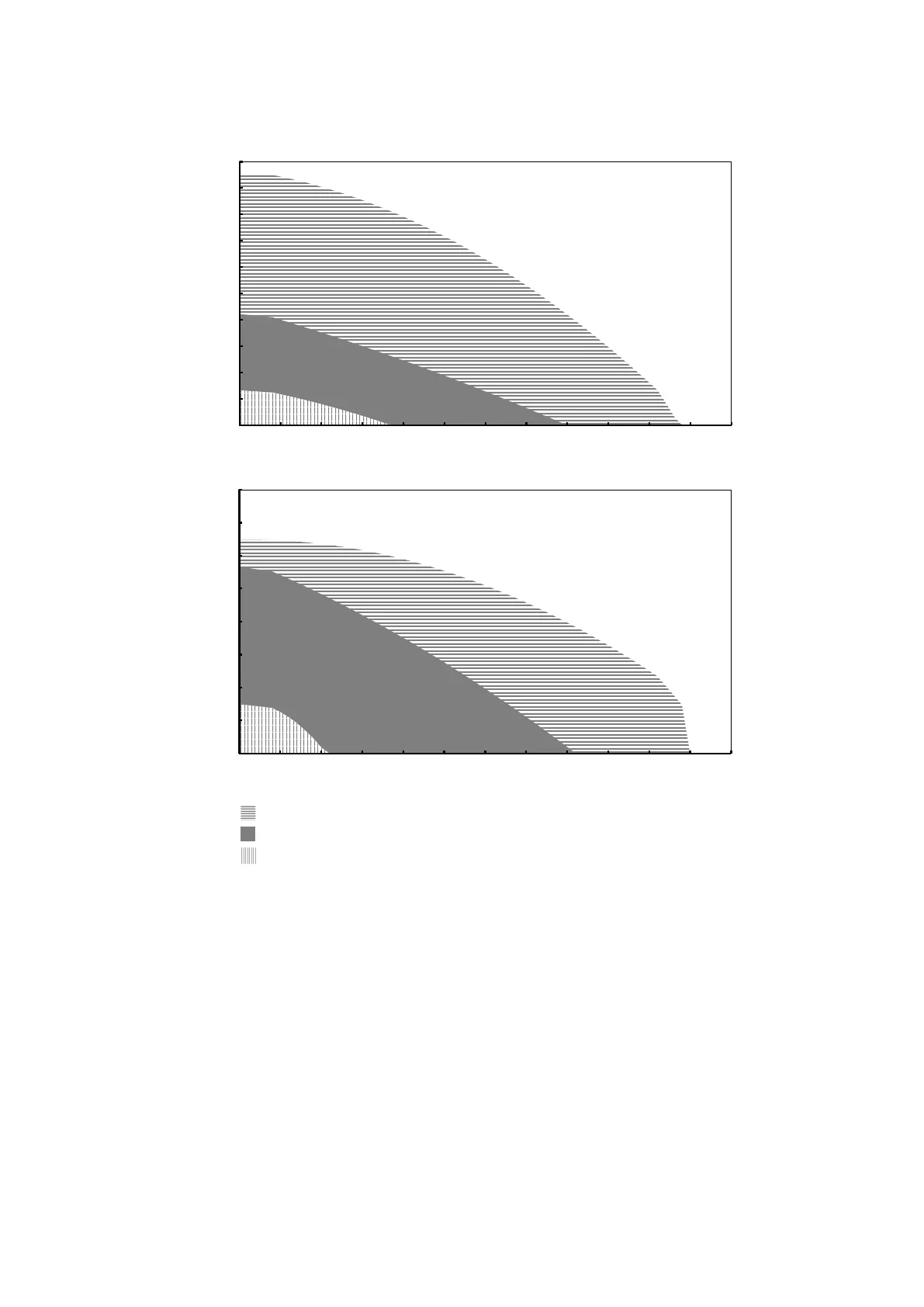

Figure 10 Cooling requirements for nEXT1230H
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
0.5 1.2 2.7 4.2 5.7 7.2 8.7 10.2 11.7 13.2 14.7 17.0 19.5
Gas flow in mbarl/s
Pressure in mbar
nEXT 1230H - for Nitrogen
0.0
Water cooling 15 °C, 100 l/h
Air cooling, ambient temperature 24 °C
Water cooling 35 °C, 50 l/h
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
0.5 1.2 2.7 4.2 5.7 7.2 8.7 10.2 11.7 13.2 14.7 17.0 19.5
Gas flow in mbarl/s
Pressure in mbar
nEXT 1230H - for Argon
0.0
BC-0042-B
4.8 Electrical data
The nEXT pumps c
an be driven by either the customers system or by the Edwards TIC
Turbo Instrument Controller, TIC Turbo Controller or TAG Controller.
If using the customer system, an appropriate, pre-approved, UL/CSA rated 48 V d.c.
power supply should be used. The size of the power supply required depends on the
applicaon and the power limit congured in the nEXT pump. The power limit seng
determines how quickly the pump ramps up and dictates the size of the power supply
required. If serial communicaons is available, the power limit seng of the nEXT pump
can be selected.
Refer to Table: Logic interface technical data for the maximum power limit sengs for
nEXT pumps. If the applicaon requires rapid cycling of the pump, faster ramp mes can
08/2021 - ©Edwards Limited
Page 34B8J200880_D
300812671_002_C3
B8J200880_D - Technical data
