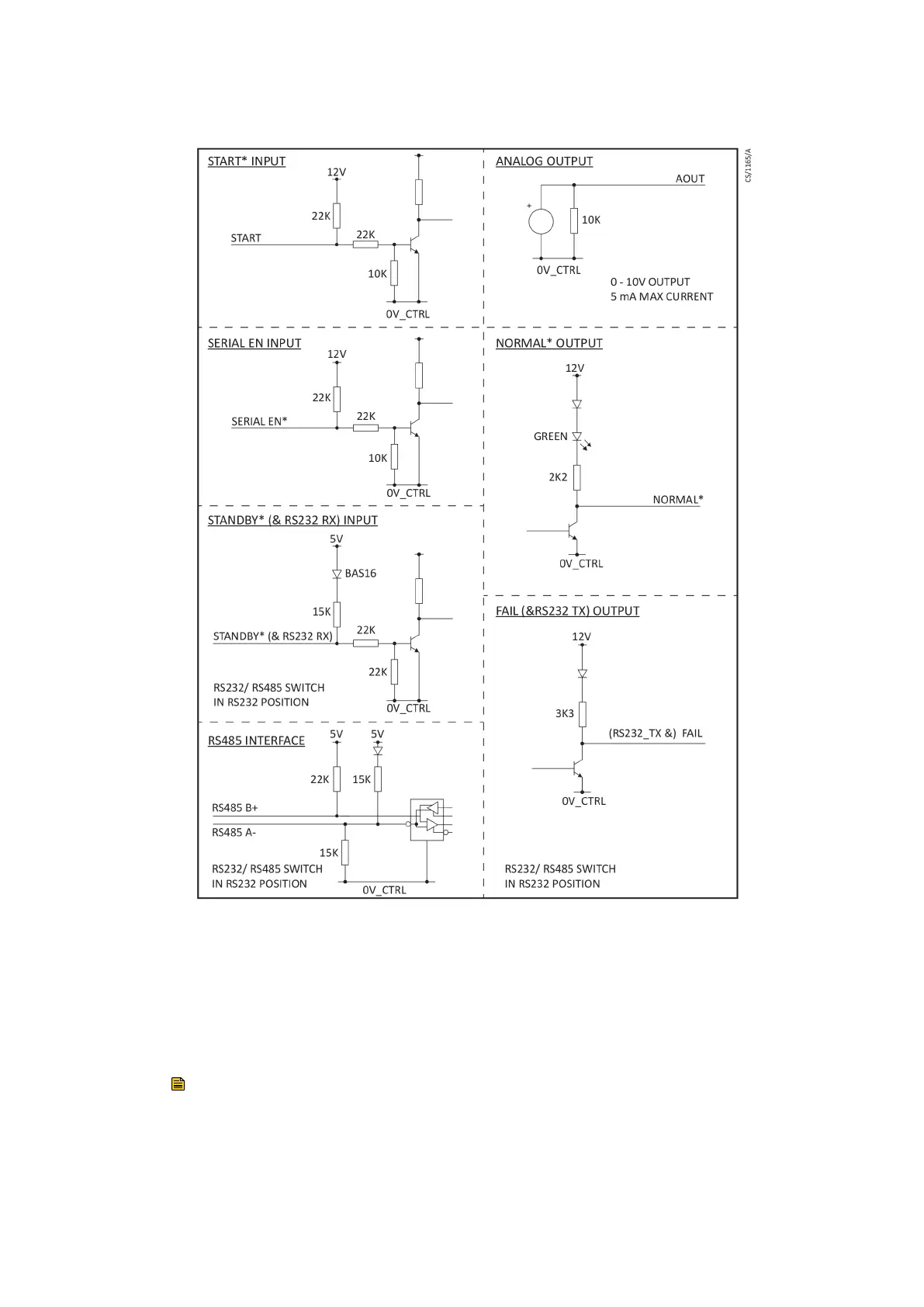

Figure 11 Interface circuits for nEXT turbo pump controllers
4.10 Serial protocol
The serial int
erface link is set to 9600 Baud, 8 bits, 1 stop, no parity with no
handshaking. The commands are made up from printable ASCII characters. The
maximum message size that can be sent is 80 characters, including start and end
characters.
Note:
All alphabecal charact
ers must be sent in upper case format. The response may contain
lower case characters.
08/2021 - ©Edwards Limited
Page 37B8J200880_D
300812671_002_C3
B8J200880_D - Technical data
