Edwards nEXT730D User Manual

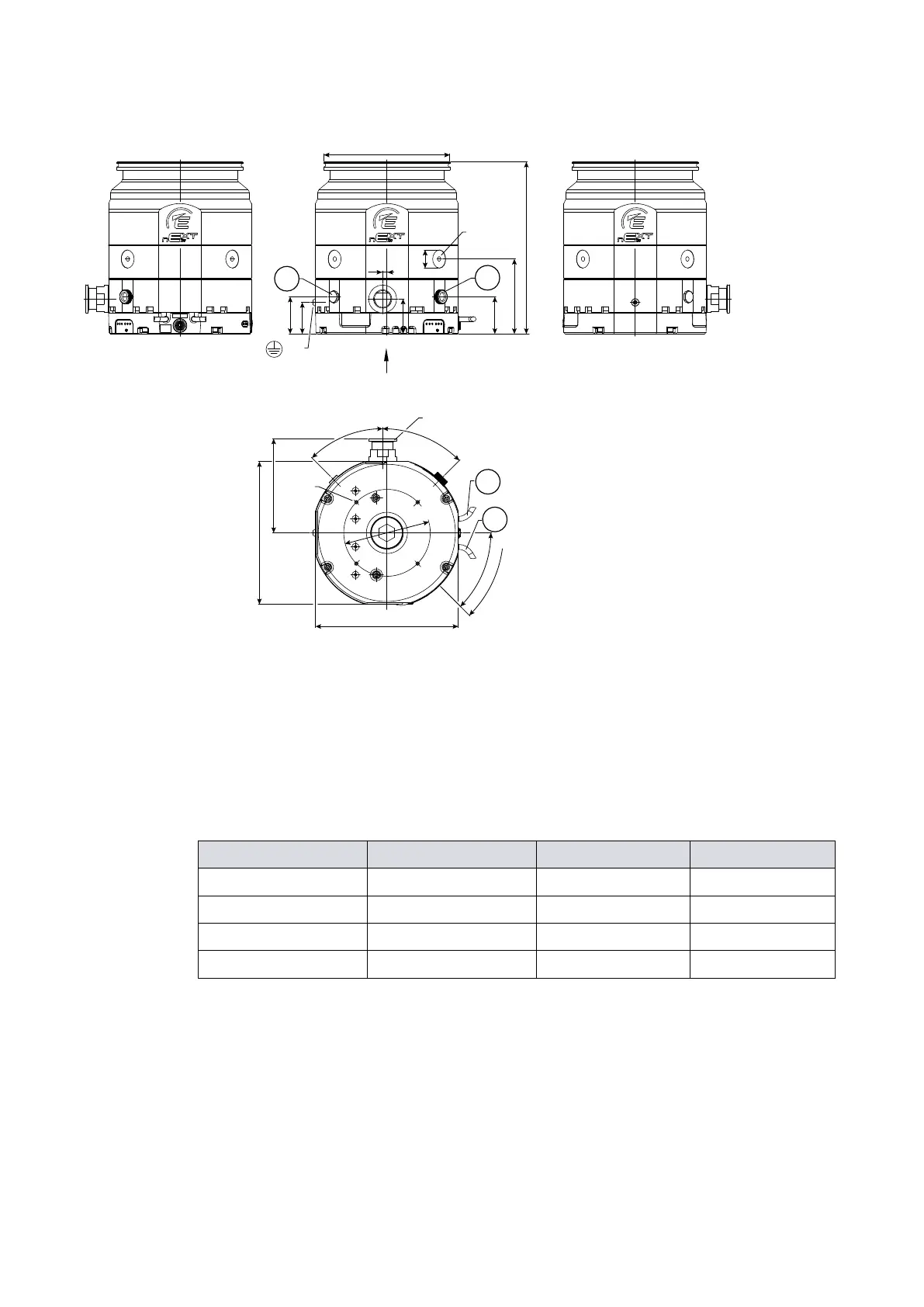

Figure 5 Dimensional drawing for nEXT730-930D
Ø 26
45
53
53
H
45°
45°
Ø 124
204
204
107
50
134.5
6
45°
M6
4x
M8 - 14
X
DN 25 KF
4x
M5 - 8
4x90° = 360°
X
Ø A
BC-0032-B
1
4
2
3
All measurements indicated are shown in mm
1. PURGE G 1/8"
2. VENT G 1/8"
3. 48 V d.c. power supply cable, 0.6 m long incl. plug
4. Control interface cable, 0.95 m long incl. plug
1.1.
Table 5 Dimensions in mm
DN H A
nEXT730D 160 ISO-K 246 180
nEXT730D 160 CF 257 202.5
nEXT930D 200 ISO-K 241.3 240
nEXT930D 200 CF 246.8 254
08/2021 - ©Edwards Limited
Page 27B8J200880_D
300812671_002_C3
B8J200880_D - Technical data
