Edwards nEXT730D User Manual

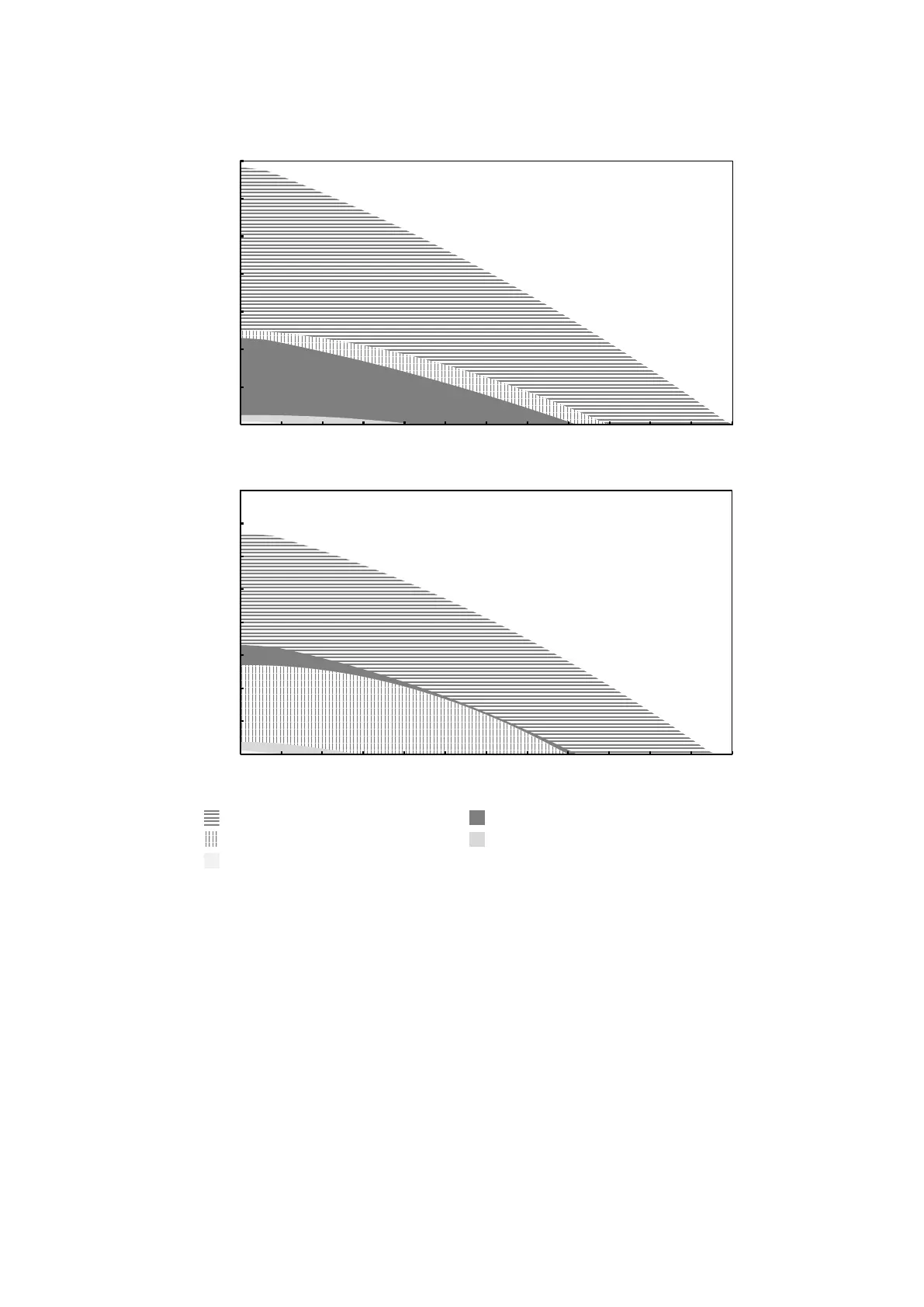

Figure 9 Cooling requirements for nEXT730D/930D
BC-0042-B
0.0
2.0
4.0
6.0
8.0
10.0
12.0
14.0
0.6 1.5 3.0 4.5 6.0 7.5 9.0 10.5 12.0 13.5 15.0 16.5 18.0
Gas flow in mbarl/s
Pressure in mbar
nEXT 730D and 930D - for Nitrogen
0.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
0.5 1.2 2.7 4.2 5.7 7.2 8.7 10.2 11.7 13.2 14.7 16.2 17.7
Gas flow in mbarl/s
Pressure in mbar
nEXT 730D and 930D - for Argon
Water cooling 15 °C, 100 l/h Air cooling, ambient temperature 24°C
Water cooling 35 °C, 50 l/h
Air cooling, ambient temperature 40°C
Convection, ambient temperature 24 °C
0.0
08/2021 - ©Edwards Limited
Page 33B8J200880_D
300812671_002_C3
B8J200880_D - Technical data
