13. Instant Throughput
The Instant Throughput pane displays payload throughput by device and by protocol (L2CAP
channel and SCO/eSCO). A color-coded scheme is used to differentiate these various
device/protocol throughput indications. The user is able to select anywhere from a single
throughput stream to all throughput streams for display (aggregate).
A hierarchy of all devices is shown at the left of the display, with the throughput graphs at the
right. A Navigation bar is available at the top of the display, which shows a global indication of
throughput and also allows the user to pan, zoom, and jump to any desired location.
Timing cursors are available in order to make one or more timing measurements across one or
more data streams. Markers can be placed at any point within the display and can be searched
using the Markers feature.
To access the Instant Throughput pane:
1. Select View | Instant Throughput from the menu

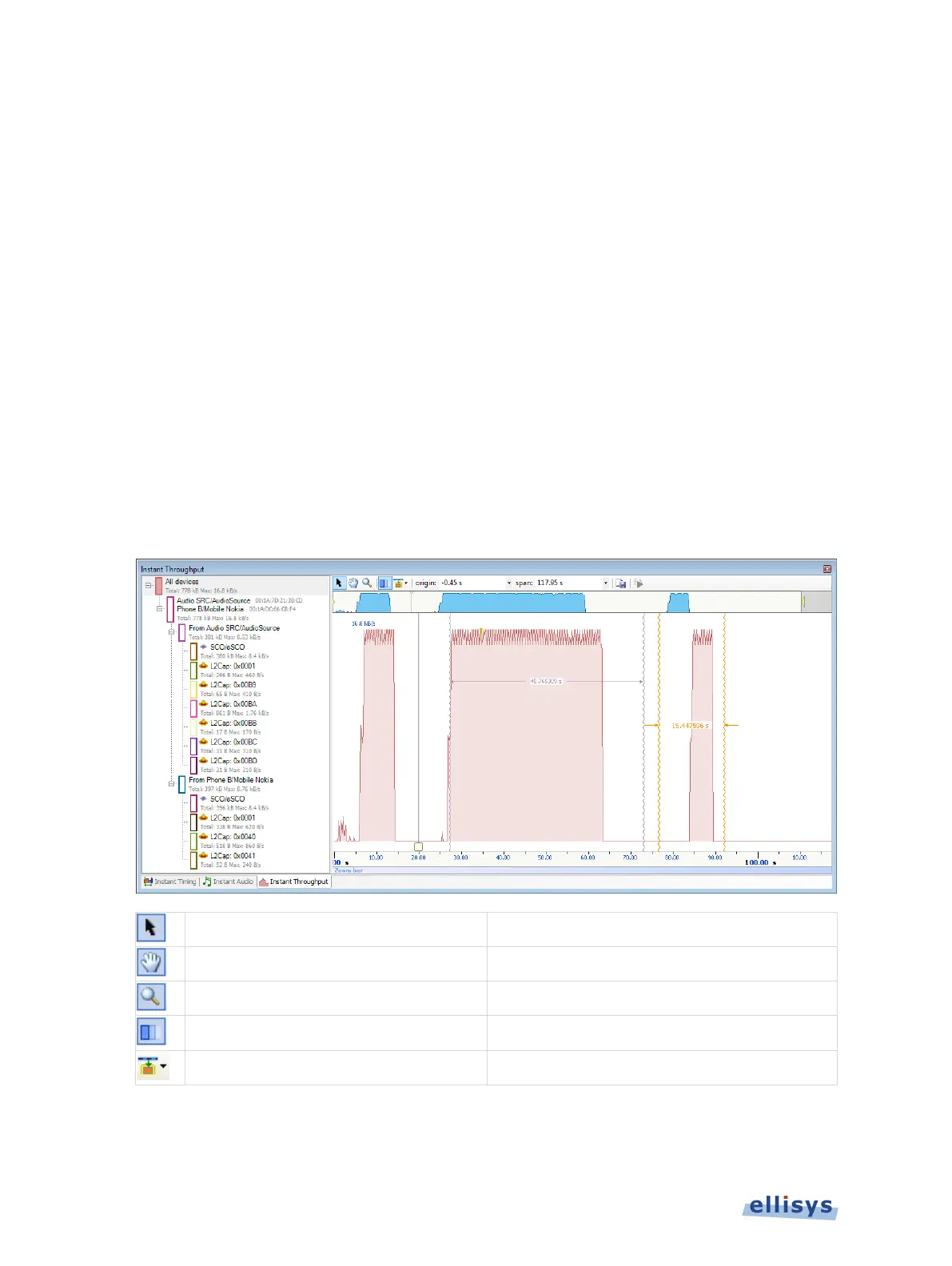

The Instant Throughput pane appears:
Mode
Switches to Pointer Mode.
Enable/Disable Smooth Scrolling
Enables and disables the smooth scrolling.
164 of 201 | Instant Throughput
To Next Page
