Analyzer User Guide
The Instant Spectrum view is linked to the Overviews as well as the Instant Timing pane. It is
manually linked to the Instant Piconet pane by the Instant Piconet cursor, which when scrolled,
updates the Instant Piconet view according to its current location. Conversely, when events are
selected in an Overview or the Instant Timing view, this cursor is re-positioned accordingly.
Automated highlighting of spectrum areas (channels) precluded by Adaptive Frequency Hopping
(AFH) is provided.
Several scales are available, including MHz, BR/EDR Channel, Low Energy Channel, and 802.11
Channel. Other features include zoom and pan.
To access the Instant Spectrum view:
1. Select View | Instant Spectrum from the menu

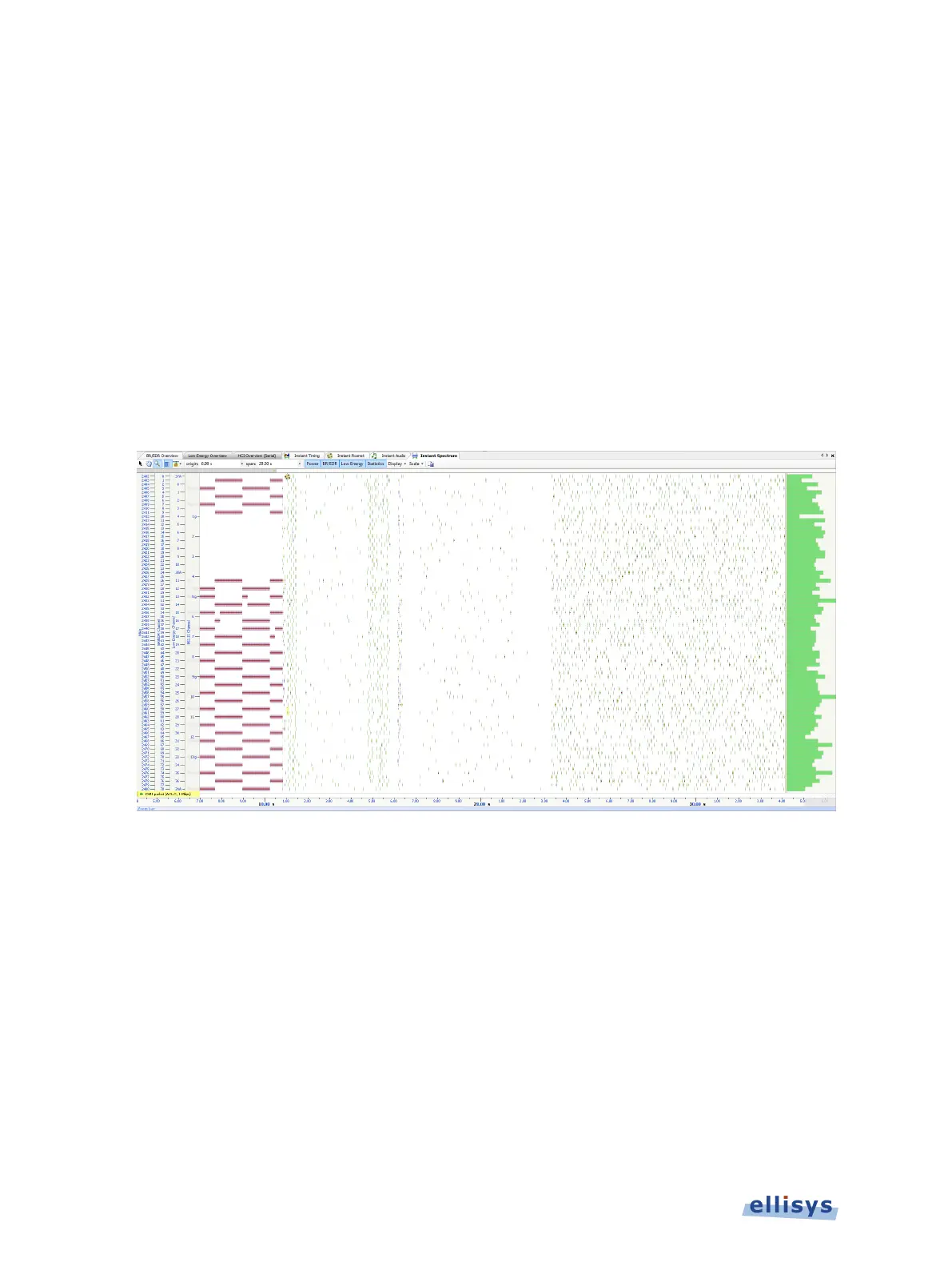

The Instant Spectrum view appears:
10.1 Device and Packet Color-Coding
Packets shown in the Instant Spectrum view are color-coded based on which device is sending
the packet. Each device (and its associated packets) is assigned a unique color. This color can
be user-defined if desired (see 8.4 Device Traffic Filter).
This color-coding is consistent throughout other areas of the analyzer software, including the
Devices window, Instant Timing pane, and the Instant Piconet pane.
10.2 User Controls and Toolbar
The Instant Spectrum view provides various user controls for navigation. The table below lists
the Instant Spectrum toolbar buttons and their actions:
134 of 201 | Instant Spectrum View
