Analyzer User Guide

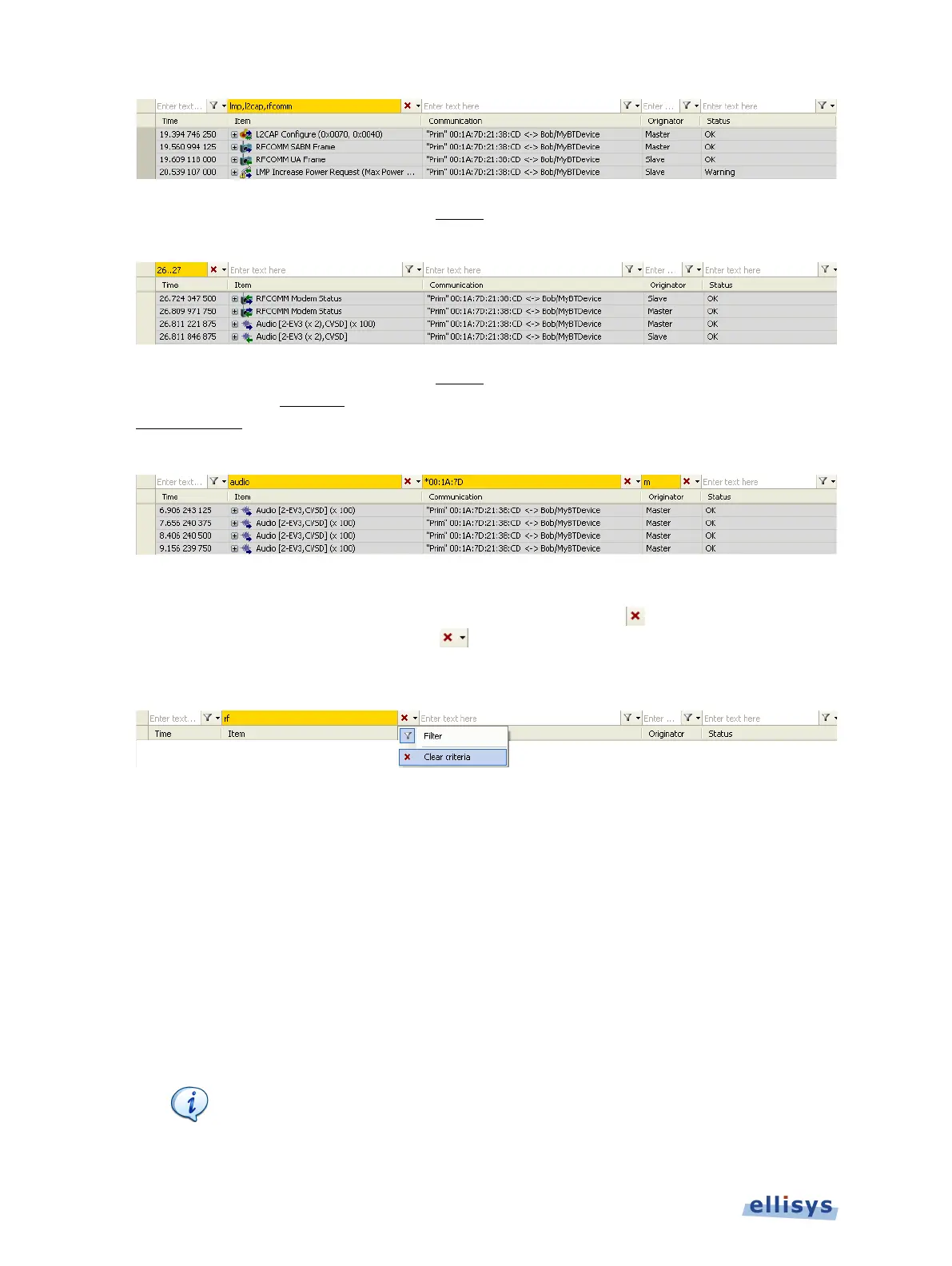

The example below will remove all items except those items taking place between timestamps
located at 26 and 27 seconds.
The example below will remove all items except those items beginning with the string “Audio” in
the Items column, involving the string “00:1A:7D” in the Communication column, and
beginning with an “M” in the Originator column, typically audio transfers involving a particular
device, where that device is
master.
To remove a filter:
1. Click on the red cross adjacent to the filter desired for removal
or alternatively, click on
the down arrow next to the red cross
.
A menu appears:
2. Click on Clear Criteria.
The selected filter is removed and the display updates.
8.2 Protocol / Profile Filters
A selection of protocol and profile filter icons is available on the Filter bar. These filters allow
the user to show or hide specific protocols and profiles, including baseband and packet-level
display options. The available filter options vary depending on the Overview selected (BR/EDR,
Low Energy, and HCI).
The associated Protocol: drop-down menu allows for selection of a single protocol/profile,
multiple protocols/profiles, or a custom selection.
Note that selection of any given protocol or layer on the Filter bar
will affect
which columns are displayed in the Overview. The columns displayed in the
98 of 201 | Display Filters
