Analyzer User Guide
7. Overview Windows
The analyzer software provides separate Overview windows for BR/EDR, Low Energy, HCI traffic
(Injection, USB, UART, and SPI), WCI-2, and a Message Log (associated with the Injection API).
The Overviews are the primary viewer windows, providing a chronological, user-configurable
display of all events and traffic. Overviews provide real-time display of events, searching,
filtering, timestamps, bookmarks, coloring, high-level protocol and profile abstractions, and
other features.
To display an Overview:

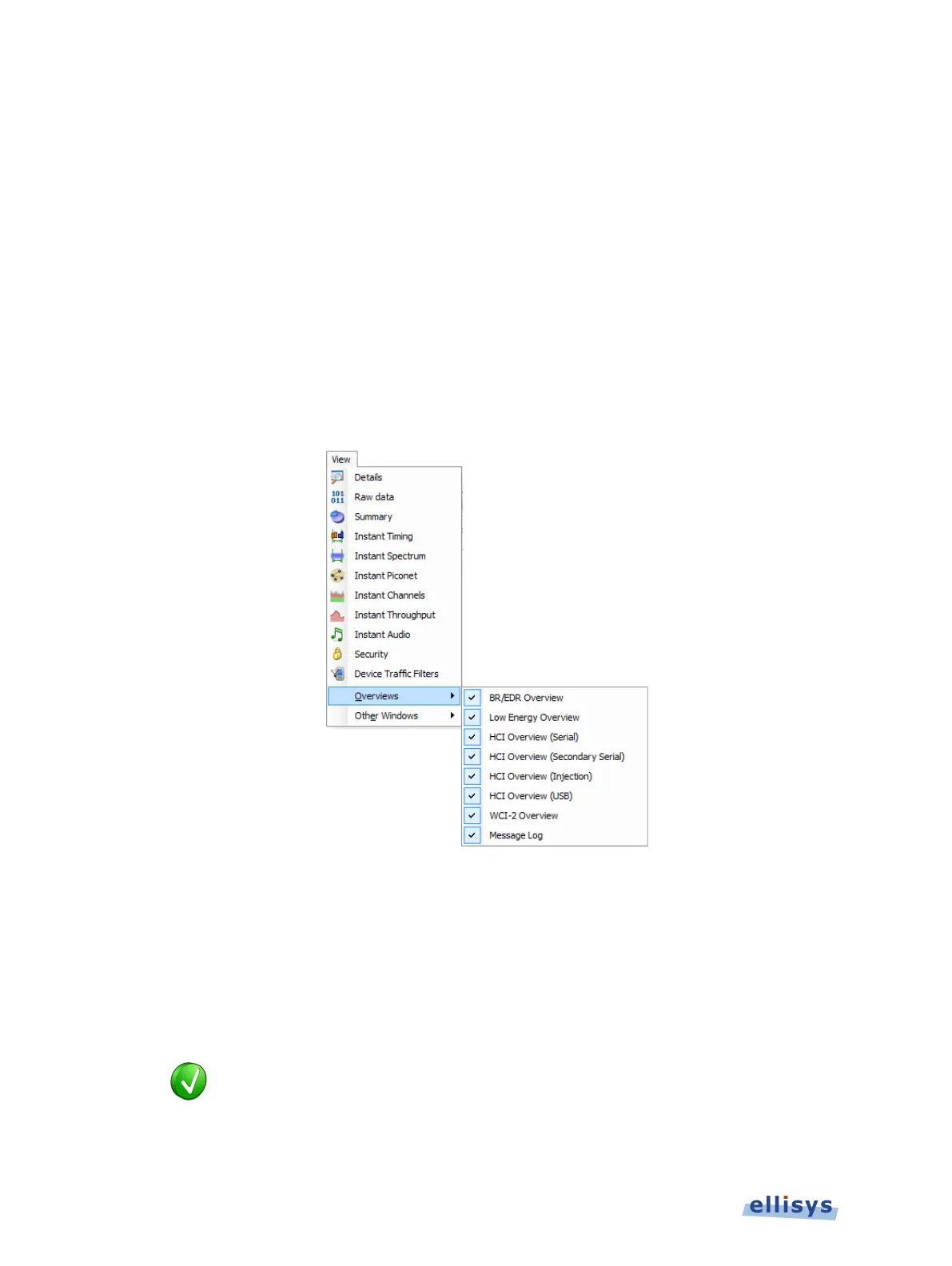

1. Select View | Overviews from the menu.
A selection of Overviews is provided:
2. Select the desired Overview(s).
3. The selected Overview(s) is/are displayed.
The Overviews are linked to other panes, such as the Instant Timing, Security, Details, Instant
Spectrum, Instant Audio, Instant Channels, Instant Throughput, and Instant Piconet panes.
Additionally, the analyzer is designed such that the applicable Overview(s) will populate in real-
time as traffic is captured.
Overview windows will automatically scroll (append) as new traffic is
captured, with the newest traffic appearing at the bottom of the
Overview, but
selecting an event in an Overview will halt the scrolling effect (traffic is still
76 of 201 | Overview Windows
