Analyzer User Guide
7.2 Color-Coding an Overview
Adding color to Overview items can help greatly with at-a-glance identification of specified
protocols, profiles, events, statuses, etc. Coloring can be added with a convenient right-click or
using the Colorize menu.

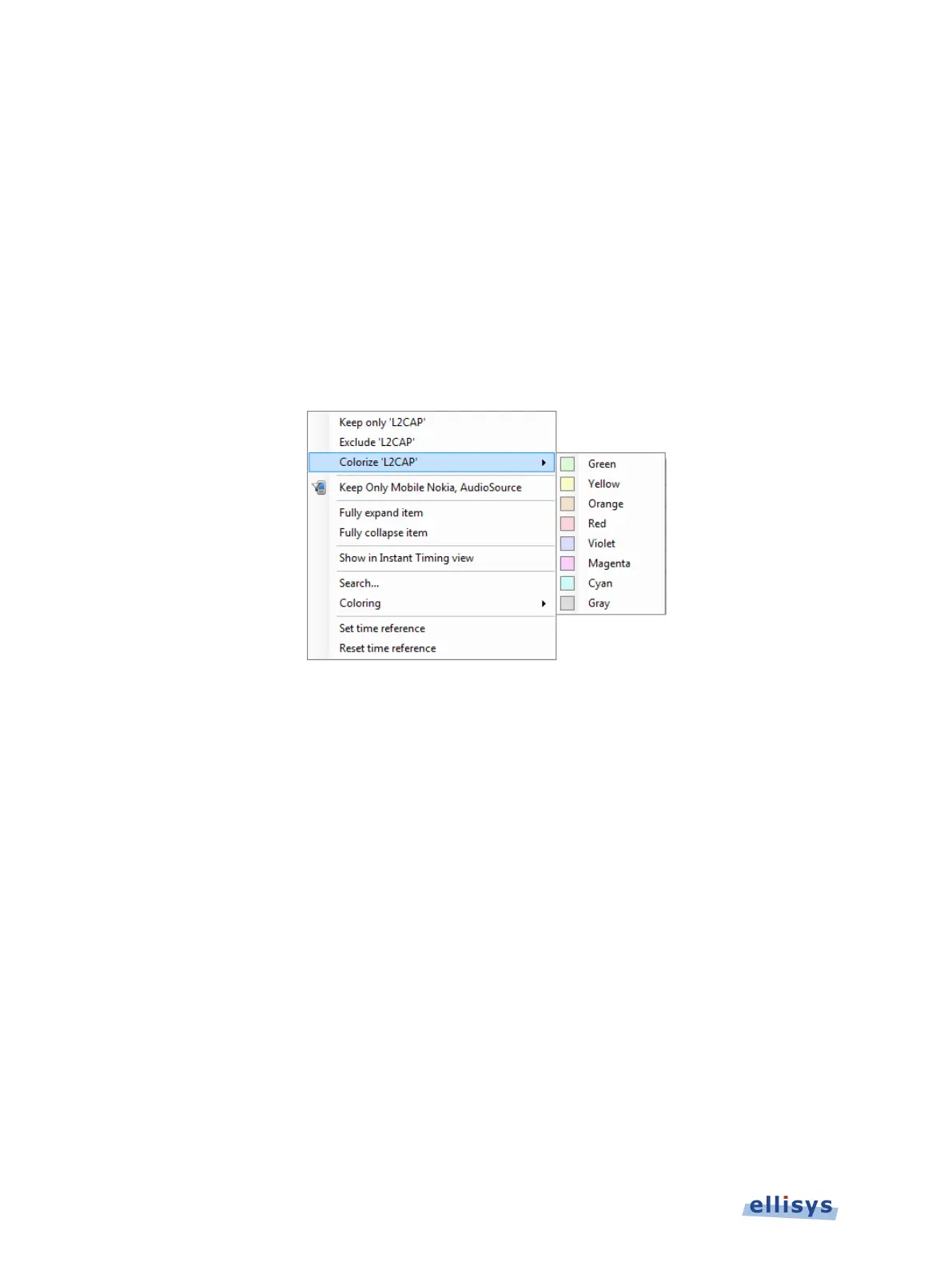

To add coloring using the right-click option:
1. Select the desired line in the Overview.
2. Position the mouse pointer over the desired column on the selected line.
3. Right-click the mouse and select Colorize ‘*’, where ‘*’ will equate to the contents of the
selected line/column.
4. Select the color desired.
The Overview is updated to colorize the selected line/column.
To add color-coding using the Colorize menu:
1. Right-click in the desired Overview and select Coloring | Add Color.
80 of 201 | Overview Windows
