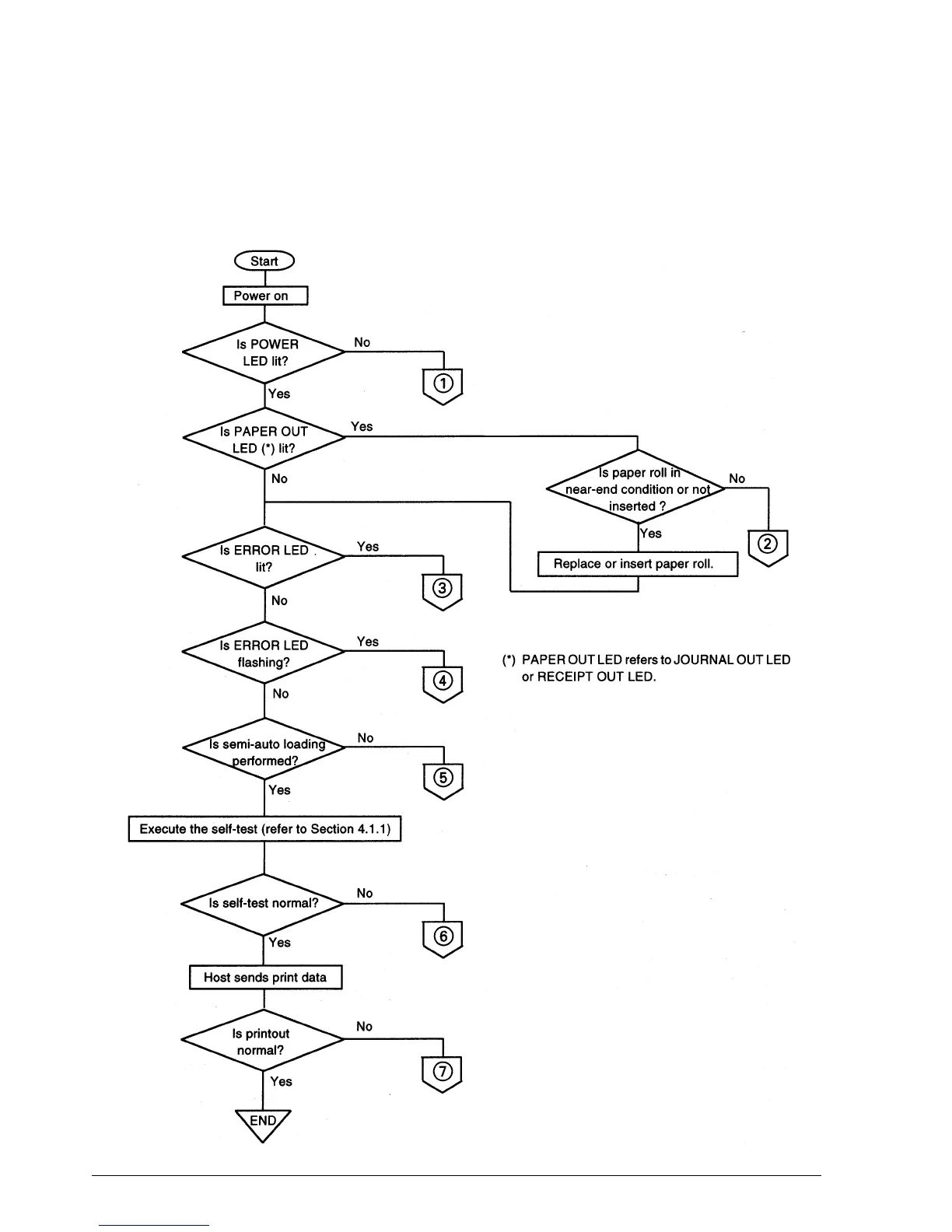

Troubleshooting Flowchart
If the source of a problem is not clear, use the flowchart below to find and replace a defective
component. Normally servicing should be performed by component replacement. Repairs of the
PCBs and other components should be performed only by technicians.
