Epson TM-U950 Technical Manual

5-12 Disassembly, Assembly, and Adjustments Rev. A

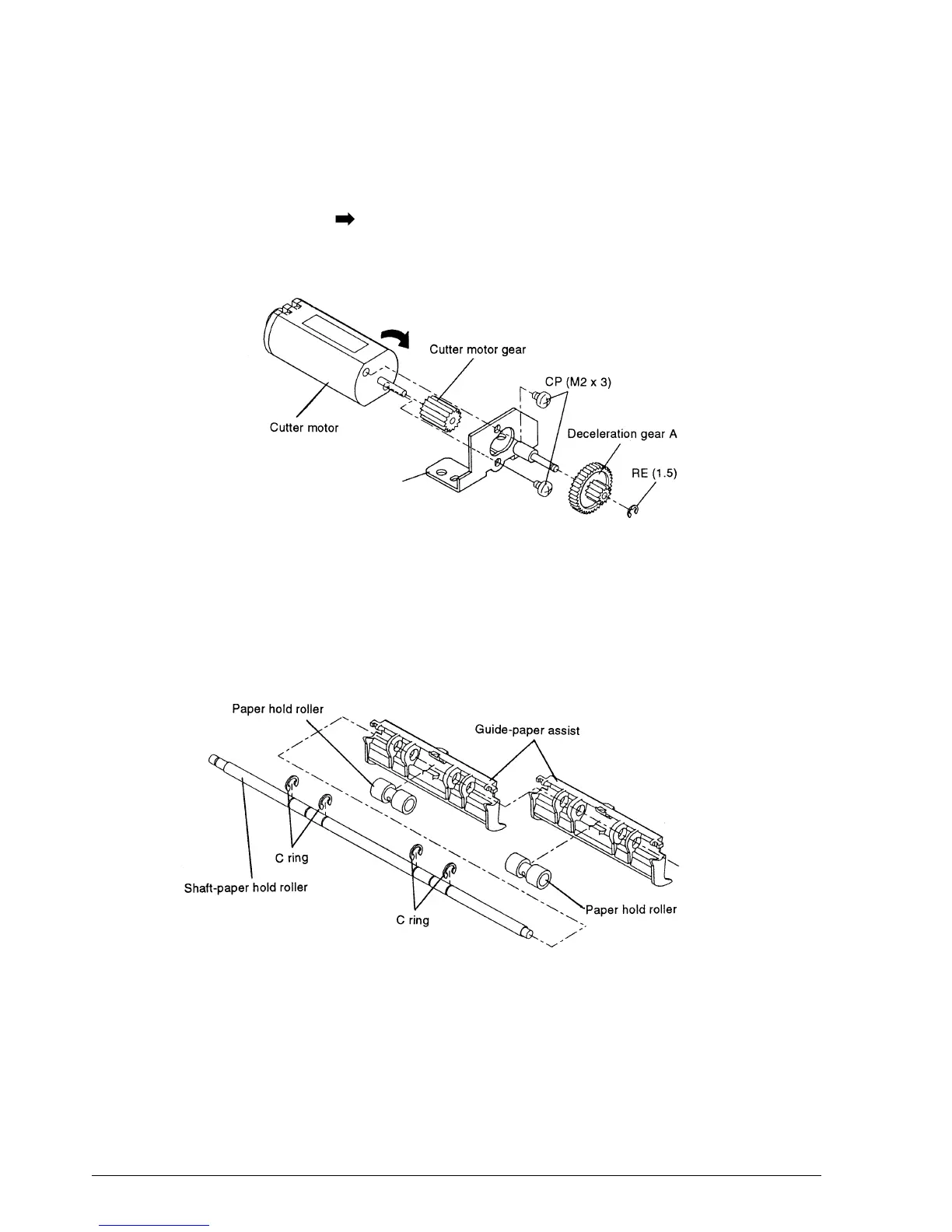

Sub-assembly D: Cutter Motor Mount Plate Assembly
1. Mount the cutter motor gear onto the cutter motor.
2.* Hold the motor with the label facing up and insert it into the cutter motor mount place sub-
assembly. Turn it in the direction and secure it with the screws.
3.* Mount the deceleration gear A and fasten it with the RE.
Sub-assembly E: Roller-Paper Hold Assembly
1. Mount the paper hold rollers onto the paper guide-assist.
2.* Pass the shaft-paper hold roller through the guides-paper assist and the paper hold rollers.
3. Clip the C rings onto the grooves on the shaft-paper hold roller.
Cutter motor mount plate sub-assembly
CONFIDENTIAL

Epson TM-U950 Specifications

General

Print speed	18.6 ips
Character size	1.3 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	210 x 297 mm
Dimensions (WxDxH)	251 x 298 x 194.5 mm
Electromagnetic compatibility	VCCI, FCC, CE
Safety	UL, CSA
Country of origin	China
Mean time between failures (MTBF)	180000 h
Serial interface	Yes
Standard interfaces	RS-232C
Weight (imperial)	12.3 lbs
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2250 mm
Quantity per pallet	24 pc(s)
Quantity per pallet (UK)	36 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	425 mm
Package width	360 mm
Package height	330 mm
Package weight	7196 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	298 mm
Width	186 mm
Height	195 mm
