Epson TM-U950 - Sub-Assembly A: Detector-Paper Assembly

Rev. A Disassembly, Assembly, and Adjustments 5-7
TM-U950/U950P Technical Manual
Sub-assembly
Sub-assembly A: Detector-Paper Assembly

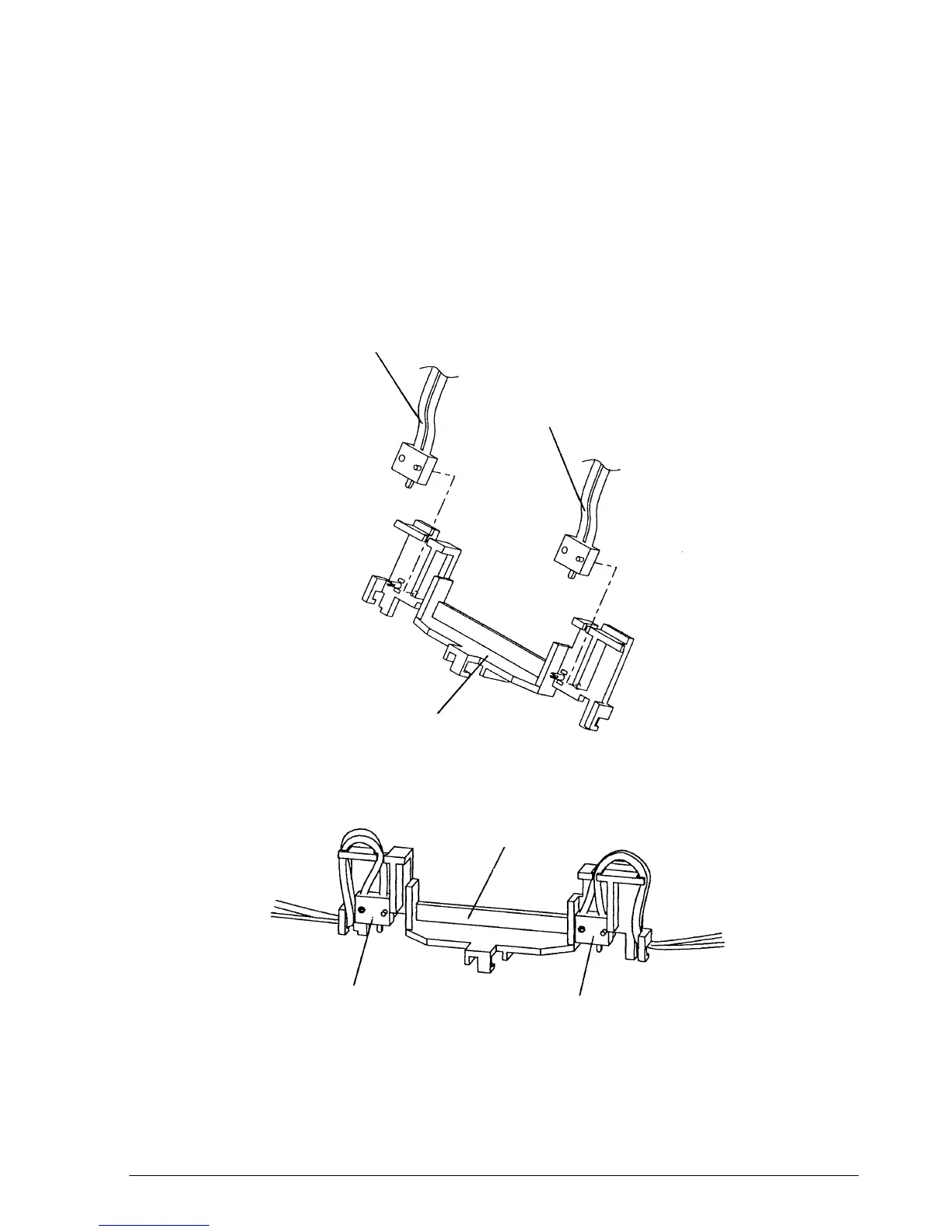

1. Attach the detector-paper J sub assembly and detector-paper R sub assembly to the holder-
paper detector.
2. Dress the wires as shown in the illustration.
✔ Do not mix up the J and R paper detectors.
Detector-paper J sub assembly (brown wire)
Detector-paper R sub assembly (pink wire)
Holder-paper detector
Detector-paper J sub assembly
Detector-paper R sub assembly
Holder-paper detector
