Epson TM-U950 Technical Manual

Rev. A Disassembly, Assembly, and Adjustments 5-59
TM-U950/U950P Technical Manual
Main Assembly (Part 2)
Main Assembly 2-1: Attaching lever stop plates-J and -R and adjusting their positions (for
printers with a MICR reader)
Always adjust the following items before carrying out the assembly: (See pages 5-53 - 58.)
❏ Check the auto cutter blade for looseness. Adjustment A.
❏ Adjust the backlash between the carriage motor gear and the carriage feed slip.
Adjustment B.
❏ Adjust the slip paper guide. Adjustment C.
❏ Adjust the tension of the carriage transmission belt. Adjustment D.
❏ Adjust the parallelism of the slip paper feed. Adjustment E.
❏ Adjust the gap between the print head unit and the platen assembly. Adjustment F.

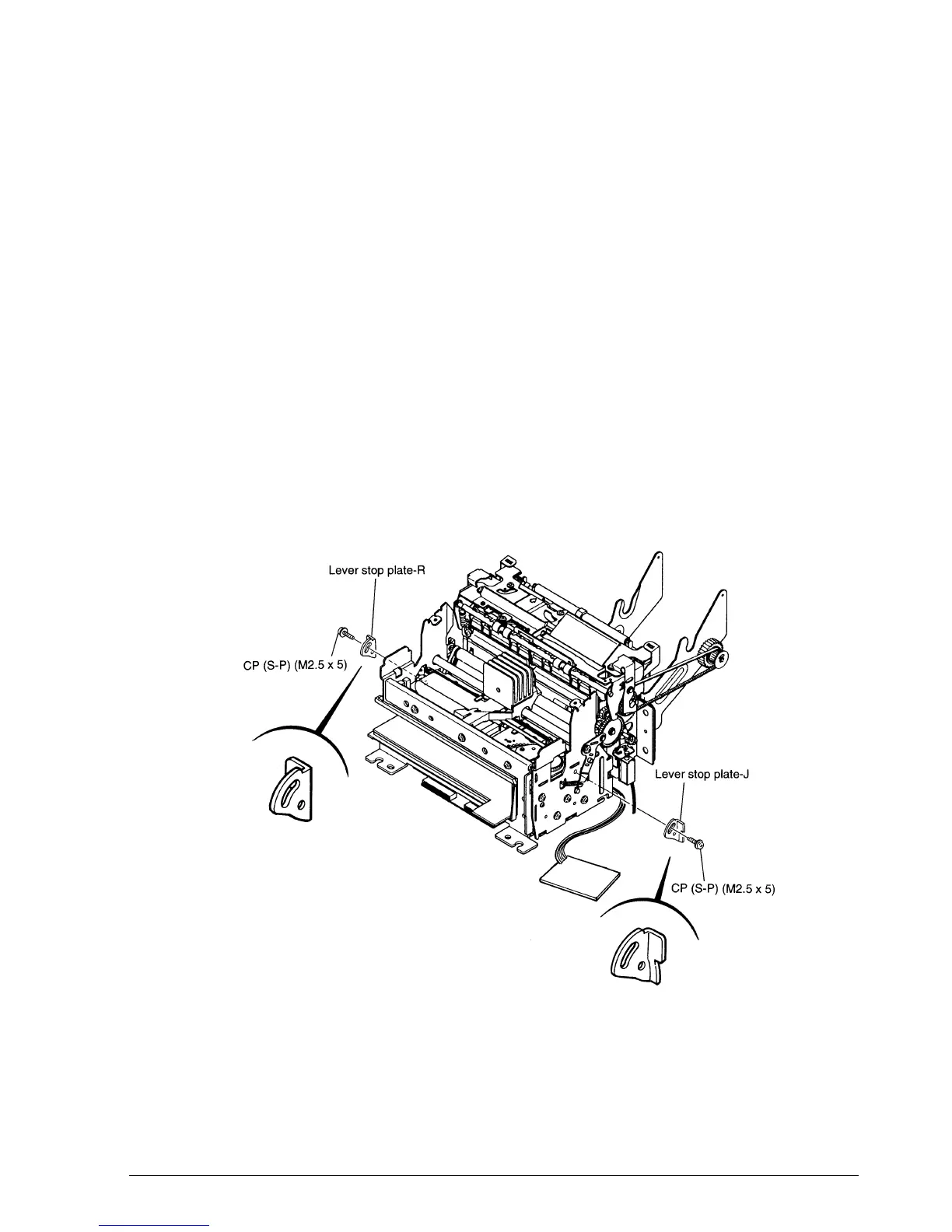

1. As shown in the illustration below, attach the lever stop plates-J and -R, securing each
temporarily with one screw.
CONFIDENTIAL

Epson TM-U950 Specifications

General

Print speed	18.6 ips
Character size	1.3 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	210 x 297 mm
Dimensions (WxDxH)	251 x 298 x 194.5 mm
Electromagnetic compatibility	VCCI, FCC, CE
Safety	UL, CSA
Country of origin	China
Mean time between failures (MTBF)	180000 h
Serial interface	Yes
Standard interfaces	RS-232C
Weight (imperial)	12.3 lbs
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2250 mm
Quantity per pallet	24 pc(s)
Quantity per pallet (UK)	36 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	425 mm
Package width	360 mm
Package height	330 mm
Package weight	7196 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	298 mm
Width	186 mm
Height	195 mm
