Epson TM-U950 Technical Manual

Rev. A Disassembly, Assembly, and Adjustments 5-35
TM-U950/U950P Technical Manual

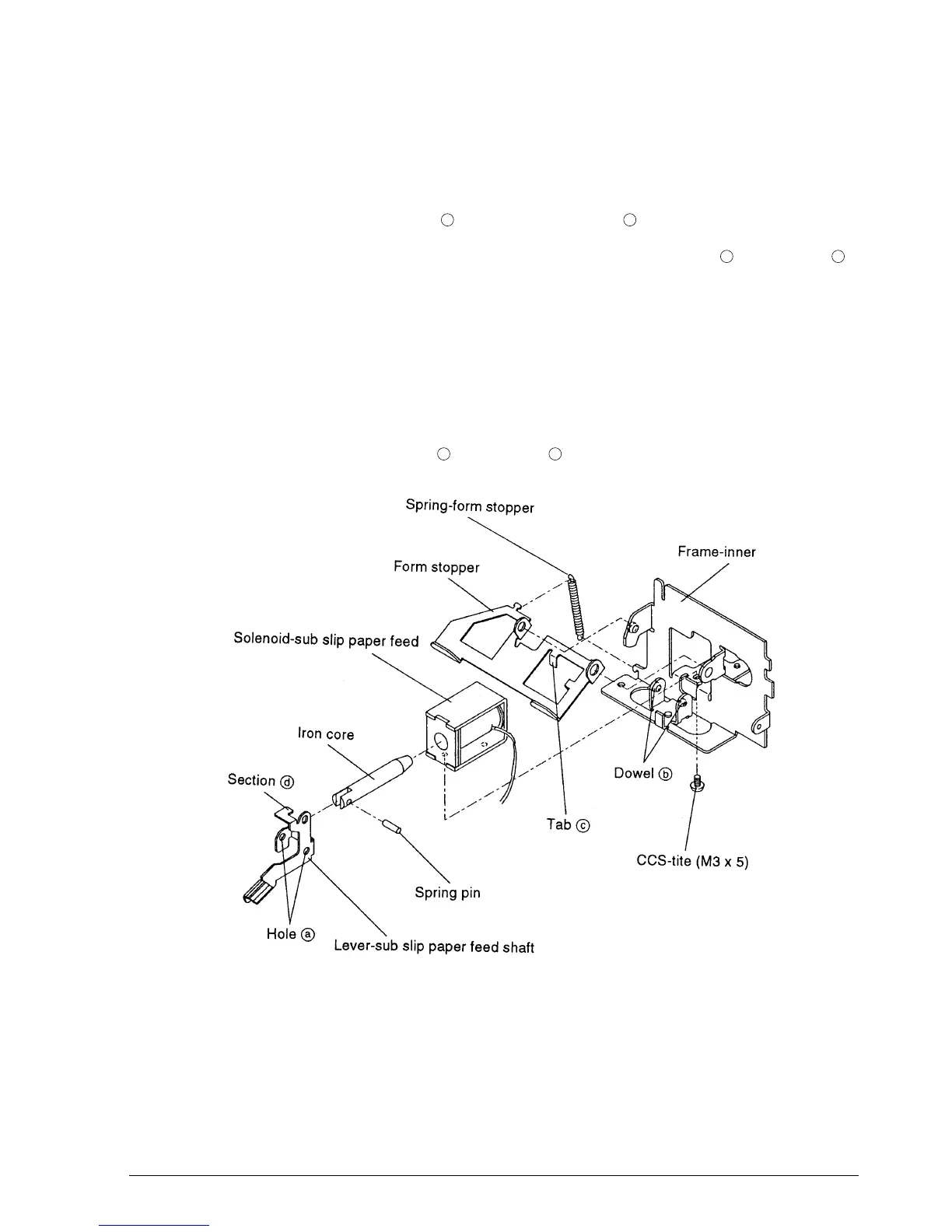

Sub-assembly M: Frame-Inner Assembly
1.* Pass the iron core through the lever-sub slip paper feed shaft and secure it with the
spring pin.
2.* Position the resulting part so that is aligned with dowel .
3.* Attach the form stopper to the frame-inner so that the cut face of section contacts tab .
4. Align the hole on the solenoid-sub slip paper feed with the dowel of the frame-inner and
fasten the solenoid with the screw.
5. Attach the spring-form stopper.
✔
Checkpoints
Verify that the form stopper moves smoothly when the lever-sub slip paper feed shaft is
moved.
Verify that the cut face of section contacts tab .
a
b
d
c
d
c
CONFIDENTIAL

Epson TM-U950 Specifications

General

Print speed	18.6 ips
Character size	1.3 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	210 x 297 mm
Dimensions (WxDxH)	251 x 298 x 194.5 mm
Electromagnetic compatibility	VCCI, FCC, CE
Safety	UL, CSA
Country of origin	China
Mean time between failures (MTBF)	180000 h
Serial interface	Yes
Standard interfaces	RS-232C
Weight (imperial)	12.3 lbs
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2250 mm
Quantity per pallet	24 pc(s)
Quantity per pallet (UK)	36 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	425 mm
Package width	360 mm
Package height	330 mm
Package weight	7196 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	298 mm
Width	186 mm
Height	195 mm
