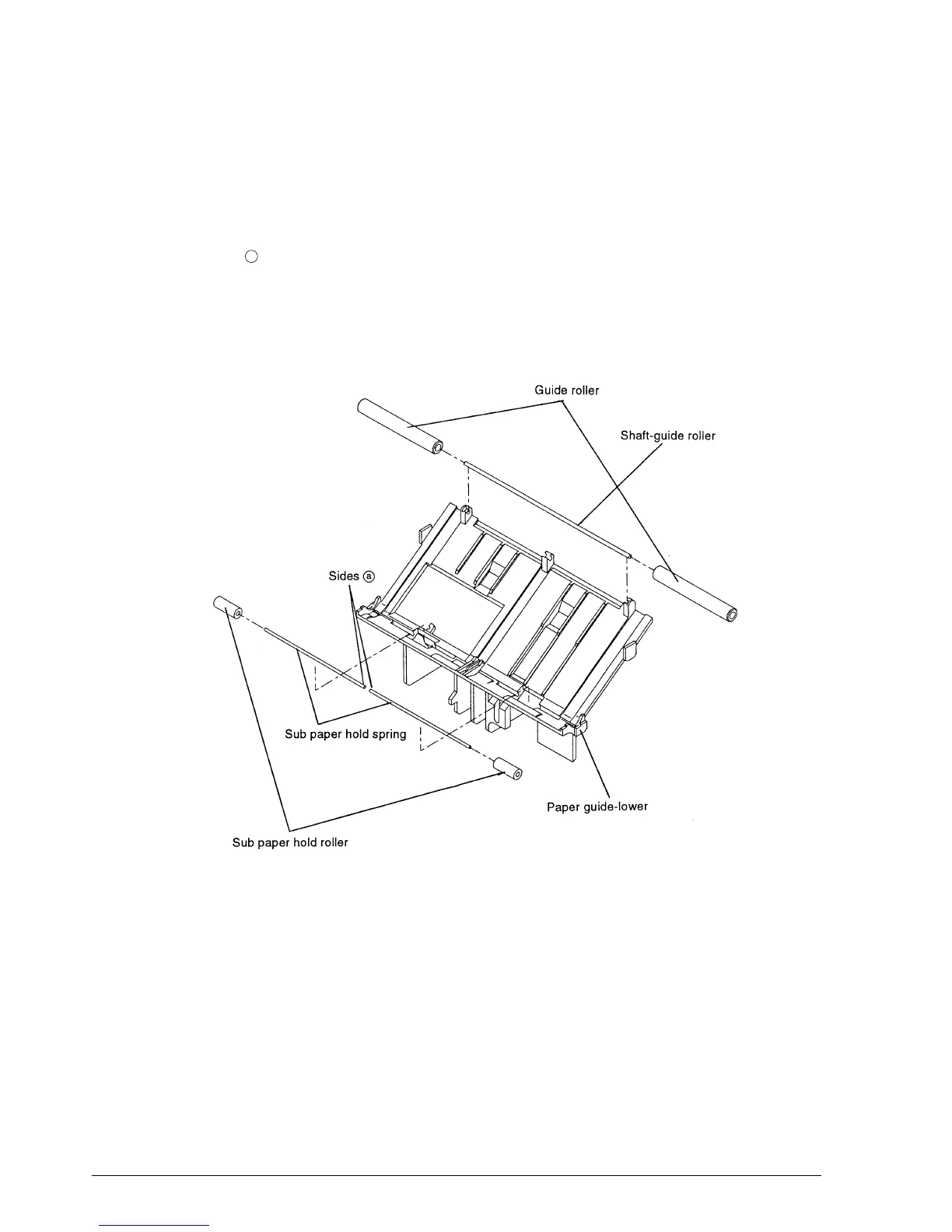

Sub-assembly C: Paper Guide-Lower Unit Assembly
1. Pass the two guide rollers onto the shaft-guide roller and push the shaft into the paper
guide-lower.
2.* Pass the sub paper hold rollers onto the paper hold springs.
3. Insert sides of the paper hold springs into the groove on the paper guide-lower and press
the other end to fasten.
✔
Checkpoint
Make sure that the sub paper hold springs are not bent.
