Epson TM-U950 Technical Manual

Rev. A Mechanism Configuration and Operating Principles 2-19
TM-U950/U950P Technical Manual
Therefore, the ribbon feed gear always turns in the direction, regardless of the rotation
direction of the carriage motor. The ribbon feed gear is interlocked with the ribbon feed roller
and ribbon feed holder roller inside the ribbon cassette, thus feeding the ribbon.
Stamp Assembly (for printers with a stamp assembly)
The optional stamp assembly consists of the parts shown in Figure 2-30. The assembly is
installed below the paper inlet on the receipt side.
h

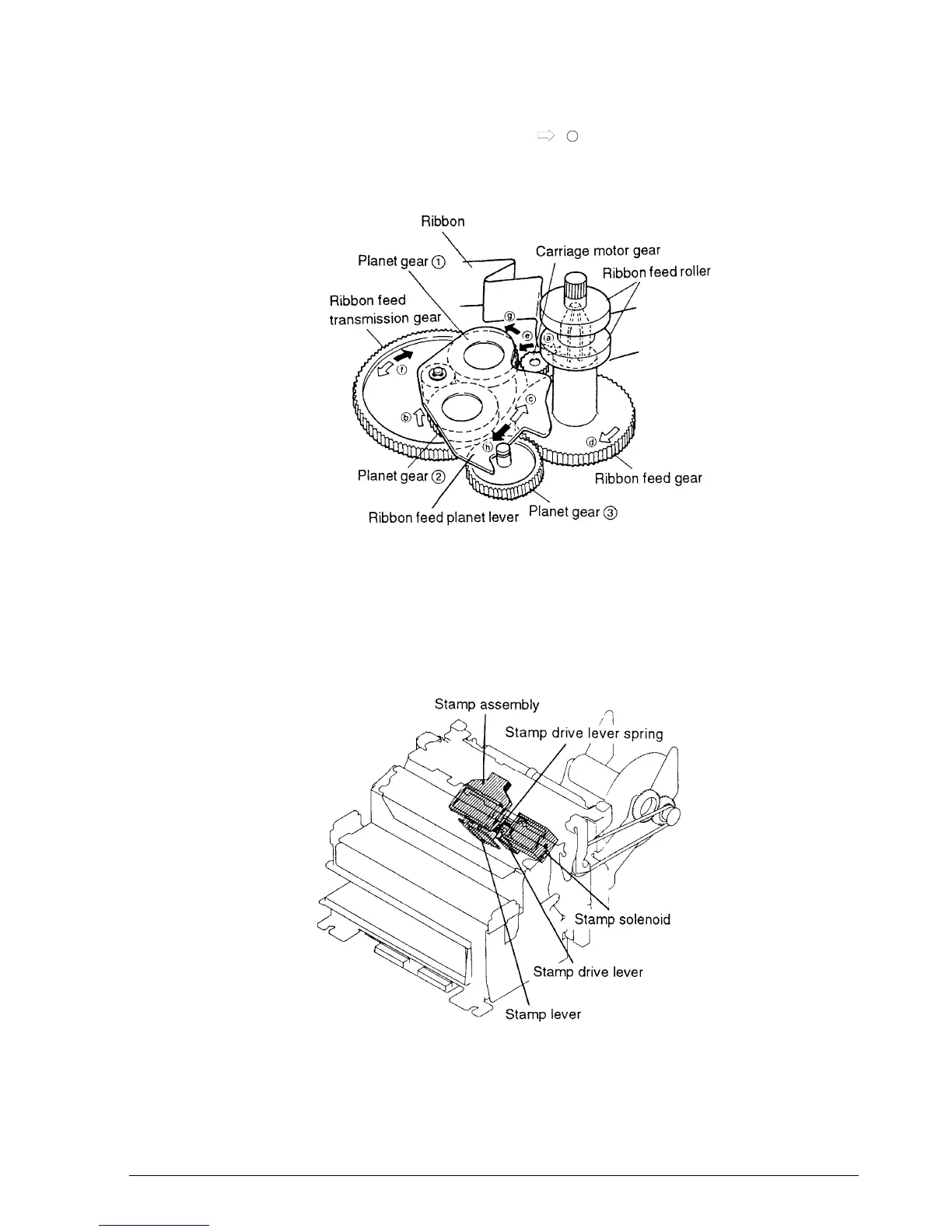

Figure 2-29. Ribbon Feed Operation
Figure 2-30. Stamp Assembly
CONFIDENTIAL

Epson TM-U950 Specifications

General

Print speed	18.6 ips
Character size	1.3 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	210 x 297 mm
Dimensions (WxDxH)	251 x 298 x 194.5 mm
Electromagnetic compatibility	VCCI, FCC, CE
Safety	UL, CSA
Country of origin	China
Mean time between failures (MTBF)	180000 h
Serial interface	Yes
Standard interfaces	RS-232C
Weight (imperial)	12.3 lbs
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2250 mm
Quantity per pallet	24 pc(s)
Quantity per pallet (UK)	36 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	425 mm
Package width	360 mm
Package height	330 mm
Package weight	7196 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	298 mm
Width	186 mm
Height	195 mm
