Epson TM-U950 Technical Manual

5-36 Disassembly, Assembly, and Adjustments Rev. A
Sub-assembly N: Detector-Slip Insertion Assembly

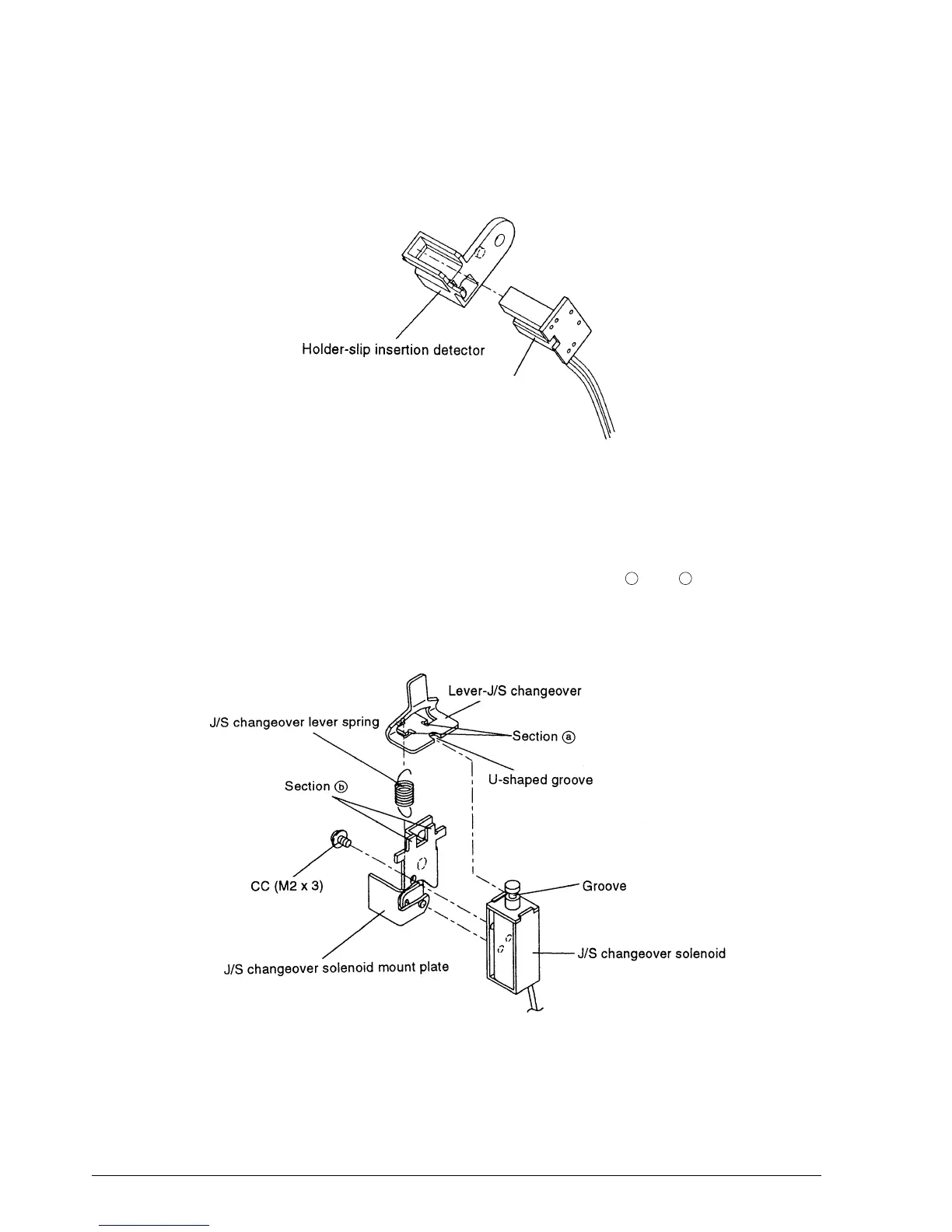

1. Push the detector-slip insertion sub assembly into the holder-slip insertion detector.
Sub-assembly O: Solenoid J/S Changeover Assembly
1.* Attach the J/S changeover solenoid to the J/S changeover solenoid mount plate and tighten
the screw.
2. Align the U-shaped groove of the lever-J/S changeover with the groove on the side of the
J/S changeover solenoid and attach the lever by joining sections and .
3. Engage the J/S changeover lever spring.
Detector-slip insertion sub-assembly
a
b
