Epson TM-U950 Technical Manual

Rev. A Disassembly, Assembly, and Adjustments 5-39
TM-U950/U950P Technical Manual
Sub-assembly R: Assembling the motor-paper guide-J assembly (for printers with a
MICR reader)

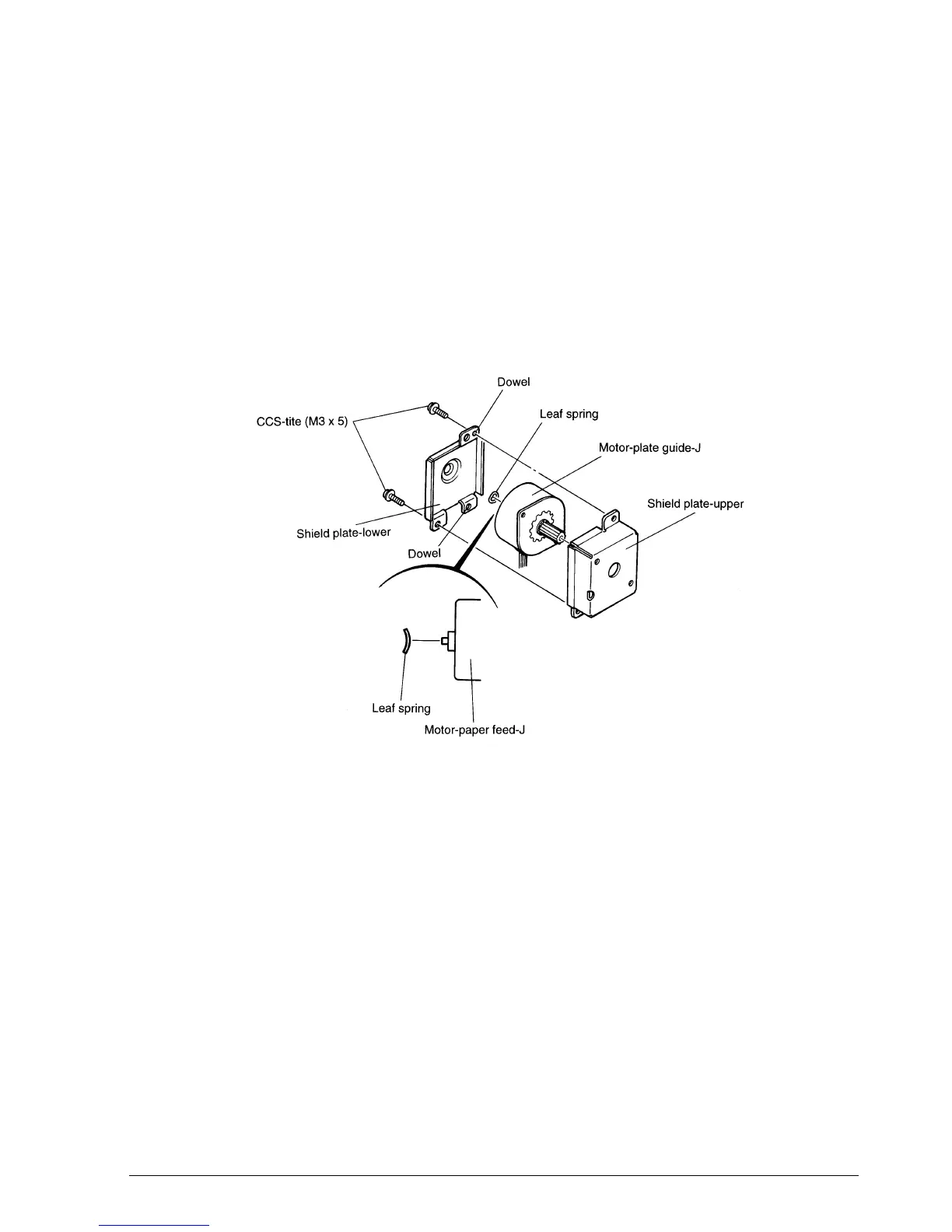

1. With the leaf spring positioned as shown below, set the spring on the motor-paper guide-J,
and then attach the shield plate-upper and the shield plate-lower.
2. Secure the shield plate-upper to the shield plate-lower, using the two screws.
✔
Checkpoint
Make sure the two dowels in the shield plate-upper match the holes in the shield
plate-lower.
CONFIDENTIAL

Epson TM-U950 Specifications

General

Print speed	18.6 ips
Character size	1.3 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	210 x 297 mm
Dimensions (WxDxH)	251 x 298 x 194.5 mm
Electromagnetic compatibility	VCCI, FCC, CE
Safety	UL, CSA
Country of origin	China
Mean time between failures (MTBF)	180000 h
Serial interface	Yes
Standard interfaces	RS-232C
Weight (imperial)	12.3 lbs
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2250 mm
Quantity per pallet	24 pc(s)
Quantity per pallet (UK)	36 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	425 mm
Package width	360 mm
Package height	330 mm
Package weight	7196 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	298 mm
Width	186 mm
Height	195 mm
