2-12 Mechanism Configuration and Operating Principles Rev. A
separated from the paper feed roller (the dotted line in Figure 2-19). When section (A) of the
release lever is not pushed farther, the paper holder spring returns the lever to the original
position.
Slip Paper Assembly
The slip paper assembly consists of the parts shown in Figure 2-20.

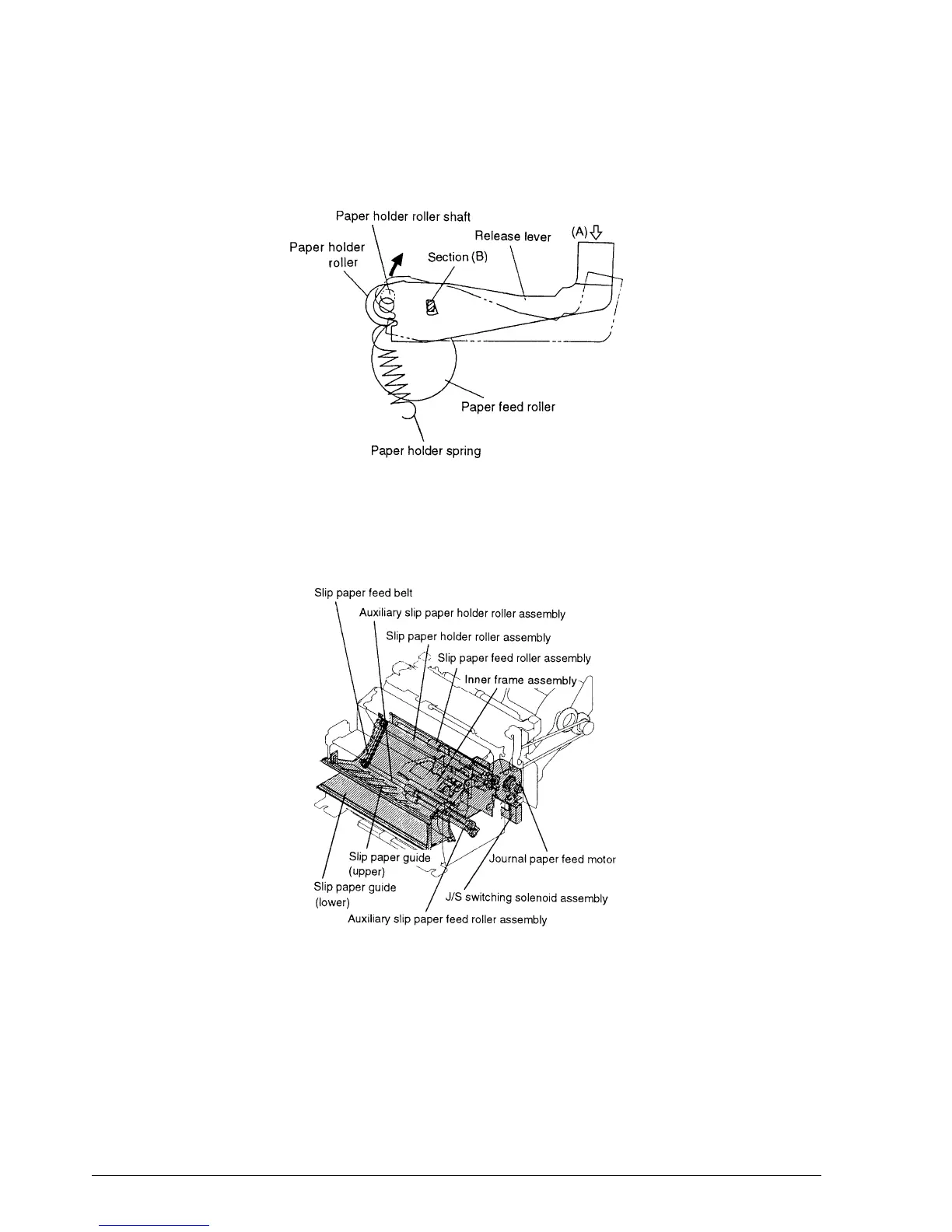

Figure 2-19. Paper Release Operation
Figure 2-20. Slip Paper Feed Assembly
