Replacing the Cutter Blade
1. Open the cover-main assembly.
2. Remove the screws from the cover-cutter blade receiving assembly and replace the cover.
[Adjustment] Make sure to perform the cutter blade play after the replacement. See Adjustment A in
this chapter.
Art To Come

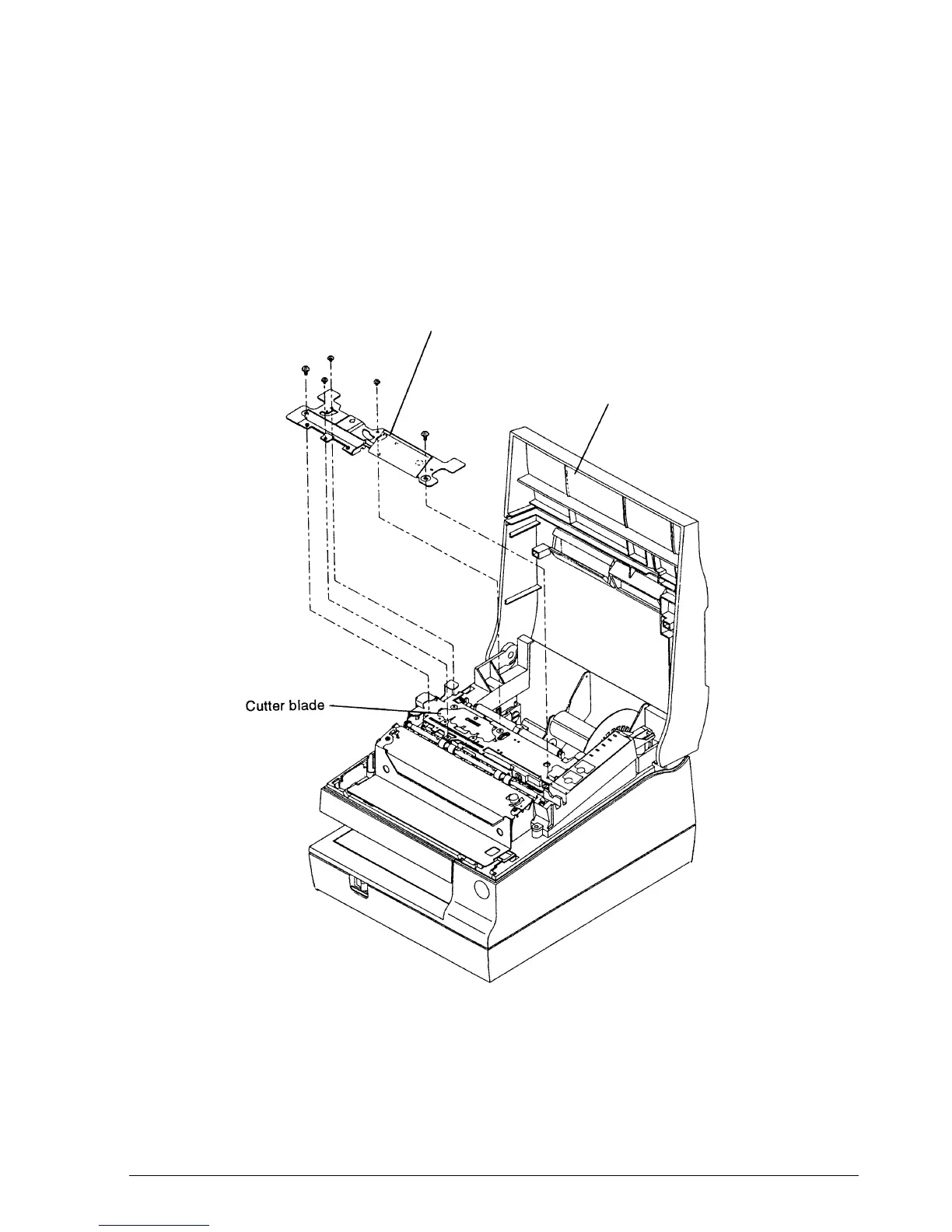

Cover-cutter blade receiving assembly
Cover-main assembly
