Epson TM-U950 Technical Manual

1-10 Features and General Specifications Rev. A

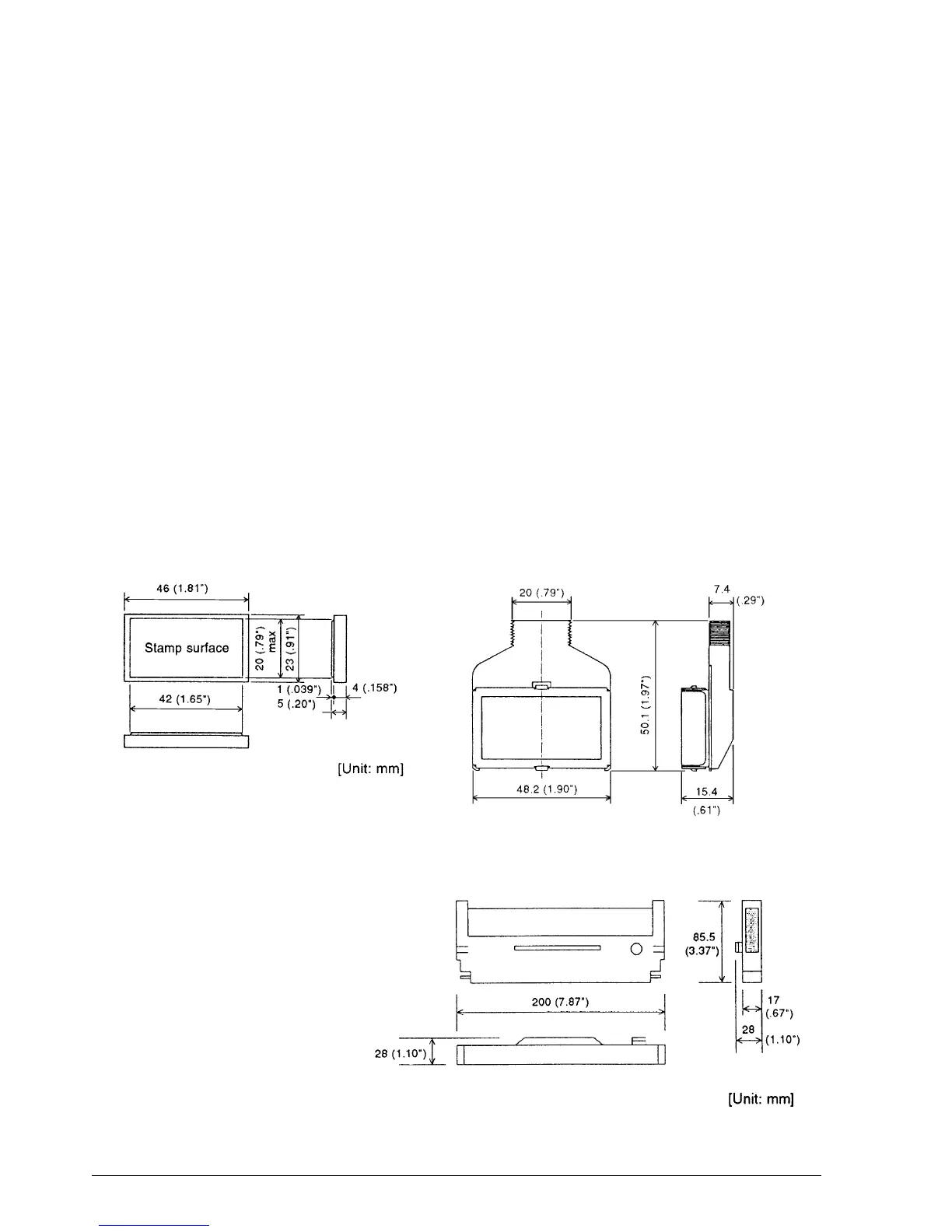

Figure 1-11. Ribbon Cassette Dimensions
❏ During standby
Average approx. 0.3 A
❏ Operating MICR reader
(when the printer used with the MICR reader)
Mean - approximately 2.3 A
(Approximately 1.4 seconds)
Stamp
Stamp mechanism is available as a factory option for the receipt side.
Recommended stamp: Fuji Copian CSP-2042C
Recommended ink: Fuji Copian Super Ink
Print area: 42 x 20 mm (1.65 x 0.79”)
(W x H)
Dimensions of stamp pad: See Figure 1-9.
Dimensions of stamp set: See Figure 1-10.
Ink Ribbon
Ribbon cassette
ERC-31 (P)
ERC-31 (B)
Color
Purple: ERC-31 (P)
Black: ERC-31 (B)
Ribbon life (18 dots per character)
7,000,000 characters
Figure 1-9. Stamp Pad Dimensions Figure 1-10. Stamp Set Dimensions
[Unit: mm]
CONFIDENTIAL

Epson TM-U950 Specifications

General

Print speed	18.6 ips
Character size	1.3 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	210 x 297 mm
Dimensions (WxDxH)	251 x 298 x 194.5 mm
Electromagnetic compatibility	VCCI, FCC, CE
Safety	UL, CSA
Country of origin	China
Mean time between failures (MTBF)	180000 h
Serial interface	Yes
Standard interfaces	RS-232C
Weight (imperial)	12.3 lbs
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2250 mm
Quantity per pallet	24 pc(s)
Quantity per pallet (UK)	36 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	425 mm
Package width	360 mm
Package height	330 mm
Package weight	7196 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	298 mm
Width	186 mm
Height	195 mm
