Epson TM-U950 - Sub-Assembly L-(2): Frame Carriage Unit Assembly (for Printers with a MICR Reader)

Rev. A Disassembly, Assembly, and Adjustments 5-27
TM-U950/U950P Technical Manual
Sub-assembly L-(2): Frame-Carriage Unit Assembly (for printers with a MICR reader)

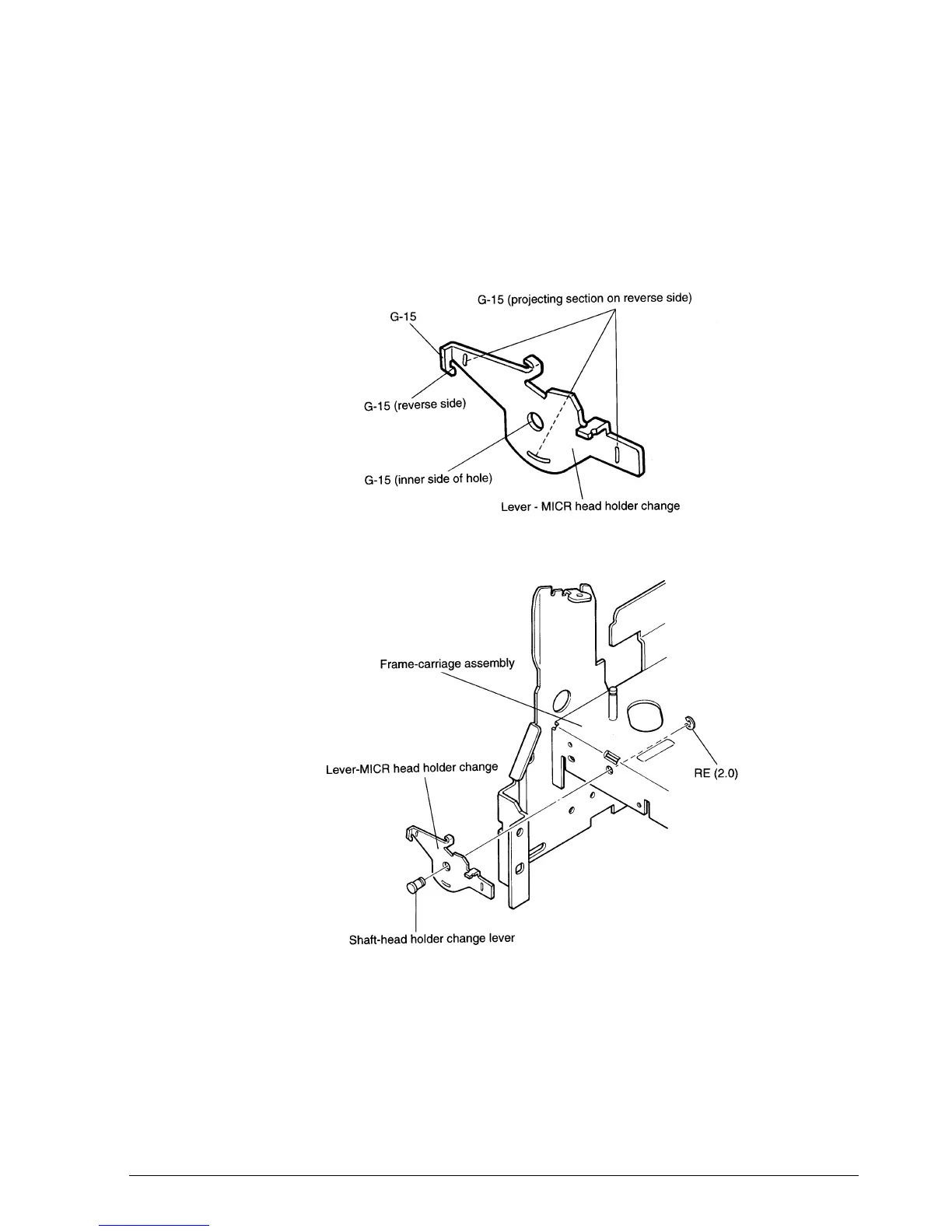

1.* As shown below, attach the lever-MICR head holder change to the frame-carriage assembly,
and secure it with the RE fittings.
✔
Checkpoint
Refer to the illustration below when lubricating the lever-MICR head holder change.
