Rev. A Disassembly, Assembly, and Adjustments 5-3
TM-U950/U950P Technical Manual

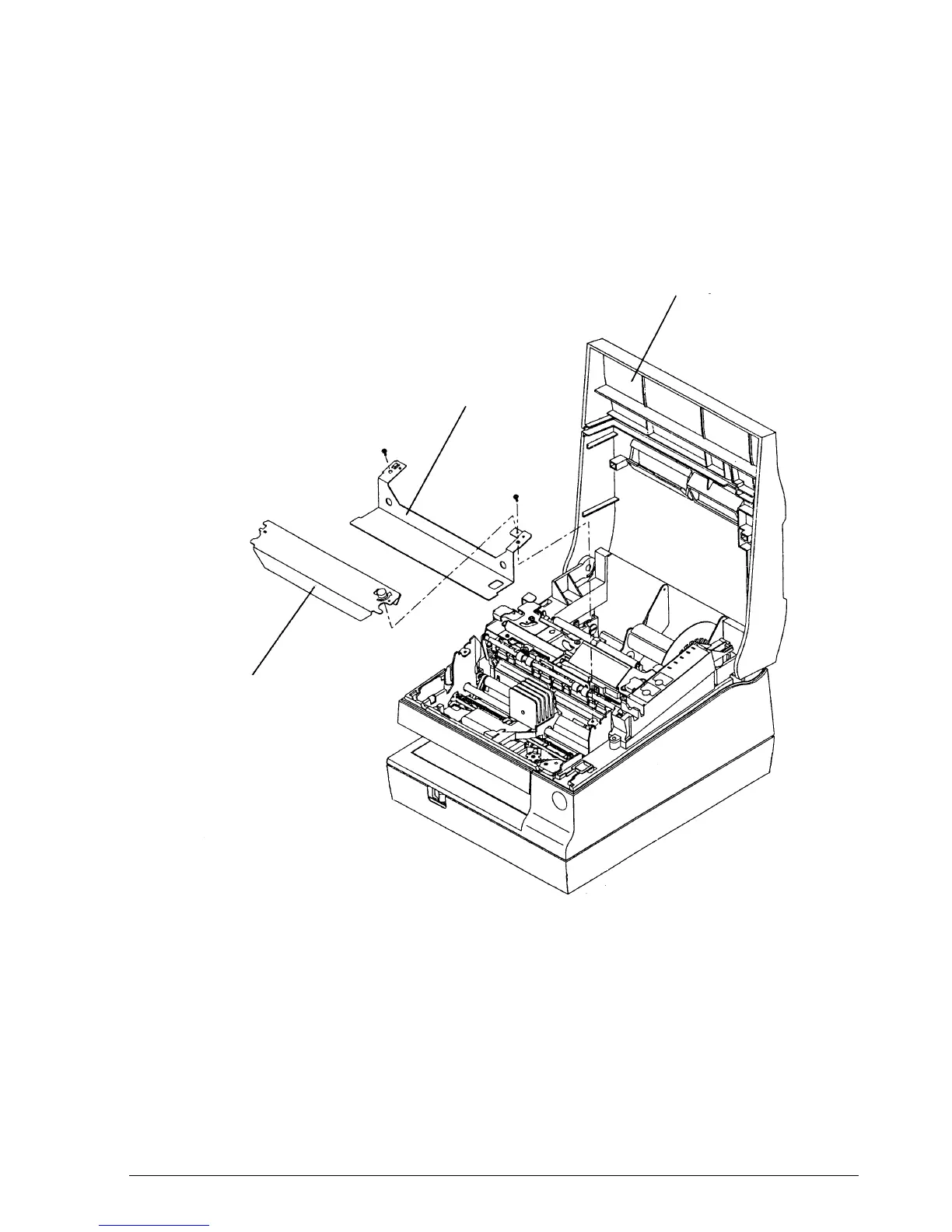

Replacing the Print Head Unit
1. Open the cover-main assembly.
2. Remove the cover-head assembly.
3. Remove the cover-carriage assembly.
Cover-main assembly
Cover-head assembly
Cover-carriage assembly
