Epson TM-U950 - Main Assembly 4: N.E. Detector-R and -J Assemblies Attachment

Rev. A Disassembly, Assembly, and Adjustments 5-73
TM-U950/U950P Technical Manual
Main Assembly 4: N.E. Detector-R and -J Assemblies Attachment

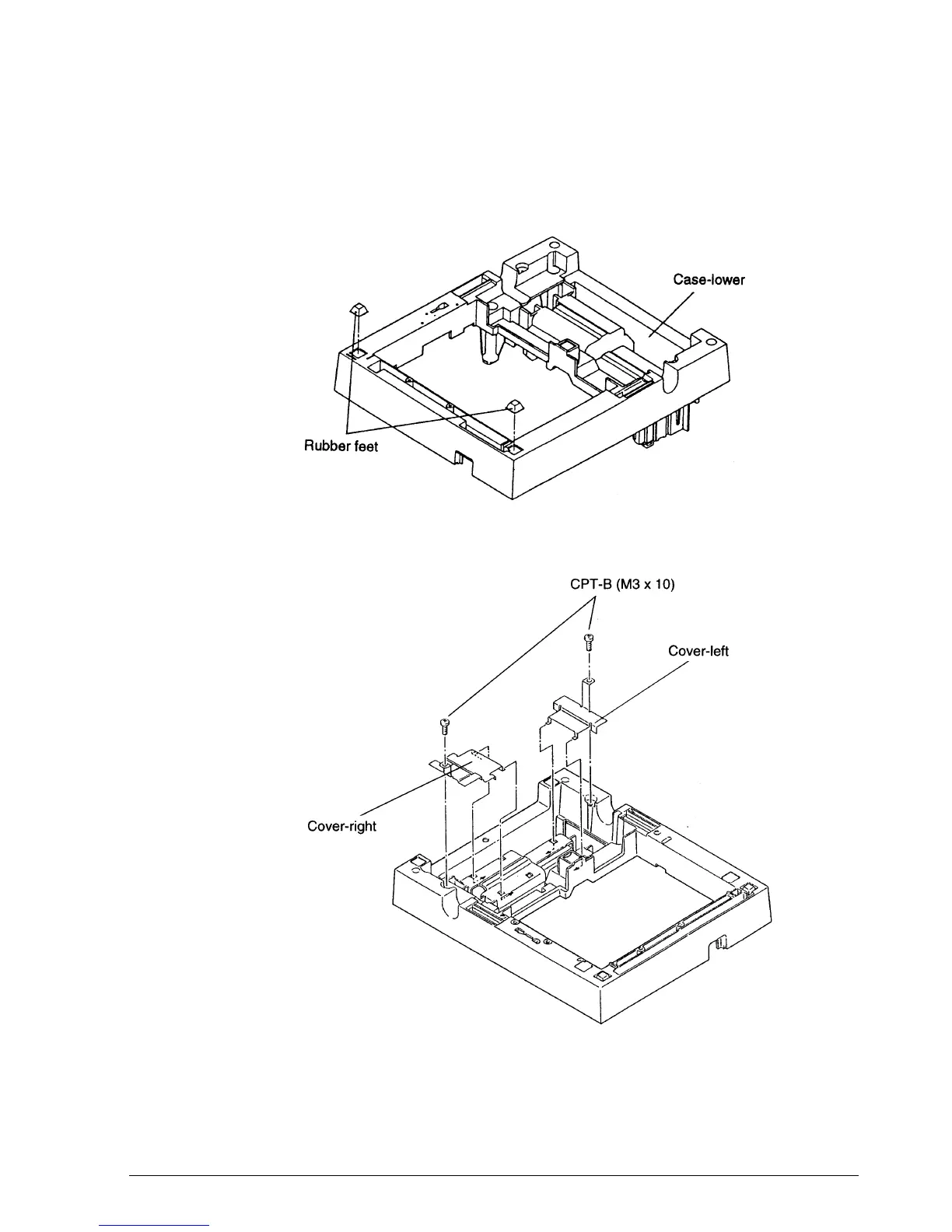

1. Turn over the case-lower, remove any dust and dirt from the rubber foot mounting
locations, and paste the feet in these locations.
2. Attach the cover-right and cover-left to the underside of the case, and secure it with screws.
