5-74 Disassembly, Assembly, and Adjustments Rev. A

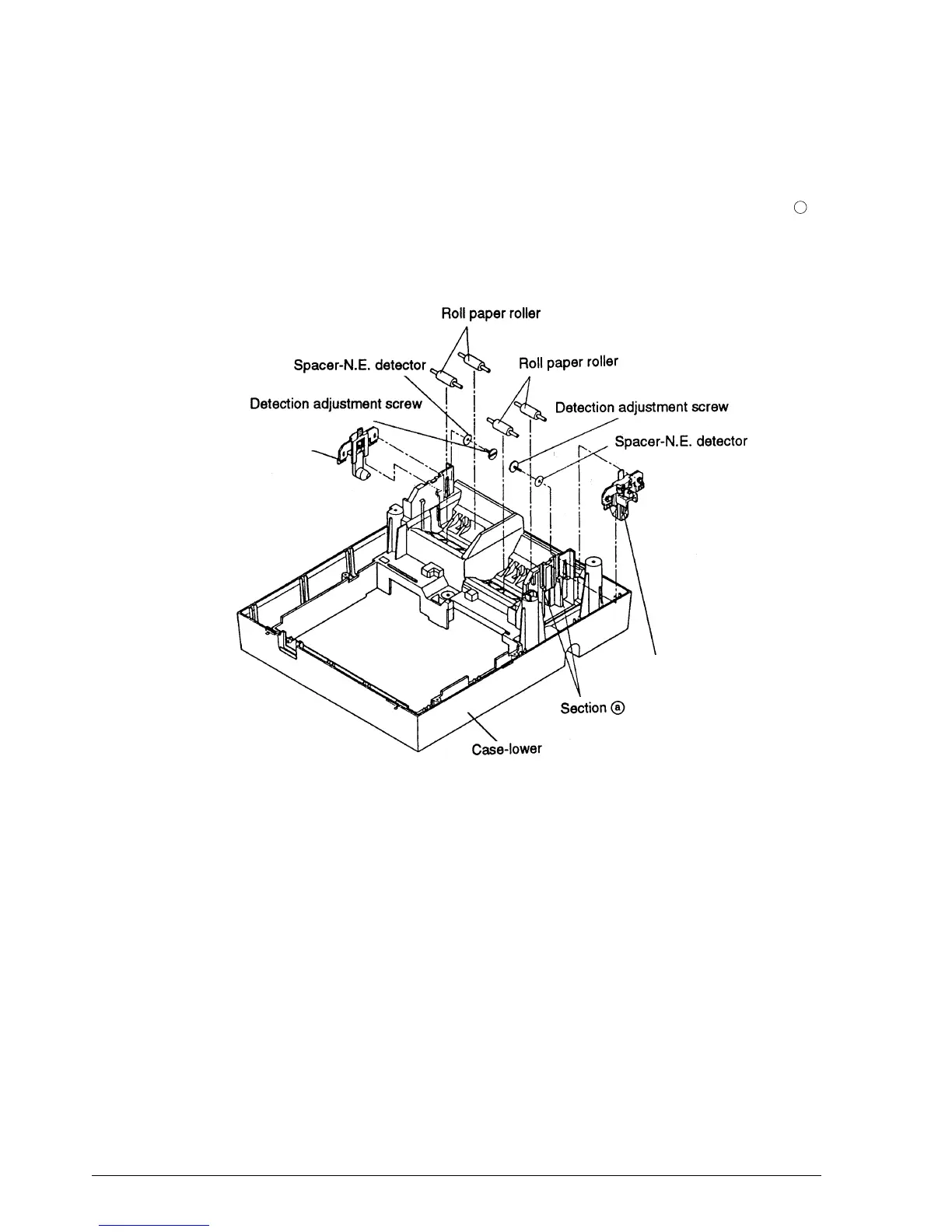

3. Attach the roll paper rollers to the case-lower.
4. Attach the spacers-N.E. detector to the detector adjustment screws.
5. Attach the N.E. detector-R assembly and -J assembly to the case-lower by sliding section ;
then secure them with the assembled detector adjustment screws.
[Adjustment] Adjust the N.E. detectors. Refer to Adjustment G at the end of this chapter.
a
N.E. detector-R assembly
N.E. detector-J assembly
