Epson TM-U950 Technical Manual

Rev. A Disassembly, Assembly, and Adjustments 5-65
TM-U950/U950P Technical Manual
Whole Unit Assembly
The assembly process is divided into sub-assembly and main assembly.
Perform the sub-assembly first to construct each unit from the parts. Then proceed to the main
assembly.
When assembling the printer, check each part and its attachment position by referring to the
exploded diagrams in Chapter 6.
For adjustments, follow the descriptions at the end of this chapter. Whenever disassembly is
performed even for just one part, check whether adjustment is necessary before assembly.
Sub-assembly
Sub-assembly A: N.E. Detector-J Assembly and N.E. Detector-R Assembly

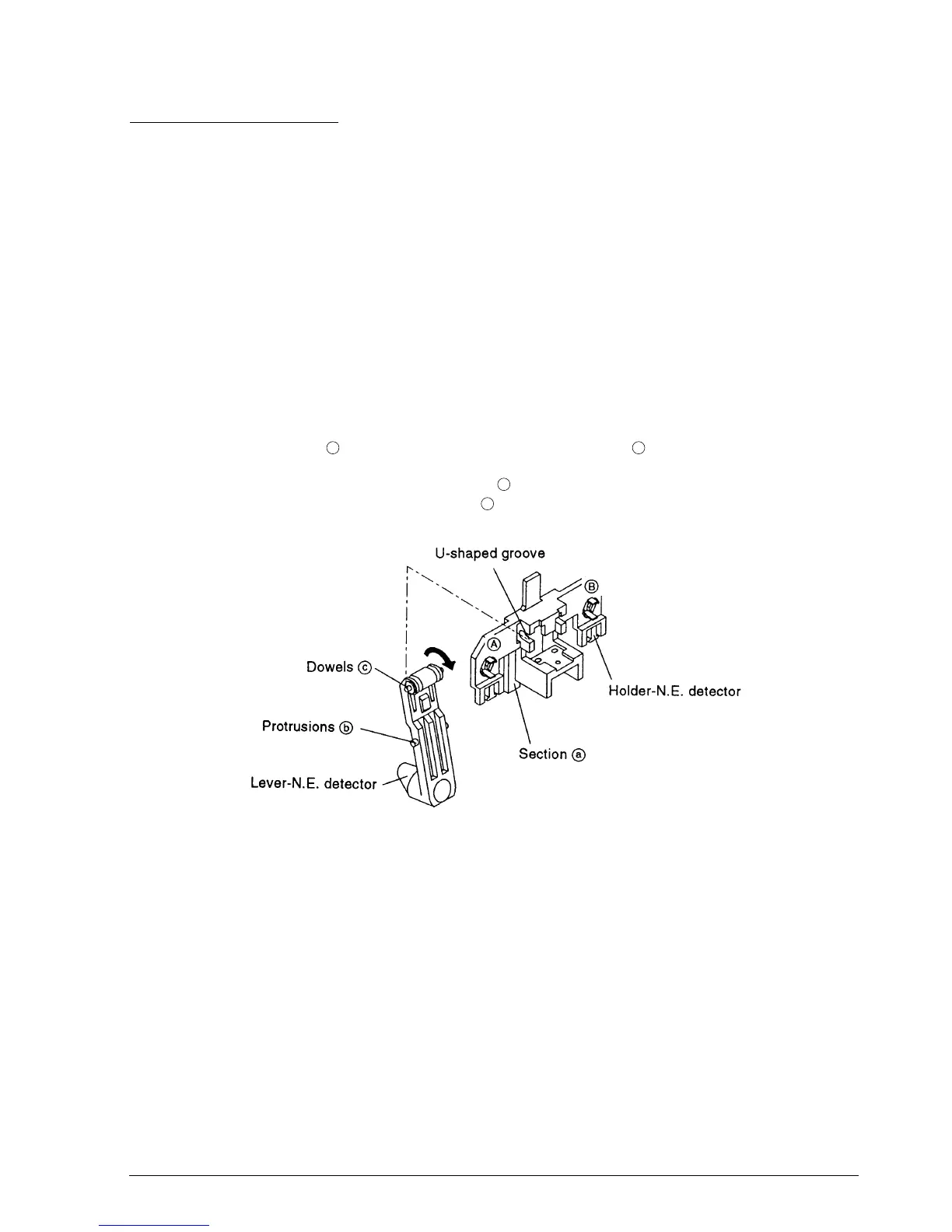

1. Place protrusions of the lever-N.E. detector onto sections of the holder-N.E. detector.
2. Align the U-shaped grooves with dowels by turning the lever-N.E. detector in the
direction of the arrow with protusions as the center.
b
a
c
a
CONFIDENTIAL

Epson TM-U950 Specifications

General

Print speed	18.6 ips
Character size	1.3 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	210 x 297 mm
Dimensions (WxDxH)	251 x 298 x 194.5 mm
Electromagnetic compatibility	VCCI, FCC, CE
Safety	UL, CSA
Country of origin	China
Mean time between failures (MTBF)	180000 h
Serial interface	Yes
Standard interfaces	RS-232C
Weight (imperial)	12.3 lbs
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2250 mm
Quantity per pallet	24 pc(s)
Quantity per pallet (UK)	36 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	425 mm
Package width	360 mm
Package height	330 mm
Package weight	7196 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	298 mm
Width	186 mm
Height	195 mm
