5-38 Disassembly, Assembly, and Adjustments Rev. A

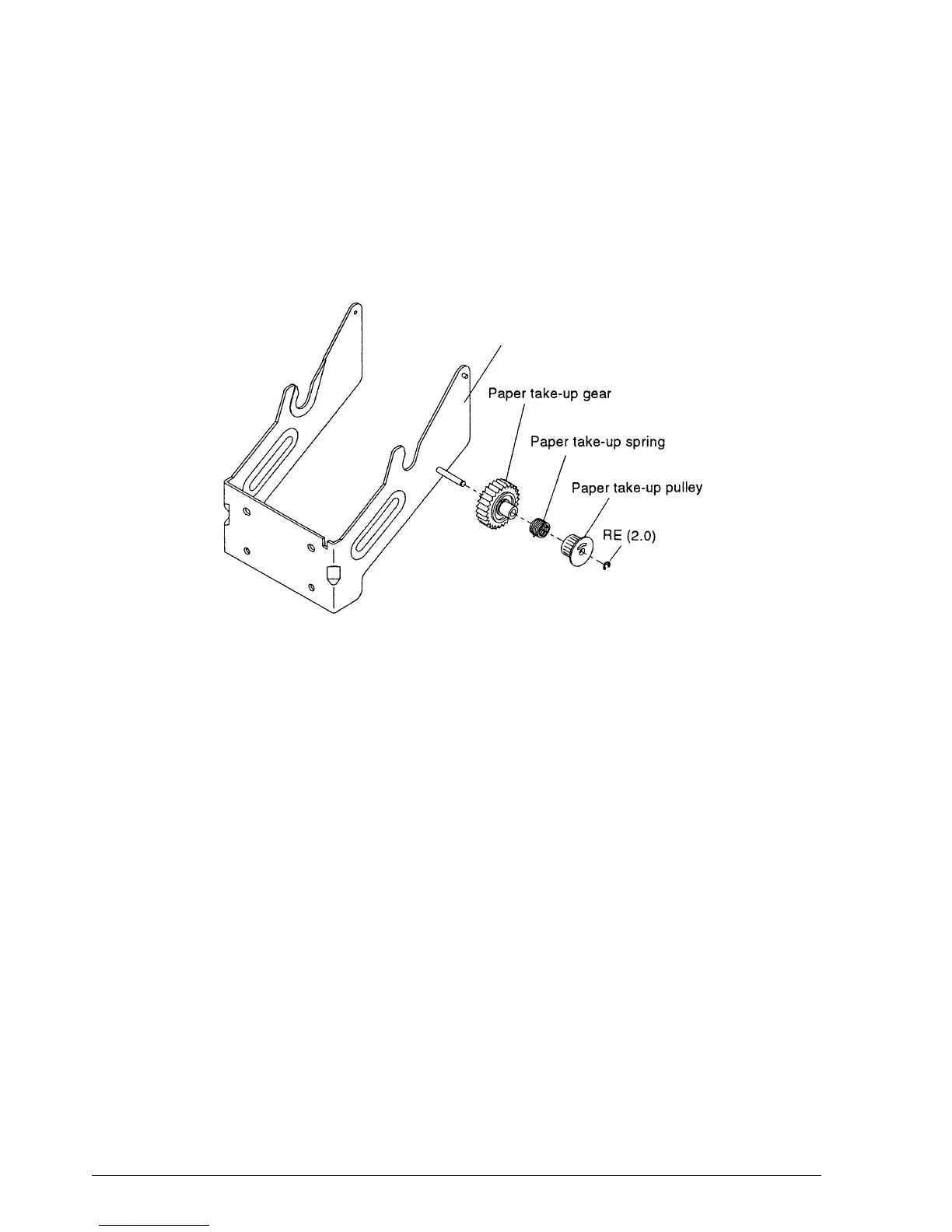

Sub-assembly Q: Frame-Paper Take-up Assembly
1.* Mount the paper take-up spring on the paper take-up gear.
2.* Attach the paper take-up pulley to the paper take-up gear.
3.* Attach the above assembly to the frame-paper take-up sub-assembly, and fasten it with
the RE.
Frame-paper take-up sub-assembly
CONFIDENTIAL
To Next Page
