Sub-assembly K: Assembling the MICR Head Holder Assembly (for printers with a
MICR reader)

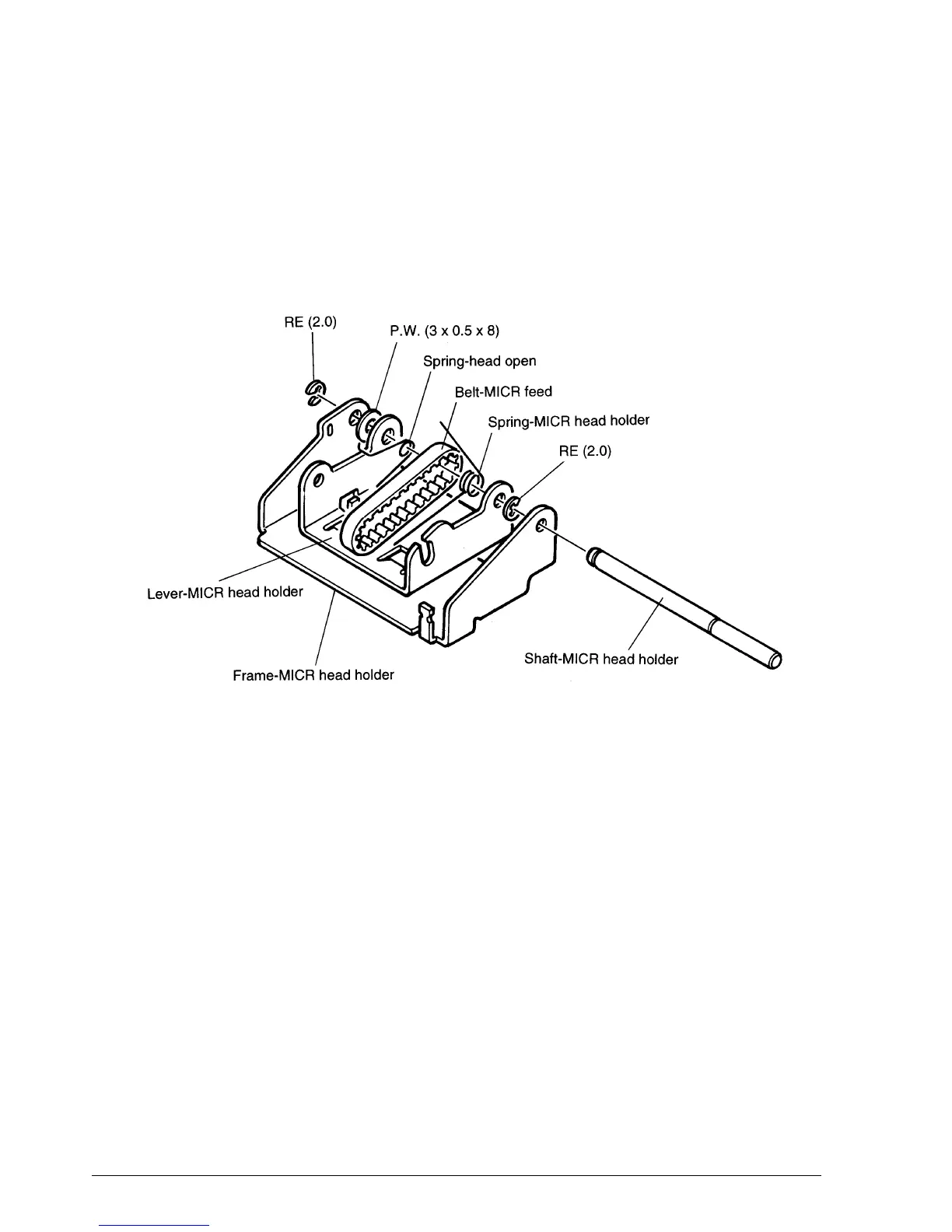

1. Pass the shaft through the MICR head holder, as shown below.
✔
Checkpoint
Make sure the spring-head open and the shaft MICR head holder are facing the correct
direction.
2. Secure the shaft-MICR head holder with the two RE fittings.
