Rev. A Disassembly, Assembly, and Adjustments 5-19
TM-U950/U950P Technical Manual
Sub-assembly K

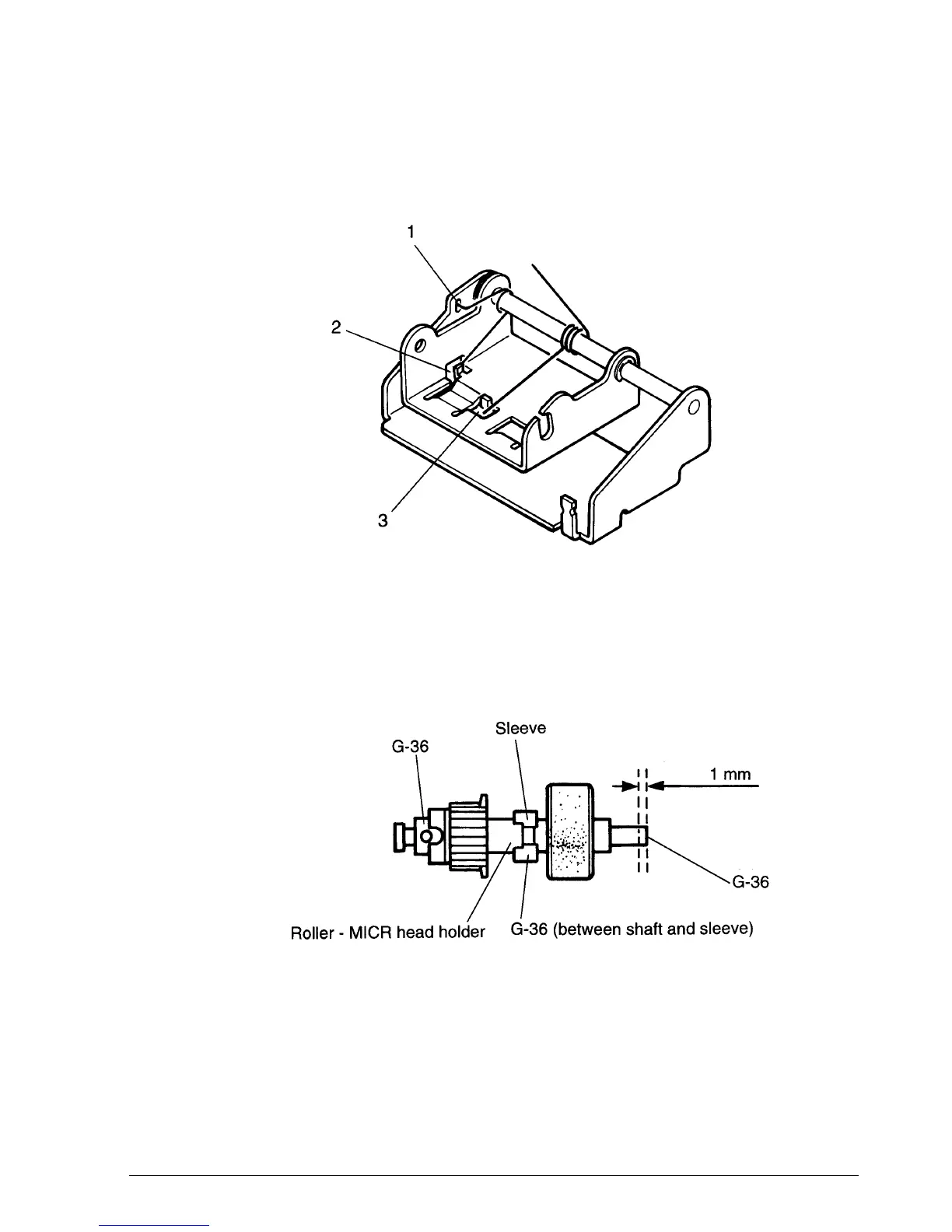

3. Fit the two springs into the three locations shown below.
4. Pass the belt-MICR feed through the roller - MICR head holder.
✔
Checkpoint
See the illustration below when lubricating the roller-MICR head holder. Be sure that the
correct grease is used.
CONFIDENTIAL
