Epson TM-U950 Technical Manual

Rev. A Features and General Specifications 1-17
TM-U950/U950P Technical Manual
MICR Reader (when the printer is used with the MICR reader)
(Not available for the TM-U950P)
Available fonts: E-13B, CMC7
Recognition rating: 98% or more (at 25
°
C)
Recognition rating is defined as follows:
Check paper used for test is EPSON standard check paper. Checks must be flat, without curls,
folds, or wrinkles.
Connectors
All connectors are located on the rear panel of the printer. (Refer to Figure 1-1.)
Connector panels
Interface
See the Interface section in this chapter.
Power supply connector
This connector is for the AC adapter.
Connector type: TCS7960-53-2010 (Hoshiden) or equivalent
Note:
Be sure to ground the printer via the frame ground terminal on the metal strip on the rear panel.
Table 1-4. Power Supply Pin Assignment
Pin number Function
1 24 VDC
2 Signal ground
3NC
Shell Frame ground
Recognition rating (%) =
Total number of checks - (number of sheets misread
Total number of checks
× 100
and those not identified)
1
14 25
13
1
6
1
2
3
1
8
Customer display
(DM-D) connector
Interface 
connector
Drawer kick-
out connector
Power
connector

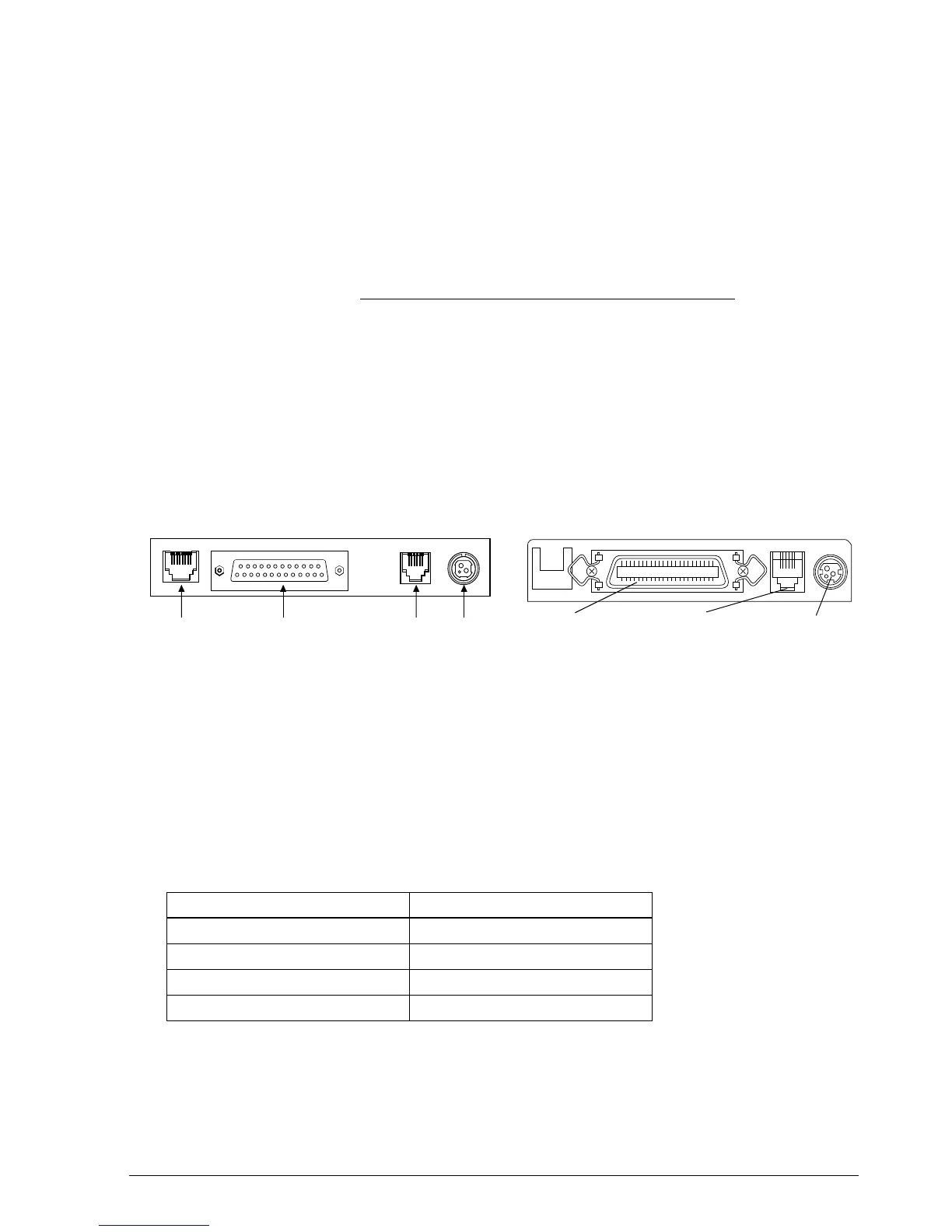

Figure 1-14. Rear Panel Connectors
TM-U950PTM-U950
Interface connector Drawer kickout Power connector
connector
CONFIDENTIAL

Epson TM-U950 Specifications

General

Print speed	18.6 ips
Character size	1.3 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	210 x 297 mm
Dimensions (WxDxH)	251 x 298 x 194.5 mm
Electromagnetic compatibility	VCCI, FCC, CE
Safety	UL, CSA
Country of origin	China
Mean time between failures (MTBF)	180000 h
Serial interface	Yes
Standard interfaces	RS-232C
Weight (imperial)	12.3 lbs
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2250 mm
Quantity per pallet	24 pc(s)
Quantity per pallet (UK)	36 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	425 mm
Package width	360 mm
Package height	330 mm
Package weight	7196 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	298 mm
Width	186 mm
Height	195 mm
