Epson TM-U950 Technical Manual

Rev. A Disassembly, Assembly, and Adjustments 5-17
TM-U950/U950P Technical Manual

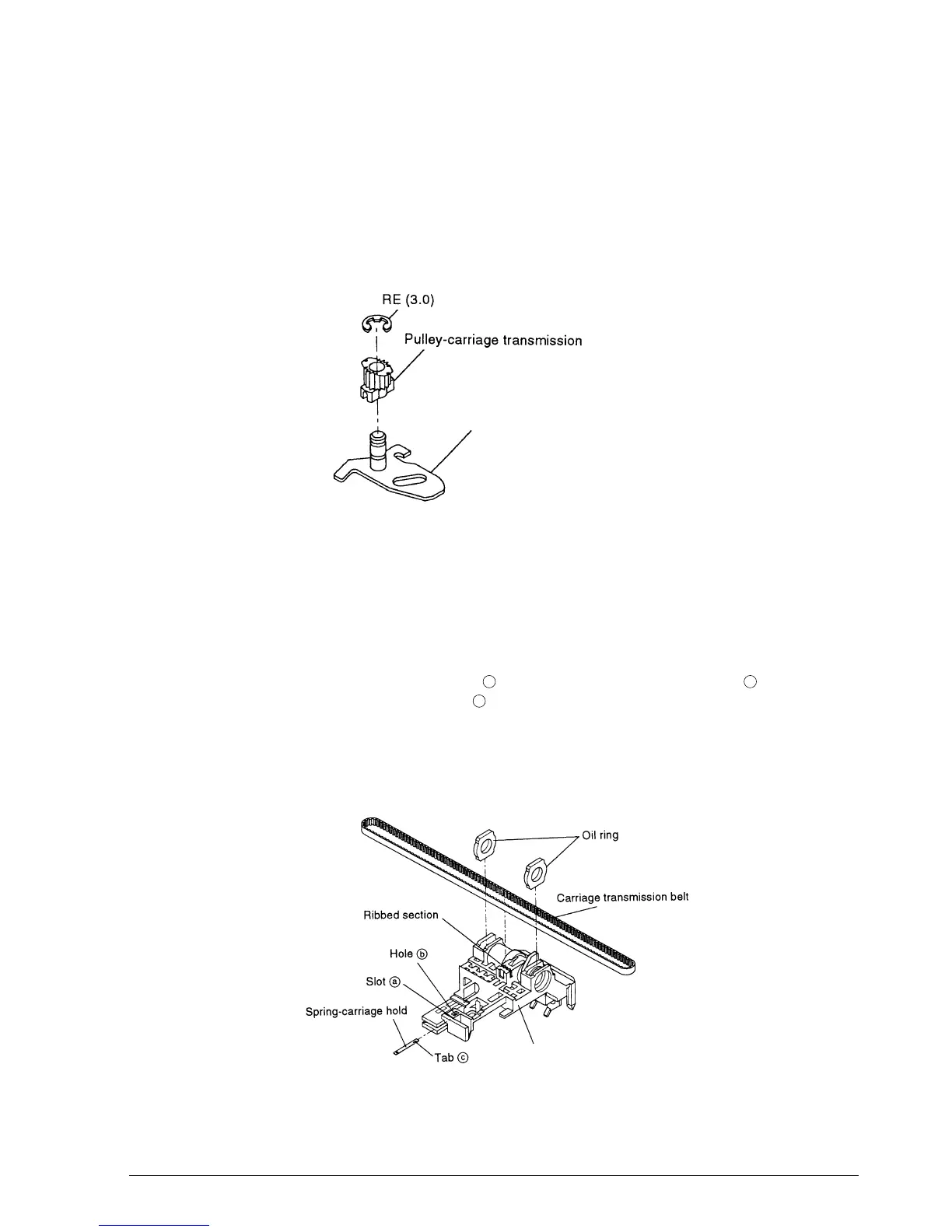

Sub-assembly I: Pulley Base-Carriage Transmission Assembly
1.* Mount the pully-carriage transmission to the pulley base-carriage transmission sub-
assembly and fasten it with the RE.
✔
Checkpoint
Make sure to mount the pulley-carriage transmission with the correct orientation.
Sub-assembly J: Carriage-Head Assembly
1.* Mount the oil rings on the carriage-head sub-assembly
2. Align the ribbed section of the carriage transmission belt with the ribbed section on the
carriage-head and mount the belt.
3. Insert the spring-carriage hold into slot of the carriage-head, depress tab with
tweezers by inserting the tip into hole , and then push the spring to insert it to the end so
that it is fixed.
✔
Checkpoint
Make sure to mount the belt with correct orientation.
Pulley base-carriage transmission sub-assembly
a c
b
Carriage-head sub-assembly
CONFIDENTIAL

Epson TM-U950 Specifications

General

Print speed	18.6 ips
Character size	1.3 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	210 x 297 mm
Dimensions (WxDxH)	251 x 298 x 194.5 mm
Electromagnetic compatibility	VCCI, FCC, CE
Safety	UL, CSA
Country of origin	China
Mean time between failures (MTBF)	180000 h
Serial interface	Yes
Standard interfaces	RS-232C
Weight (imperial)	12.3 lbs
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2250 mm
Quantity per pallet	24 pc(s)
Quantity per pallet (UK)	36 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	425 mm
Package width	360 mm
Package height	330 mm
Package weight	7196 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	298 mm
Width	186 mm
Height	195 mm
