Epson TM-U950 Technical Manual

5-40 Disassembly, Assembly, and Adjustments Rev. A
Main Assembly (Part 1)

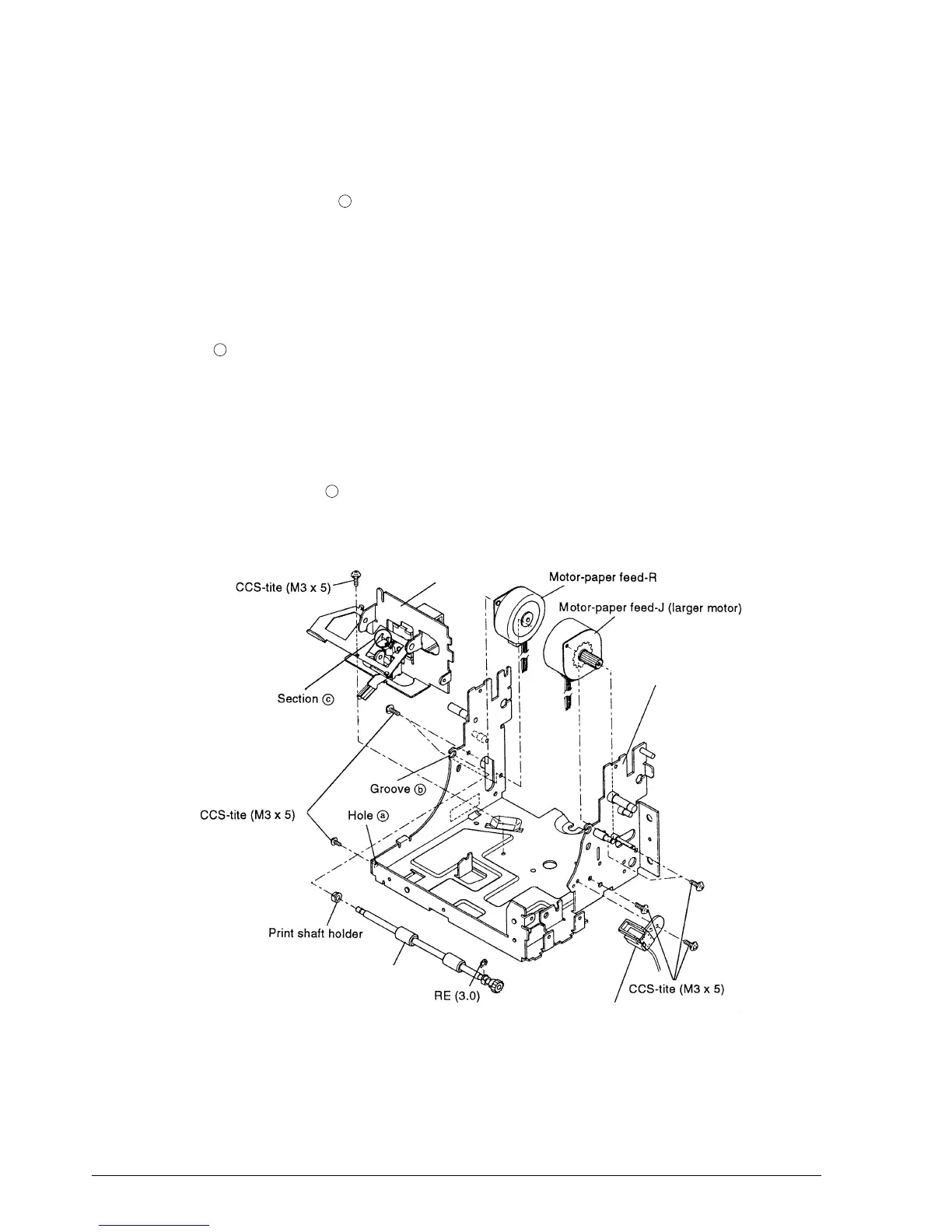

Main Assembly 1-1: Frame-Main Unit Assembly
1.* Mount the screw in hole .
2. Attach the frame-inner assembly and secure it with the screw.
3. Mount the motor-paper feed-J (larger motor) and motor-paper feed-R and secure them with
the screws.
4.* Insert the print shaft holder (shaft holder-slip feed roller for printers with a MICR reader) in
groove , mount the roller-slip paper feed assembly on the holder, and fasten it with the
RE.
5. Mount the detector-slip paper insertion assembly and fasten it with the screw.
✔
Checkpoints
Make sure not to mix up the paper feed motors.
Make sure that section on the frame-inner is properly seated. (For the details see the
Checkpoint on page 5-35.)
a
b
c
Detector-slip paper insertion assembly
Roller-slip paper feed assembly
Frame-main assembly
Frame-inner assembly
(shaft holder-slip feed roller)
CONFIDENTIAL

Epson TM-U950 Specifications

General

Print speed	18.6 ips
Character size	1.3 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	210 x 297 mm
Dimensions (WxDxH)	251 x 298 x 194.5 mm
Electromagnetic compatibility	VCCI, FCC, CE
Safety	UL, CSA
Country of origin	China
Mean time between failures (MTBF)	180000 h
Serial interface	Yes
Standard interfaces	RS-232C
Weight (imperial)	12.3 lbs
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2250 mm
Quantity per pallet	24 pc(s)
Quantity per pallet (UK)	36 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	425 mm
Package width	360 mm
Package height	330 mm
Package weight	7196 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	298 mm
Width	186 mm
Height	195 mm
