5-4 Disassembly, Assembly, and Adjustments Rev. A

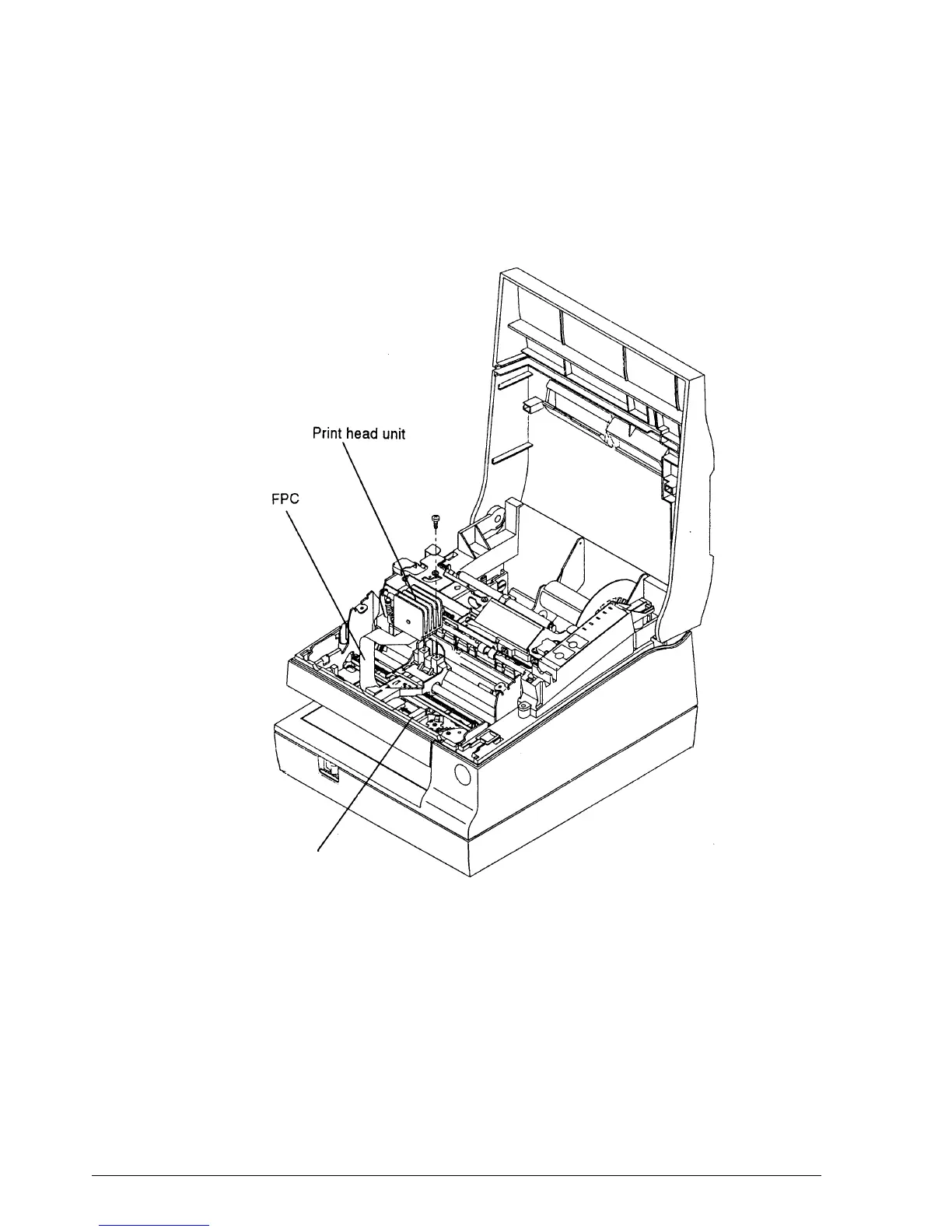

4. Remove the screw from the print head unit.
5. Disconnect the FPC from the connector on the board-head relay assembly.
[Adjustment] After replacing the print head unit, adjust the print head and platen gap as described in
Adjustment F in this chapter.
Board-head relay assembly
