5-26 Disassembly, Assembly, and Adjustments Rev. A
Sub-assembly L-(1)
18. Assemble all cables at section .

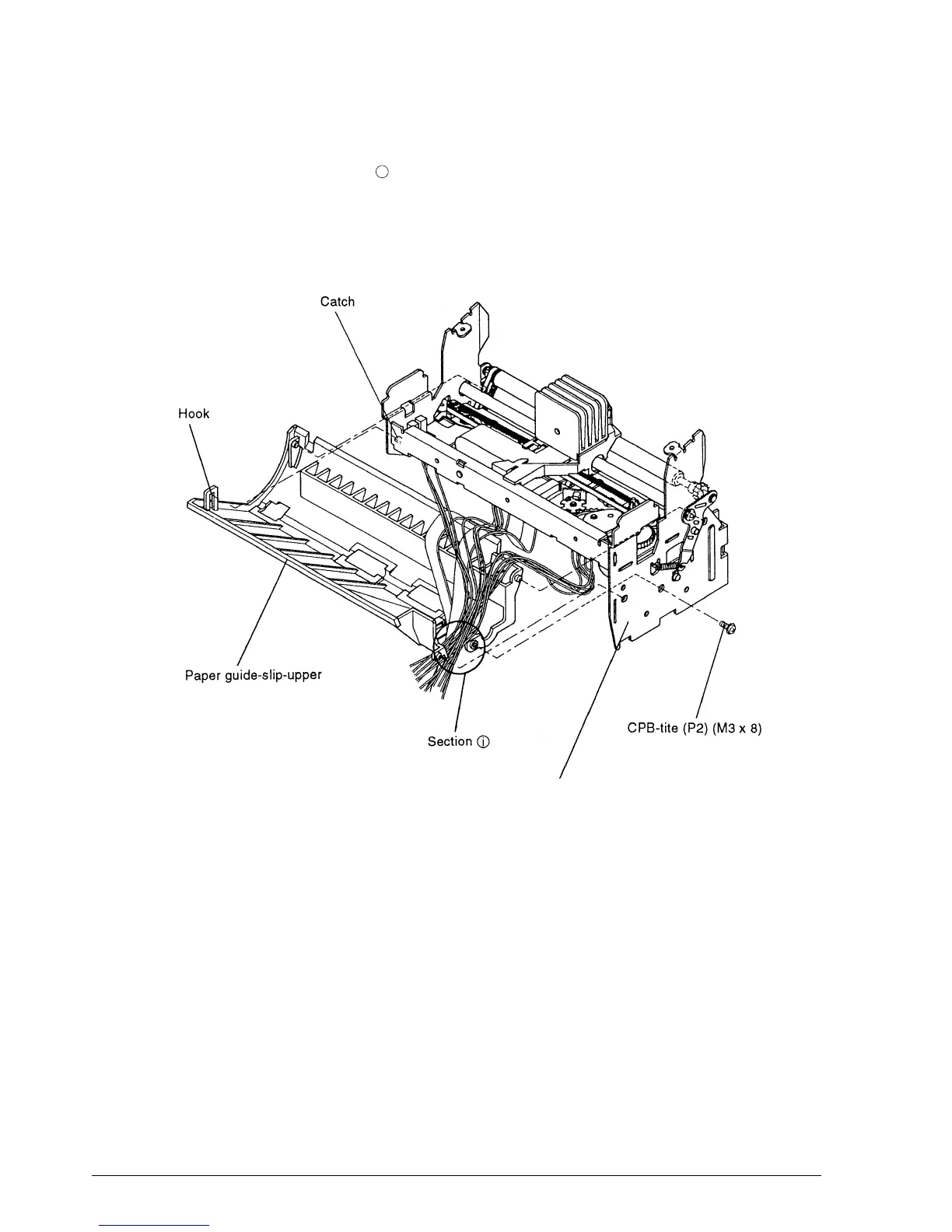

19. Mount the paper guide-slip-upper on the frame-carriage assembly so that the three dowels
match the respective dowel holes, and the hook is engaged in the catch. Then tighten the
screw.
j
Frame-carriage assembly
